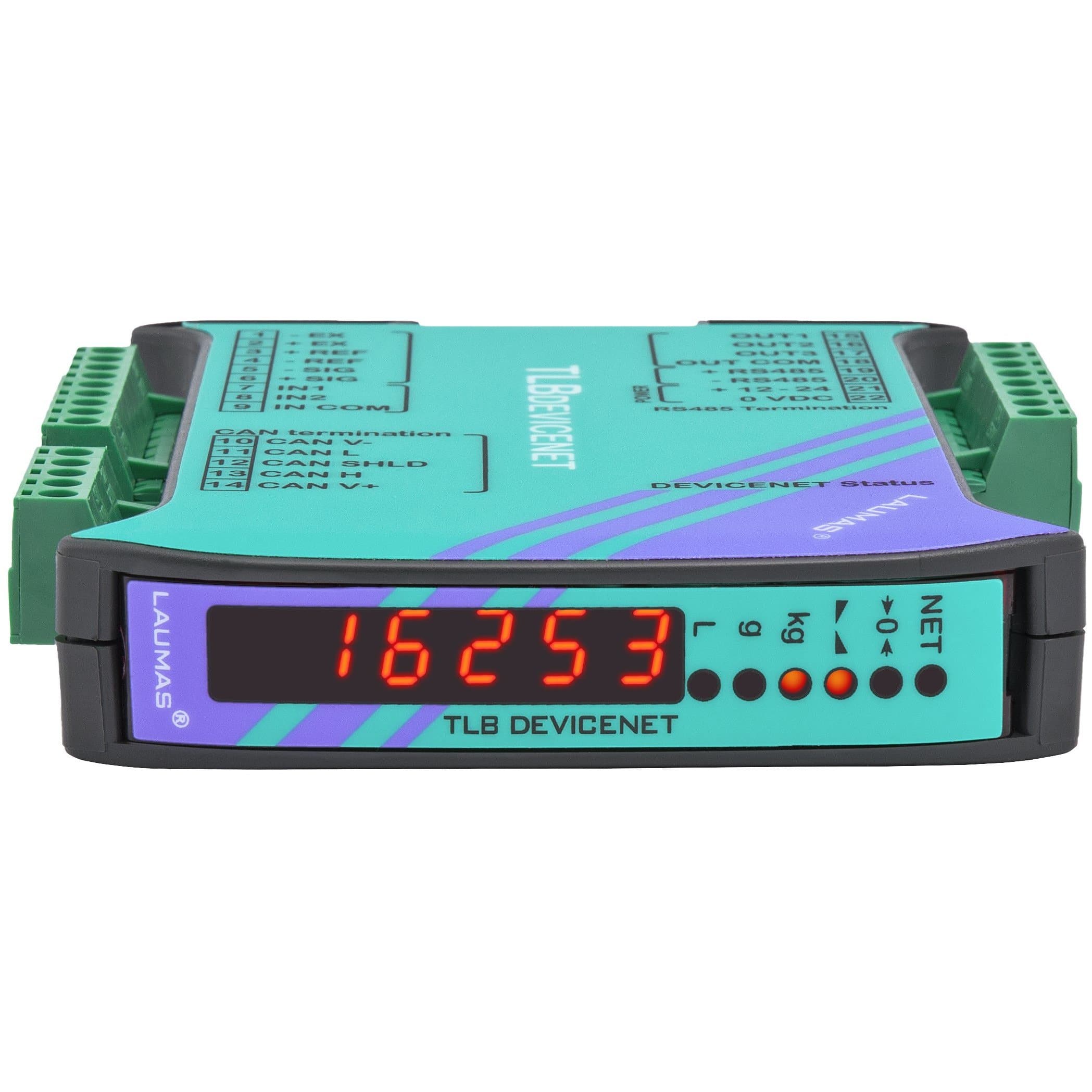

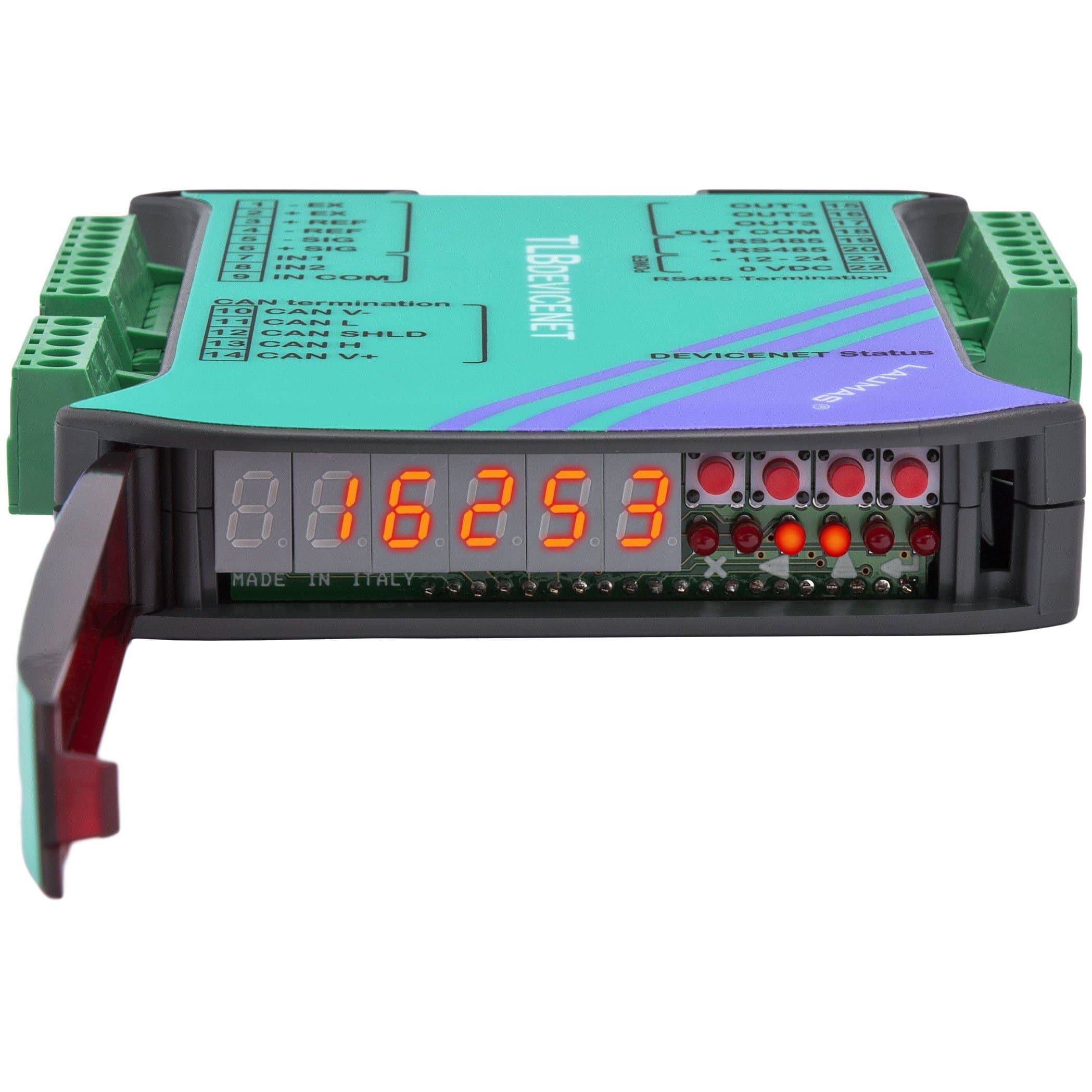

The TLB DeviceNet has a space saving, compact design. Four buttons behind the front panel are used to alter the system calibration and settings. Dimensions: 26 x 115 x 120 mm.
Click here for full specification
- DeviceNet port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
