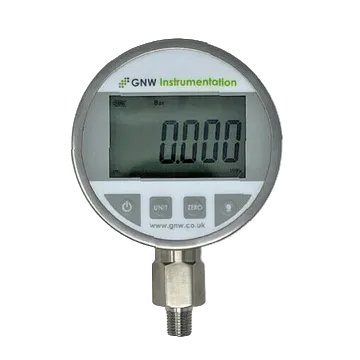

GNW200-C 100mm Digital Compound Pressure Gauge

The GNW200-C is a 100 mm digital compound pressure gauge designed to measure both vacuum and positive pressure within one selected measuring range. Available versions include -1 to +1 bar, -1 to +2 bar, -1 to +5 bar and -1 to +10 bar.

The compound range makes the gauge suitable for compatible systems that operate on either side of atmospheric pressure. A large 5-digit LCD provides clear numerical indication, while the ±0.4% full-scale accuracy supports maintenance, commissioning and pressure testing work.

The gauge features a bottom-entry 1/2-inch BSP process connection, with a 304 stainless steel case, bezel and wetted parts. Select the range that covers both the lowest vacuum and highest positive pressure expected within the system.

Each GNW200-C digital compound pressure gauge is supplied with a traceable calibration certificate as standard.

Range: -1 to +1 bar

Range
Sale price£176.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Size
100 mm
Case
304 Stainless Steel
Bezel
304 Stainless Steel
Wetted Parts
304 Stainless Steel
Display
5 Digit LCD
Sampling Frequency
3 Hz
Power Supply
3 x AA Batteries
Accuracy
0.4% FS
Connection Size
1/2" BSP
Connection Orientation
Bottom Entry

Learn more

Applications

Vacuum & Pressure Measurement

Measures both vacuum and positive pressure, making it ideal for commissioning, troubleshooting and process monitoring applications.

Commissioning & Maintenance

Allows engineers to monitor both vacuum and positive pressure conditions during system commissioning and fault finding.

Service & Troubleshooting

Helps service engineers diagnose faults by displaying both vacuum and pressure conditions within a single instrument.

Systems Operating Across Vacuum and Positive Pressure

Suitable for compatible systems that transition between vacuum and positive pressure, allowing both conditions to be monitored using one selected compound-range gauge.

Features

Compound Pressure Range Options

Available in selected compound ranges from -1 to +1 bar through to -1 to +10 bar for systems operating below and above atmospheric pressure.

Vacuum and Positive Pressure Indication

Each selected range allows both vacuum and positive pressure conditions to be observed using one digital instrument.

±0.4% Full-Scale Accuracy

Provides an accuracy of ±0.4% FS across the selected compound measuring range.

100 mm Stainless Steel Gauge

Combines a 100 mm case and 5-digit LCD with a 304 stainless steel case, bezel and wetted parts.
