GNW260-HP 63mm High Pressure Digital Gauge

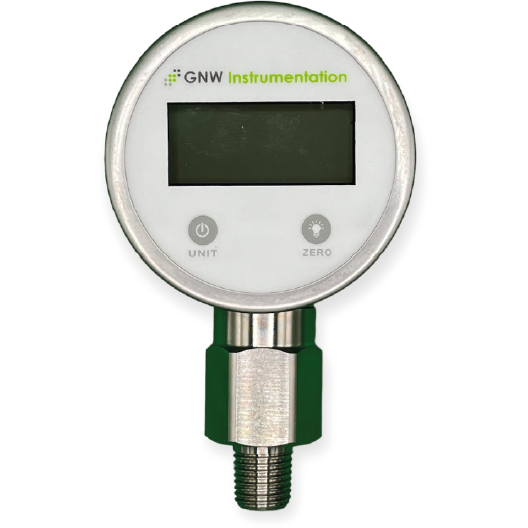

The GNW260-HP is a compact 63 mm digital pressure gauge designed for high-pressure measurement on compatible hydraulic systems, machinery and test equipment. Available ranges include 0 to 60 bar, 0 to 100 bar, 0 to 150 bar, 0 to 200 bar, 0 to 400 bar and 0 to 700 bar.

The gauge provides an accuracy of ±1.0% of full scale and uses a bottom-entry 1/4-inch BSP process connection. Its case, bezel and wetted parts are manufactured from 304 stainless steel.

Select a pressure range that exceeds the highest pressure expected during operation, including anticipated pressure variation or short-duration peaks.

Confirm the selected range, connection specification and material compatibility before installation, particularly when the gauge will be used on high-pressure hydraulic equipment.

Range: 0 - 60 bar

Thread Size: 1/4" BSP

Calibration Certificate: No

Quantity:

£89.00

GNW Instrumentation GNW260-HP 63mm High Pressure Digital Gauge

£89.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Size

63 mm

Case

304 Stainless Steel

Bezel

304 Stainless Steel

Wetted Parts

304 Stainless Steel

Display

4 Digit LCD

Sampling Frequency

2 Hz

Power Supply

2 x AAA Batteries

Accuracy

1.0% FS

Connection Size

1/4" BSP

Connection Orientation

Bottom Entry

Learn more

Applications

High Pressure Hydraulic Systems

Provides local digital pressure indication on compatible high-pressure hydraulic systems across the available 60 to 700 bar measuring ranges.

Hydraulic Power Unit Checks

Suitable for checking pressure at compatible test points on hydraulic power units, pumps and associated equipment during setup, operation and servicing.

High Pressure Testing

Supports pressure testing and verification tasks where the selected measuring range, ±1.0% full-scale accuracy and connection specification are suitable.

Hydraulic Maintenance and Diagnostics

Helps technicians inspect high-pressure performance, identify unexpected pressure changes and compare readings across suitable parts of a hydraulic system.

Features

High-Pressure Range Options

Available in selected measuring ranges from 0 to 60 bar through to 0 to 700 bar for compatible high-pressure systems.

Compact 63 mm Format

Combines a compact case size with clear digital indication for installations where space and readability are important.

±1.0% Full-Scale Accuracy

Provides ±1.0% FS accuracy for high-pressure monitoring, hydraulic maintenance and general pressure testing applications.

304 Stainless Steel Components

Features a 304 stainless steel case, bezel and wetted parts, together with a bottom-entry 1/4-inch BSP process connection.

FAQs

Which pressure ranges are available for the GNW260-HP?

The GNW260-HP is available in ranges of 0 to 60 bar, 0 to 100 bar, 0 to 150 bar, 0 to 200 bar, 0 to 400 bar and 0 to 700 bar.

How should I select the GNW260-HP pressure range?

Select a range that exceeds the highest pressure expected during operation and provides suitable allowance for pressure variation or anticipated peaks.

What accuracy and connection does the GNW260-HP provide?

The GNW260-HP provides ±1.0% full-scale accuracy and has a bottom-entry 1/4-inch BSP process connection.

Can the GNW260-HP be ordered with a calibration certificate?

Yes. A calibration certificate is available as an optional product variant when ordering.
