Kern HFA Crane Scales
103200
Kern HFA Crane Scales
103200
Compact, Certified & Heavy Duty
The KERN HFA series crane scales are compact, high-precision instruments designed for industrial lifting and weighing applications up to 10,000 kg. Certified to EN 13155 and EN 61010-1 standards, these rugged units double as tensile force gauges and are ideal for loading, unloading, and integration into space-constrained systems.
With a robust construction (aluminium or steel depending on capacity), the HFA models feature a large backlit LCD display, internal rechargeable battery, and convenient hold functions. The compact dimensions make them perfect for mobile use or fixed installation.
Key Features
- High Accuracy: ±0.2% of full scale with 60 Hz internal measuring frequency
- Certified Safety: TÜV-approved to EN 13155 and EN 61010-1 standards
- Durable Build: Aluminium with stainless steel bushings (≤3 t), steel construction for higher capacities
- Rechargeable & Optional Battery: Up to 30 hours operation with integrated rechargeable battery or AA batteries
- Peak Hold Function: Captures maximum load values; display hold for easy reading
- Multiple Units: Switch between kg, lb, and N
- Versatile Use: Suitable for both overhead lifting and tensile testing applications
Model Comparison

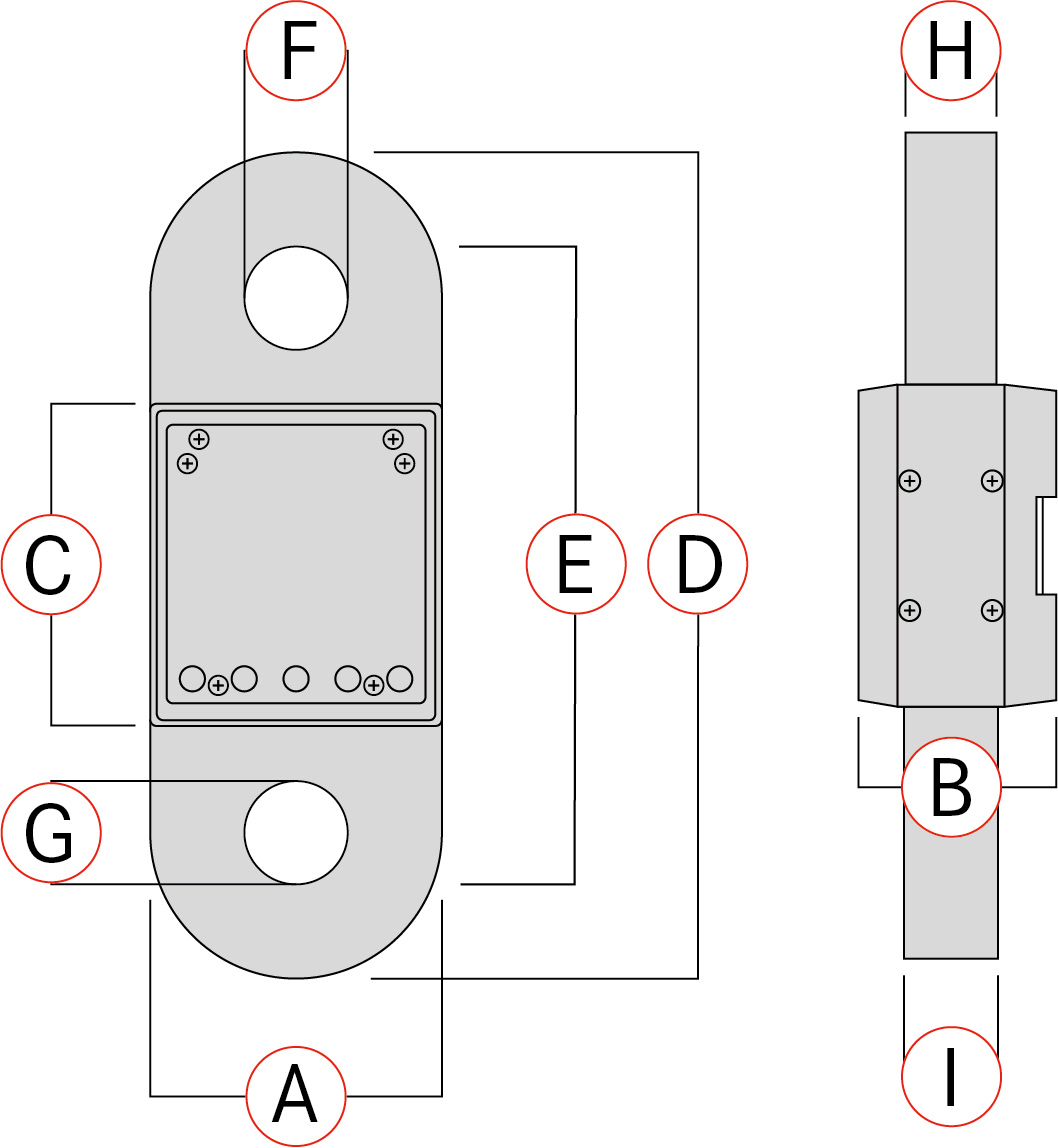

| Model | Capacity (kg) | Readability (g) | Net Weight (kg) | Dimensions (mm) [A × B × C] |
|---|---|---|---|---|
| HFA 600K-1 | 600 | 200 | 1.8 | 90 × 62 × 100 |
| HFA 1T-4 | 1000 | 500 | 1.8 | 90 × 62 × 100 |
| HFA 3T-3 | 3000 | 1000 | 2.0 | 90 × 62 × 100 |
| HFA 5T-3 | 5000 | 2000 | 4.0 | 90 × 62 × 100 |
| HFA 10T-3 | 10000 | 5000 | 6.0 | 90 × 72 × 100 |
Additional Information

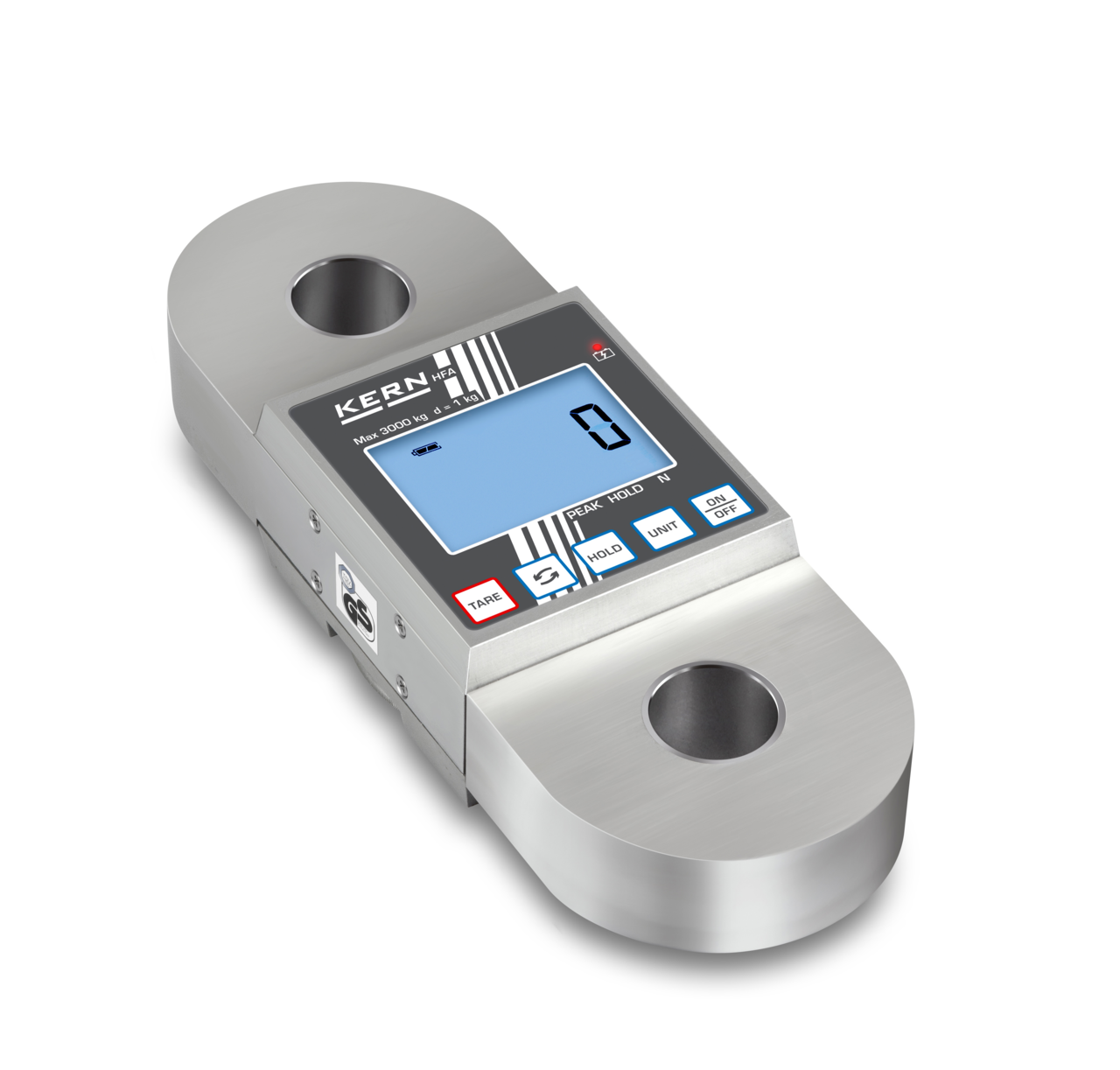

- Display: Large backlit LCD, 23 mm digit height
- Operating Temperature: 5 °C to 35 °C
- Power: Integrated rechargeable battery (up to 30 hrs); optional 3 × AA batteries
- Hold Function: Locks the reading for convenient viewing
- Peak Load Detection: Records the maximum force during a measurement session
