Kern HFC Crane Scales
135200
Kern HFC Crane Scales
135200
Up to 10,000kg • 0.2% Accuracy • Wireless Handheld Display
Compact and Certified Crane Scale for Industrial Heavy Lifting

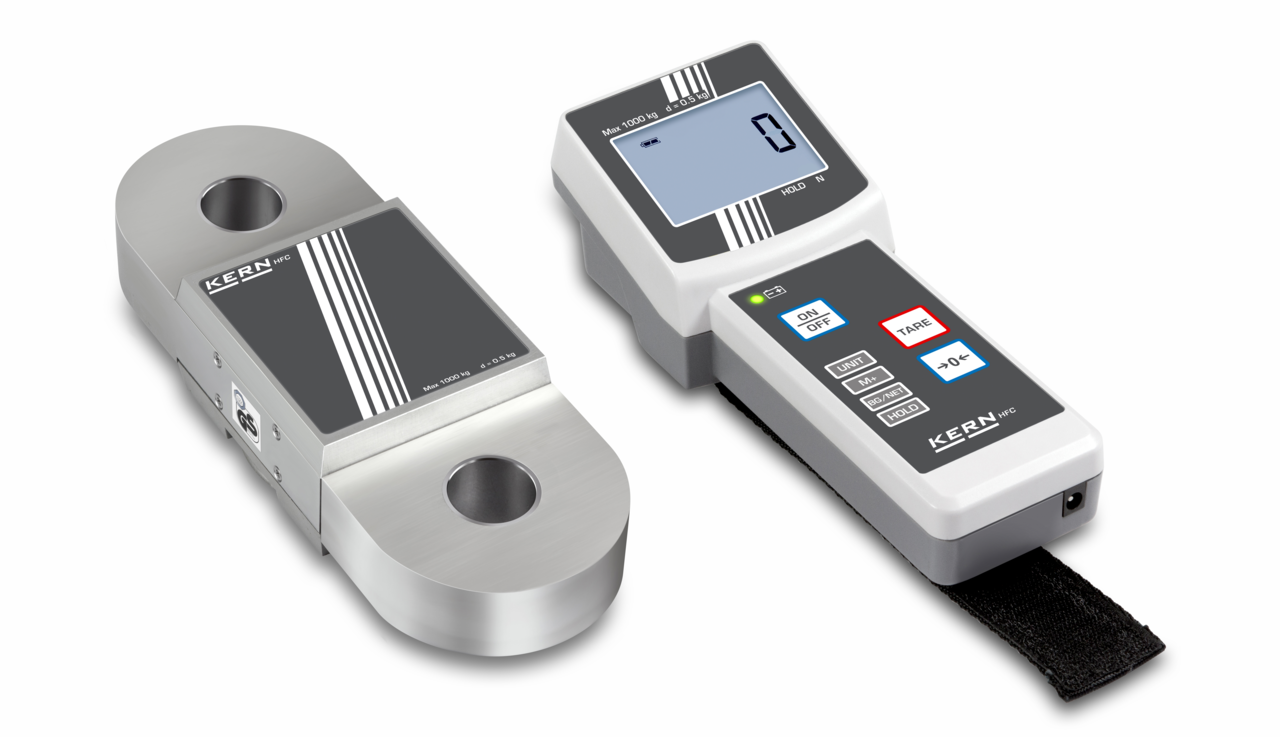

The Kern HFC Crane Scales offer a rugged and space-efficient solution for suspended load weighing in challenging environments. These TÜV-certified crane scales are designed for high precision and safety, with a compact build and a convenient wireless handheld terminal for clear, remote readings even under poor lighting or from a distance.
Ideal for industrial and warehouse operations, the HFC series supports weighing capacities up to 10,000 kg, and includes features such as tare, peak hold, and a robust aluminium or steel load structure depending on model capacity.
Key Features
- High Accuracy: Precision within 0.2% of full scale for reliable weight readings
- Remote Display: Wireless handheld terminal with 20m range and backlit LCD (23mm digits)
- Durable Construction: Models up to 3T use aluminium housing; 5T+ models use steel
- Power Supply: Internal rechargeable battery (30–35h runtime) and optional AA battery use
- Hold & Tare Functions: Freeze the display or zero out containers with a button press
- Safety Compliance: Conforms to EN 13155 and EN 61010-1 standards for load and electrical safety
Model Comparison

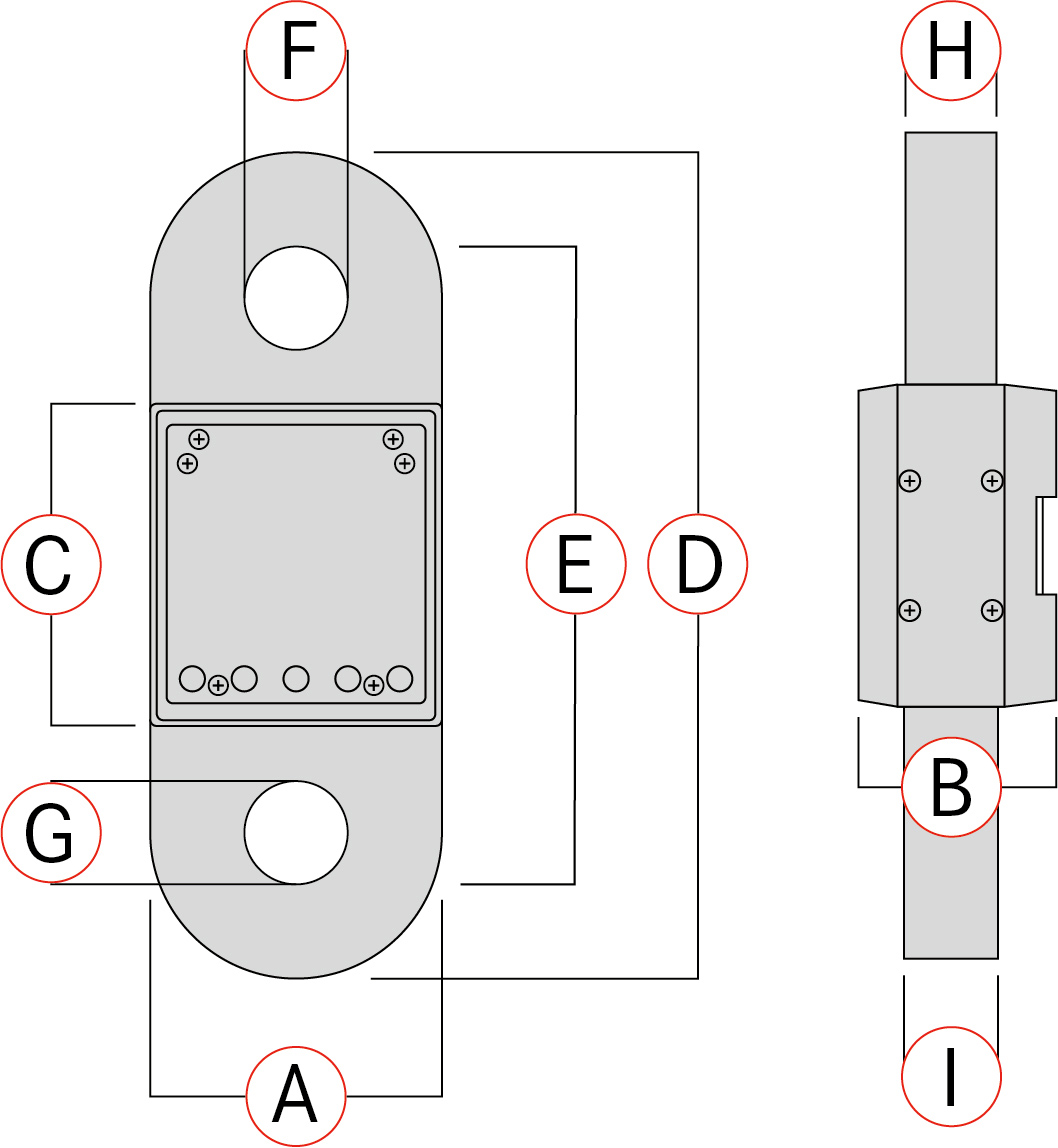

| Model | Max Capacity (kg) | Readability (g) | Net Weight (kg) | Dimensions (mm) (A–I) |
|---|---|---|---|---|
| HFC 600K-1 | 600 | 200 | 1.8 | 90, 62, 100, 255, 165, 27, 27, 30, 30 |
| HFC 1T-4 | 1000 | 500 | 1.8 | 90, 62, 100, 255, 165, 27, 27, 30, 30 |
| HFC 3T-3 | 3000 | 1000 | 2.2 | 90, 62, 100, 255, 165, 27, 27, 30, 30 |
| HFC 5T-3 | 5000 | 2000 | 4.0 | 90, 62, 100, 255, 165, 30, 30, 30, 30 |
| HFC 10T-3 | 10000 | 5000 | 6.0 | 90, 72, 100, 275, 185, 40, 40, 40, 40 |
Additional Information
- Weighing Units: kg, lb, N
- Operating Temperature: 5 °C to 35 °C
- Internal Frequency: 10 Hz measurement cycle

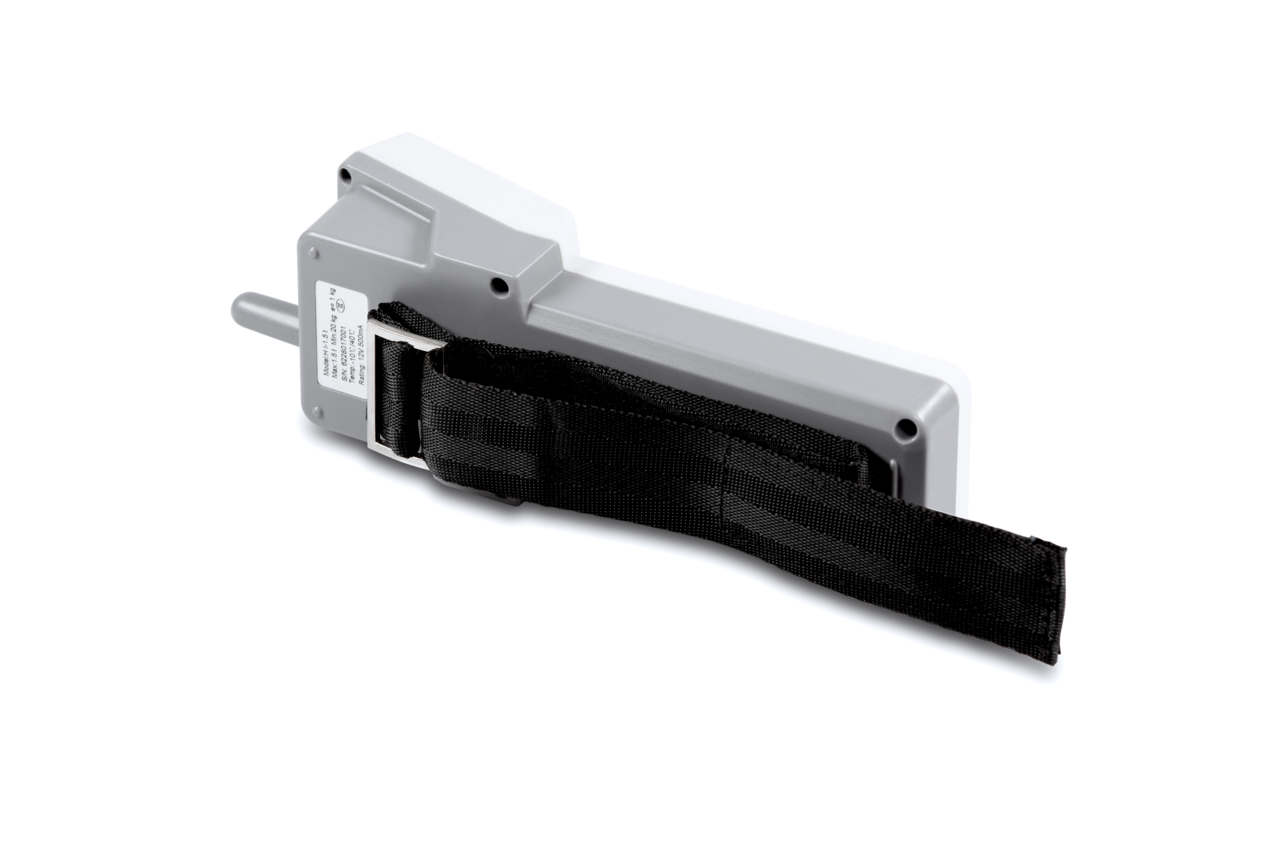

- Handheld Terminal: 88×64×256 mm, includes hand strap and radio module
