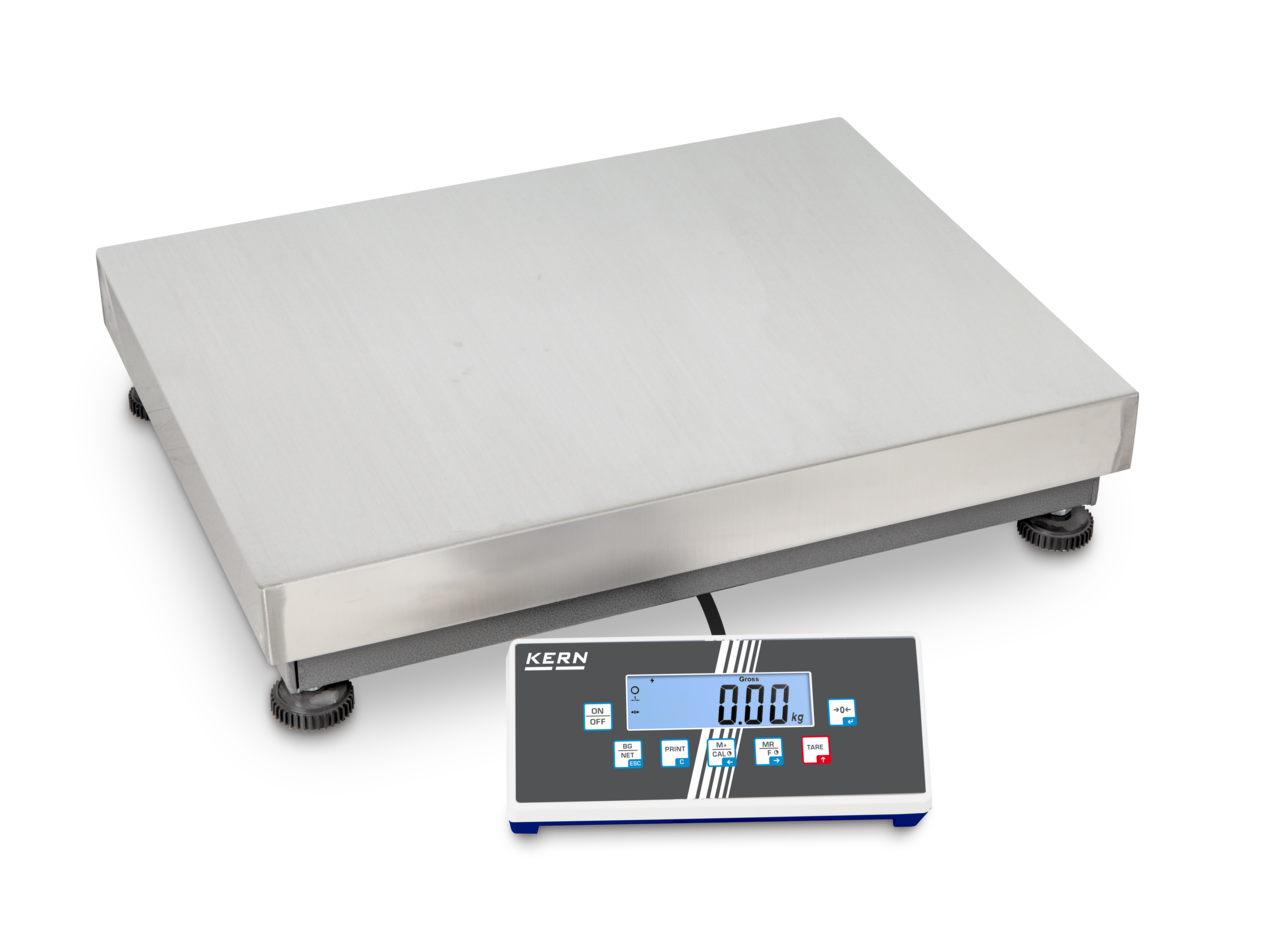

Kern IOC platform scale with capacities from 3 kg to 600 kg. The Kern IOC platform scale available with optional calibration certificate and other accessories such as printers, software and communications. This great all-round platform scale is M Class verified for trade use.
- Industry 4.0: A wide range of (optional) data interfaces means that it is easy to transfer weighing data to tablets, laptops, PCs, networks, Smartphones, printers, etc.
- High mobility: thanks to rechargeable battery operation (optional), compact, lightweight construction, it is suitable for the use in several locations (laboratory, production, quality control, commissioning etc.)
- Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
- Platform: stainless steel weighing plate, Painted steel base, silicone-coated aluminium load cell, protection against dust and water splashes IP65
- Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol. Only possible through data interface RS-232, other interfaces on request
- NEW: from now on the calibrated models can be operated with an optional data interface, such as Bluetooth, WiFi, LAN (optional alibi memory required). This enables convenient data transfer of weighing results in legal-for-trade applications
- Possible application scenarios for interfaces:
- RS-232, included in the scope of delivery, e.g. for connecting a PC or printer
- LAN, WiFi, Bluetooth, USB for PC, optional, e.g. for connecting a PC or peripheral device
- USB for USB stick, optional, e.g. for exporting alibi data to a USB stick or hard disk
- Digital I/O, including signal lamp, optional, e.g. for optical support during weighing with tolerance range, piece counting etc.
Click here for accessories
Model |
Weighing capacity |
Readability |
Weighing plate |
|
[Max] |
[d] |
mm |
|
|
|
(WxD | Dia) |
IOC 100K-2LM |
60 kg | 150 kg |
20 g | 50 g |
650 mm x 500 mm |
IOC 100K-2M |
60 kg | 150 kg |
20 g | 50 g |
500 mm x 400 mm |
IOC 10K-3LM |
6 kg | 15 kg |
2 g | 5 g |
400 mm x 300 mm |
IOC 10K-3M |
6 kg | 15 kg |
2 g | 5 g |
300 mm x 240 mm |
IOC 300K-2M |
150 kg | 300 kg |
50 g | 100 g |
650 mm x 500 mm |
IOC 30K-3M |
15 kg | 30 kg |
5 g | 10 g |
400 mm x 300 mm |
IOC 600K-1M |
300 kg | 600 kg |
100 g | 200 g |
800 mm x 600 mm |
IOC 60K-2LM |
30 kg | 60 kg |
10 g | 20 g |
500 mm x 400 mm |
IOC 60K-2M |
30 kg | 60 kg |
10 g | 20 g |
400 mm x 300 mm |
IOC 6K-3M |
3 kg | 6 kg |
1 g | 2 g |
300 mm x 300 mm |
Standard
![Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-calext.png)
![Data interface RS-232: To connect the balance to a printer, PC or network Data interface RS-232: To connect the balance to a printer, PC or network](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-pc-rs232.png)
![GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-pc-glp-printer.png)
![](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/picto-pc-kcp-protocol.png)
![Piece counting: Reference quantities selectable. Display can be switched from piece to weight. Piece counting: Reference quantities selectable. Display can be switched from piece to weight.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-pcs.png)
![Totalising level A: The weights of similar items can be added together and the total can be printed out. Totalising level A: The weights of similar items can be added together and the total can be printed out.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-sum-a.png)
![Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams. Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-percentage.png)
![Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning. Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-tol-optisch-akustisch.png)
![Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained. Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-average-animal.png)
![IP 65 protection in accordance with DIN EN 60529:
Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof. IP 65 protection in accordance with DIN EN 60529:
Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-ip65.png)
![Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-adapter-multi-b.png)
![Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-ws-straingauge.png)
![Verification possible. The time required for verification is specified in the pictogram. Verification possible. The time required for verification is specified in the pictogram.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictov-cert-veri3.png)
Optional
![USB data interface: To connect the balance to a printer, PC or other peripherals. USB data interface: To connect the balance to a printer, PC or other peripherals.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-pc-usb.png)
![Rechargeable battery pack: rechargeable set Rechargeable battery pack: rechargeable set](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-accu.png)
![](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/picto-pc-bluetooth_4_0.png)
![WIFI data interface: To transfer data from the balance to a printer, PC or other peripherals. WIFI data interface: To transfer data from the balance to a printer, PC or other peripherals.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/picto-pc-wifi.png)
![Network interface: For connecting the scale to an Ethernet network. With KERN products you can use a universal RS-232/LAN converter. Network interface: For connecting the scale to an Ethernet network. With KERN products you can use a universal RS-232/LAN converter.](https://www.kern-sohn.com/cosmoshop/default/pix/picto/pictos/pictos-pc-lan.png)
