Versatile IP67 Weighing Beams for Mobile or Heavy-Duty Use

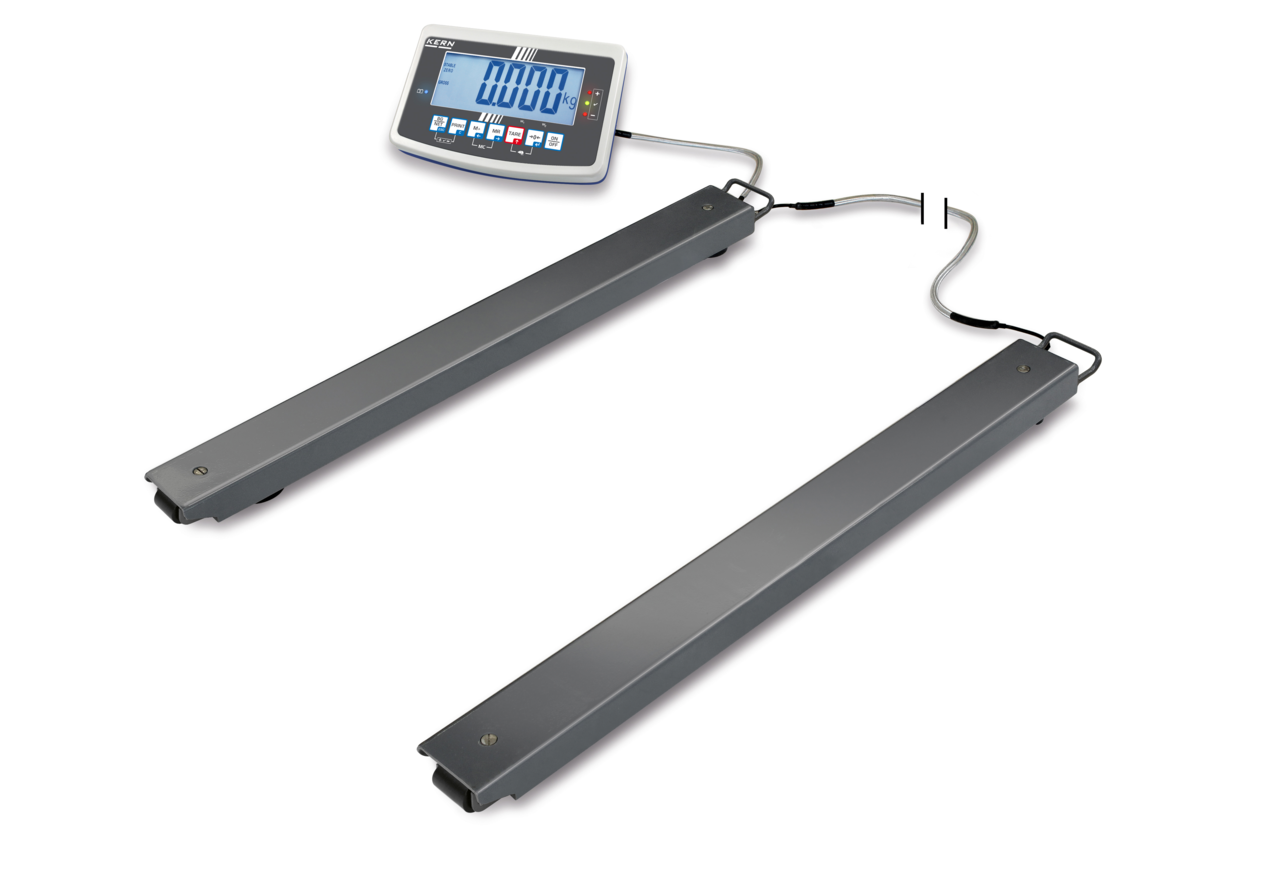

The KERN UFA Series Weighing Beams are a flexible and robust weighing solution for large, bulky, or long items. With weighing capacities up to 6,000 kg and IP67 protection, these beams are ideal for warehouses, farms, factories, and mobile use. Their freely positionable design, lightweight build, and up to 35-hour battery operation (optional) make them perfect for use across multiple locations.

Each set includes a durable display with 52 mm digits, wall/bench mount, and 5 m connection cable. Optional features such as Bluetooth, signal lamps, and analogue output ensure adaptability to any workflow or process control system.

Key Features

• Flexible Layout: Freely positionable beams allow weighing of awkward or oversized loads
• High Protection: IP67 steel beams with four silicone-coated aluminium load cells

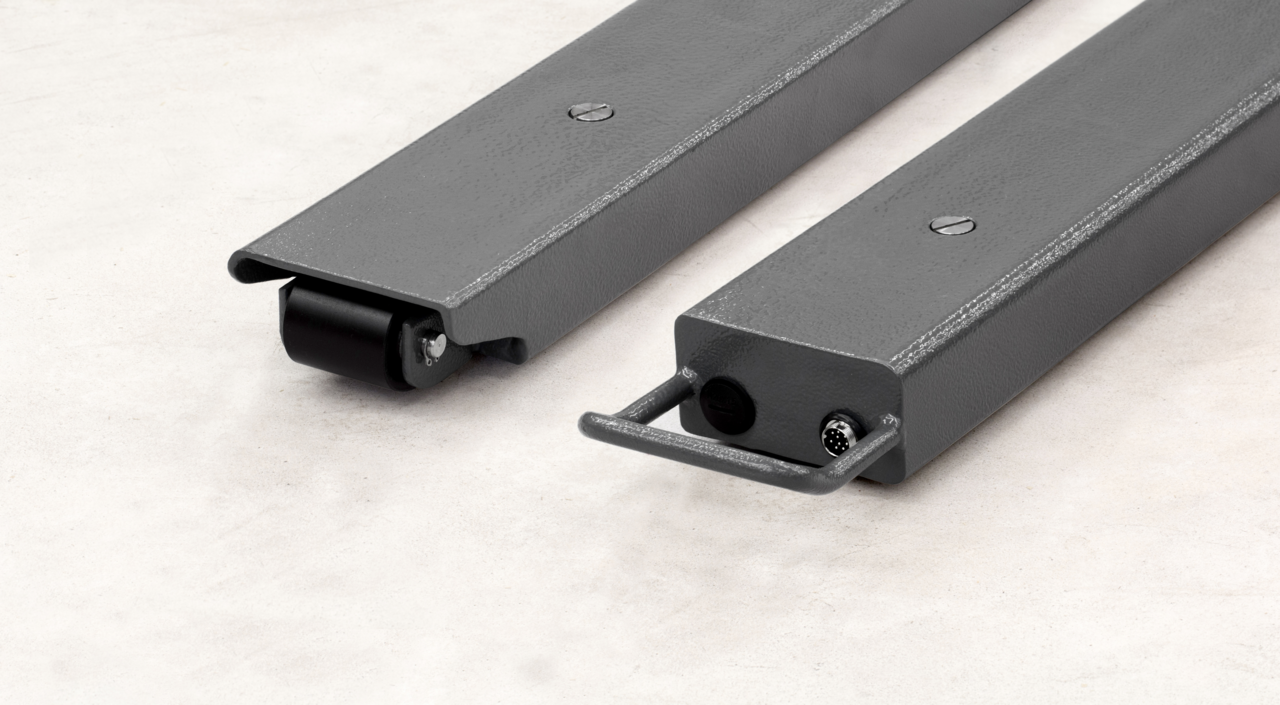

• Mobility Built-In: Models include handles or rollers for easy relocation
• Optional Battery Operation: Rechargeable battery pack enables up to 35 hours of cable-free use
• High Visibility: Large LCD display with 52 mm digits and benchtop/wall mount included
• Expandable Connectivity: Options include Bluetooth, analogue output, large displays, and signal lamps

Model Comparison

Additional Information

• Display Device: LCD with 52 mm digits, 5 m cable, 250 × 160 × 65 mm housing
• Construction: Painted steel beams with IP67 rating and internal transport handles or rollers
• Operating Temperature: -10 °C to +40 °C
• Functions: Totalising, piece counting, optional signal lamps for visual tolerance control
• Battery Option: Rechargeable pack with 35 h runtime (optional)
