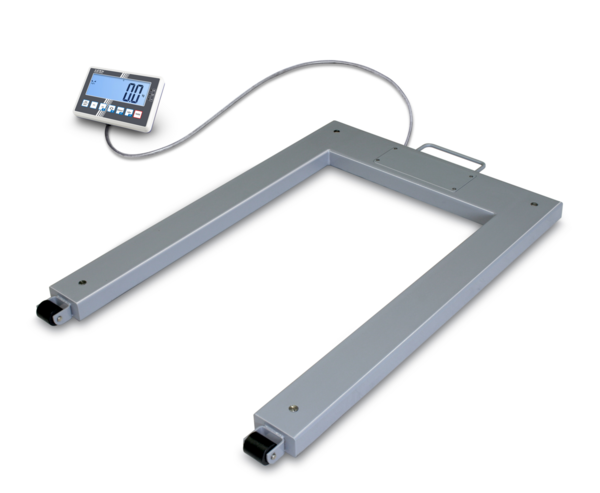

Kern UFC floor scales with capacities from 600 kg to 1500 kg. Kern UFC floor scales are in a pallet weighing form with steel load support rated to IP67 and an IP65 stainless steel display. The scales are M Class approved for trade use. They are available with an optional calibration certificate and a range of accessories.

  • High mobility: thanks to rechargeable battery operation (optional), compact, lightweight construction, it is suitable for the use in several locations
  • Load support: steel, powder coated, 4 silicone-coated steel load cells, protection against dust and water splashes IP67.
  • Two wheels for easy transportation of the scale
  • Weighing with tolerance range (checkweighing): A visual and audible signal assists with portion division, dispensing or grading or the rapid checking of items on palettes
  • Totalising of weights and piece counts

  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Limited tare range with verifiable models (1/6 from [Max])
  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment
Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)

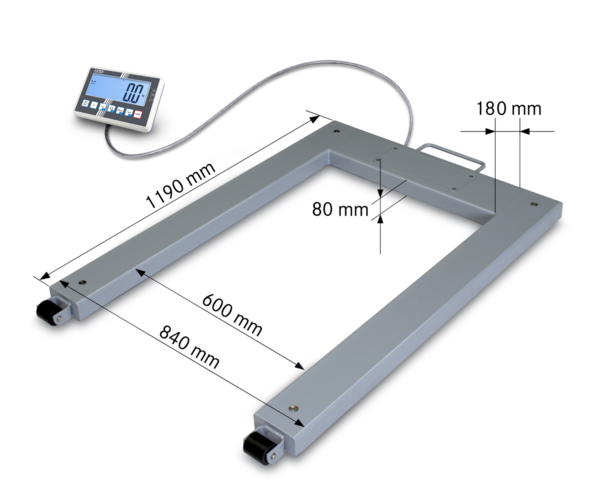

UFC 1T-1M 1500 kg 500 g 1190  mm x 840  mm
UFC 600K-1M 600 kg 200 g 840  mm x 1190  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Piece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 65 protection in accordance with DIN EN 60529:
Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.IP 67 protection in accordance with DIN EN 60529:
Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Universal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowingVerification possible. The time required for verification is specified in the pictogram.

Optional

Data interface RS-232: To connect the balance to a printer, PC or networkRechargeable battery pack: rechargeable set
