CLM8 Intelligent Junction Box

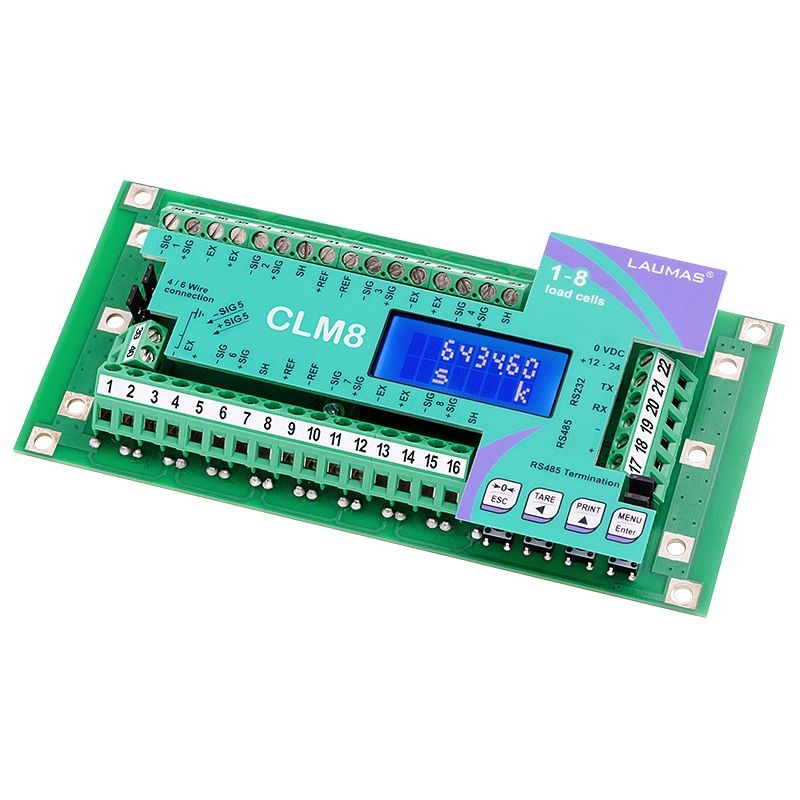

Laumas CLM8 intelligent junction box

The CLM8 brings the signals from a multi-load-cell weighing system together while retaining information from each input. This makes it easier to identify an unbalanced load, wiring fault or individual sensor problem than with a conventional passive junction box.

Eight independent conversion channels support load distribution monitoring and digital equalisation in tanks, silos, hoppers and platforms. RS232, RS485 and Ethernet TCP/IP communication allow weighing and diagnostic data to be accessed by compatible control and supervision systems.

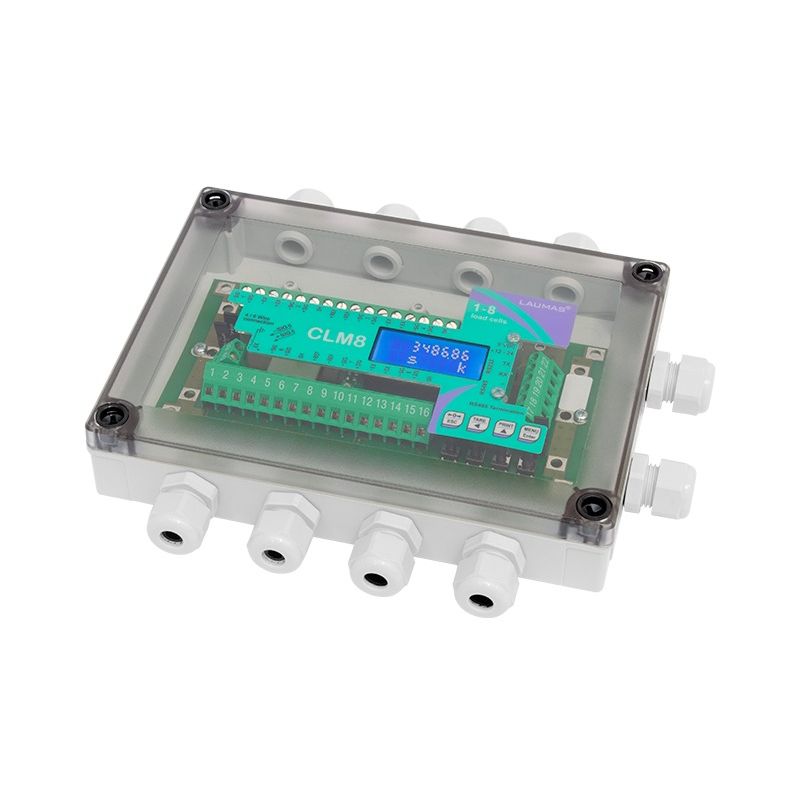

The range includes versions for control-panel mounting and protected field installation. Choose the enclosure and connection arrangement to suit the environment, then confirm the load-cell quantity and system wiring before ordering.

Model: CLM8

Why is calibration important?

Quantity:

£357.42

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

View Technical Data Sheet (PDF)

Laumas CLM8 Intelligent Junction Box

£357.42

Learn More

Technical Specification

Fieldbus Output

RS232, RS485, Ethernet TCP/IP

Power Supply

12–24 VDC ±10%

Load Cell Input

8 × 350 Ω (4- or 6-wire)

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

Learn more

Applications

Advanced Load Cell Monitoring

Designed for advanced monitoring of multi-load-cell weighing systems and structures.

Silo & Hopper Diagnostics

Provides detailed diagnostics for silo and hopper weighing systems.

Weighing System Maintenance

Simplifies maintenance and troubleshooting of complex weighing systems.

Intelligent Junction Box Replacement

Can replace traditional passive junction boxes while providing diagnostics, equalisation and monitoring capabilities.

Features

Intelligent Load Cell Management

Provides intelligent management of multiple load cells with diagnostics and performance monitoring.

Digital Load Cell Equalisation

Digital equalisation improves accuracy and simplifies commissioning of multi-load-cell systems.

Advanced Diagnostic Monitoring

Provides continuous monitoring of load cell performance and system condition.

Enhanced Weighing System Visibility

Provides engineers with detailed visibility of load cell performance and weighing system condition.

FAQs

What is an intelligent junction box?

An intelligent junction box provides diagnostics, equalisation and monitoring beyond a traditional passive junction box.

Can the CLM8 replace a traditional junction box?

Yes, the CLM8 provides monitoring, diagnostics and equalisation capabilities beyond a passive junction box.

Where is the CLM8 intelligent junction box used?

The CLM8 is used on tanks, silos, weighbridges and other multi-load-cell weighing systems.

What makes the CLM8 different from a standard junction box?

The CLM8 actively monitors, equalises and diagnoses load cells, providing significantly greater visibility than a passive junction box.
