LCB Load Cell Digitizer

Q: What does the Laumas LCB do?

It converts the analogue millivolt-per-volt signal from a strain-gauge load cell into a digital signal for a compatible control system.

Q: Does the LCB include a load cell?

No. It is a separate digitiser used with a compatible analogue load cell or strain-gauge sensor.

Q: Which communication version should I choose?

Choose the variant that matches the protocol used by the PLC or control system.

Q: Which enclosure material do I need?

Plastic suits general industrial use; stainless-steel and hygienic versions suit more demanding environments.

Laumas LCB Load Cell Digitizer

£544.56

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Power supply and consumption

12–24 VDC ±10%; 5 W

Load cell connection

Up to 4 × 350 Ω load cells; 4- or 6-wire; 3.3 VDC / 40 mA excitation

Measurement range

±26 mV

Load cell sensitivity

±7 mV/V

Linearity

<0.01% of full scale

A/D converter

24 bit (16,000,000 points); 4.8 kHz

Conversion rate

Up to 500 conversions per second

Digital inputs and relay outputs

2 digital inputs, 5–24 VDC; 3 relay outputs, max 115 VAC / 150 mA or 24 VDC / 200 mA

Communication and outputs

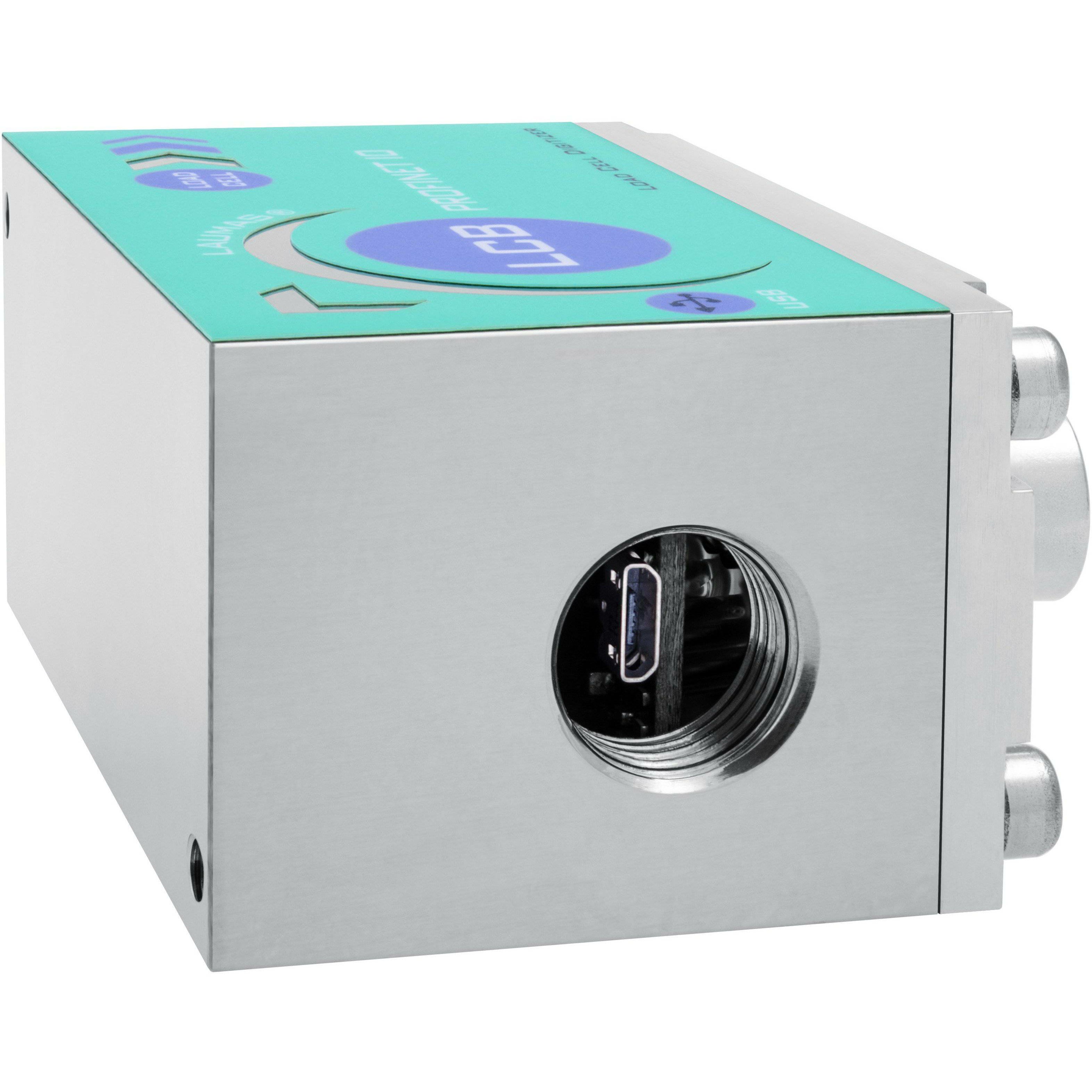

Micro USB; analogue, RS485 and industrial fieldbus options depend on the selected variant

Enclosure and dimensions

IP67; AISI 304 stainless steel or glass-fibre-reinforced PA66; 90 × 40 × 107 mm including connectors

Operating conditions

−20 to +50°C; storage −30 to +80°C; maximum 85% RH, non-condensing

Learn more

Applications

Retrofitting existing load cells

Add a digital interface to a compatible analogue load cell without replacing the sensor.

PLC-connected weighing machinery

Send load-cell data directly to machinery using the industrial communication protocol specified by the control system.

Tank, hopper and silo weighing

Digitise the signal close to the vessel where long analogue cable runs would otherwise be required.

Washdown and hygienic installations

Select the appropriate stainless-steel or hygienic housing for food, pharmaceutical and frequently cleaned equipment.

Features

Converts analogue load cells to digital

The LCB converts the millivolt-per-volt output from an analogue strain-gauge load cell into a digital signal close to the measurement point.

Choice of industrial interfaces

Variants are available for CANopen, EtherNet/IP, EtherCAT, IO-Link, Modbus TCP, POWERLINK, PROFINET IO, SERCOS III and CC-Link IE Field Basic.

Enclosures for different environments

Choose reinforced plastic, AISI 304 stainless steel or a hygienic stainless-steel version to suit the installation.

Compact field installation

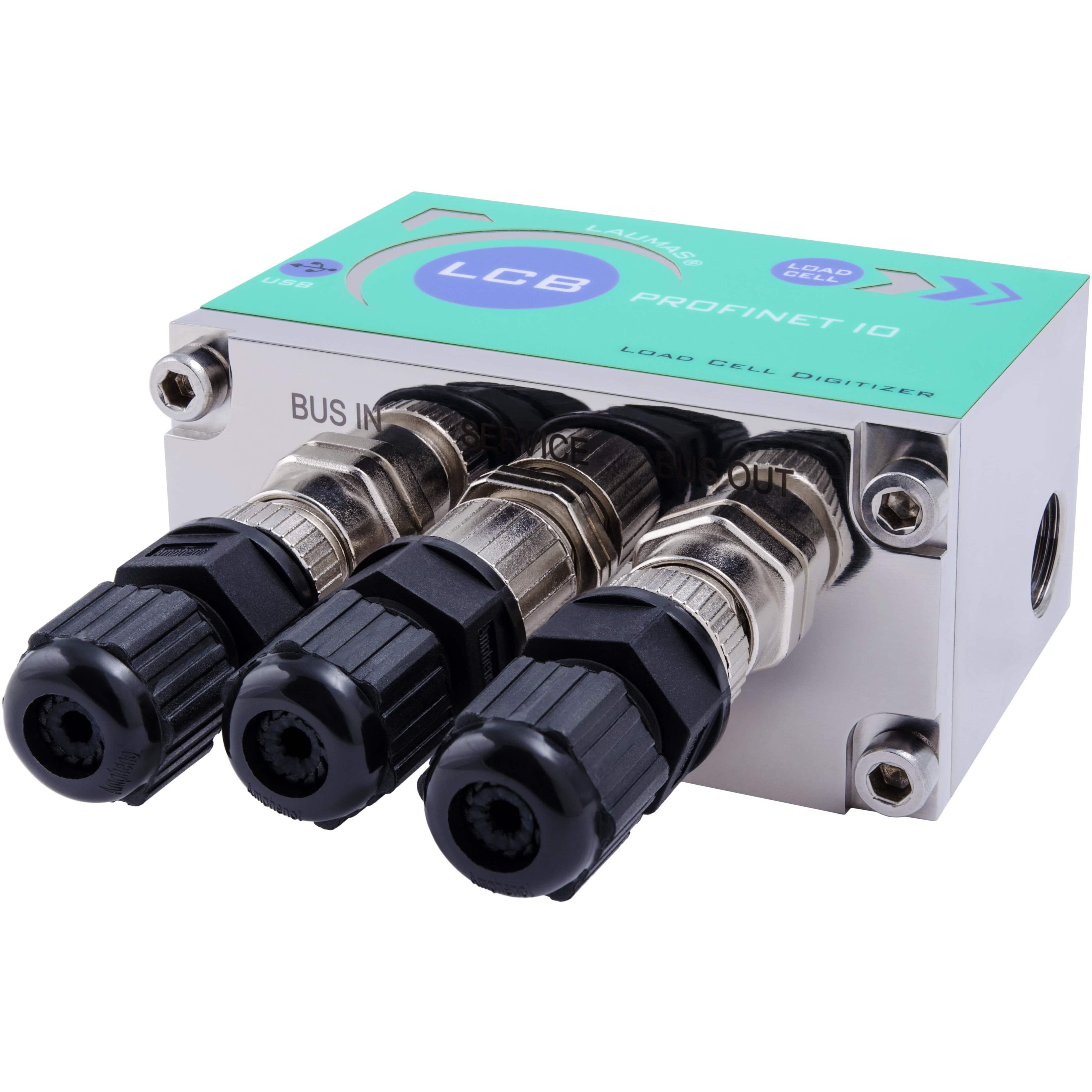

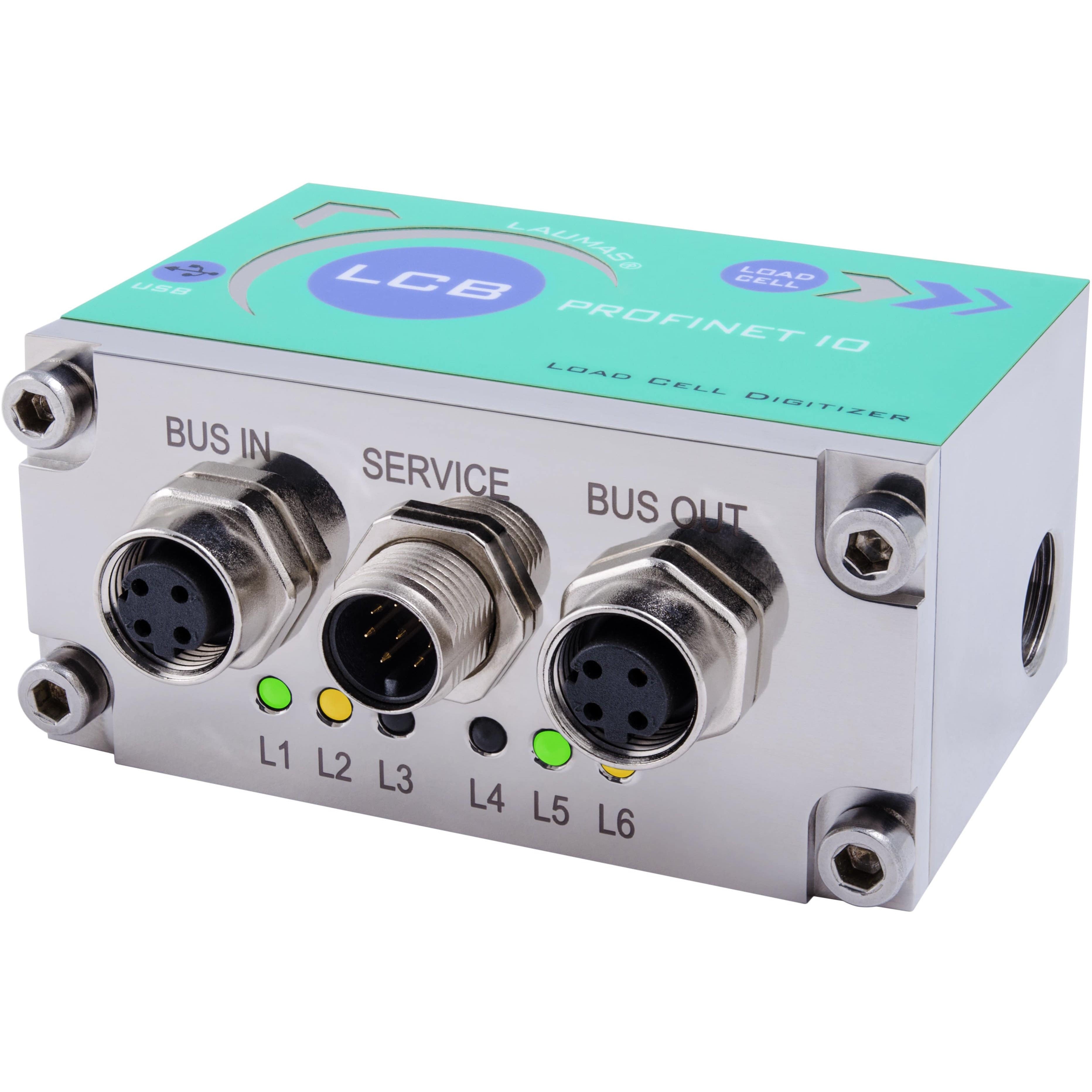

IP67 construction, M12 connections and status LEDs support installation near the load cell while keeping the low-level analogue cable run short.

FAQs

What does the Laumas LCB do?

It converts the analogue millivolt-per-volt signal from a strain-gauge load cell into a digital signal for a compatible control system.

Does the LCB include a load cell?

No. It is a separate digitiser used with a compatible analogue load cell or strain-gauge sensor.

Which communication version should I choose?

Choose the variant that matches the protocol used by the PLC or control system.

Which enclosure material do I need?

Plastic suits general industrial use; stainless-steel and hygienic versions suit more demanding environments.
