Laumas PEC Single Point Load Cell

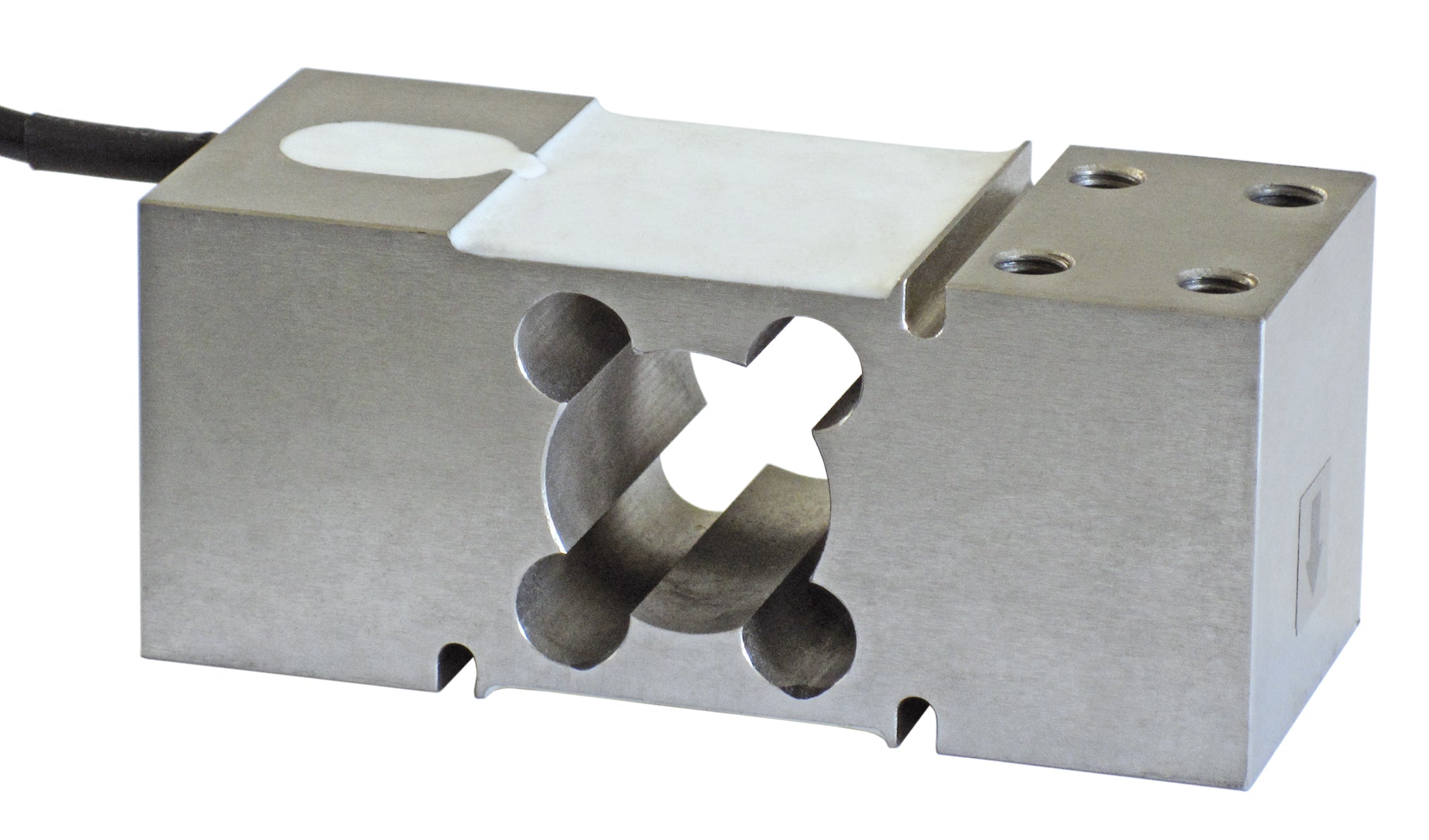

Laumas PEC Single Point Load Cell Overview

The Laumas PEC Single Point Load Cell is a stainless steel weighing sensor designed for platform scales, bench scales and industrial weighing systems. Suitable for platforms up to 600 x 600 mm, it combines robust construction with accurate measurement for demanding production environments.

Its IP67 protection rating and stainless steel body make it suitable for applications where durability, washdown resistance and long-term reliability are important. The PEC is widely used in OEM machinery, process weighing systems and industrial scale manufacture.

Model: PEC75 - 75 Kg

Calibration Certificate: No

Quantity:

£259.00

View Technical Data Sheet (PDF)

Laumas Laumas PEC Single Point Load Cell

£259.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

75 kg, 150 kg, 300 kg, 500 kg

Accuracy

≤ ±0.02% combined error

Material

AISI 420 stainless steel

Cable Length

3 m

Output Signal

2 mV/V ±10%

IP Rating

IP67

Approvals

CE, UKCA, EAC; ATEX, IECEx, EAC Ex, Ex NEPSI on request

CE, UKCA

Optional Certifications

Learn more

Applications

Platform Scales

Suitable for platform scales operating in demanding environments where corrosion resistance is important.

Food Processing Equipment

Suitable for food processing environments requiring corrosion resistance and dependable weighing performance.

Packaging Machinery

Integrates into packaging machinery requiring reliable weighing performance and production efficiency.

Industrial Food Production

Suitable for industrial food production environments requiring robust and corrosion-resistant weighing components.

Features

Stainless Steel Construction

Stainless steel construction provides durability and resistance to corrosion in demanding environments.

IP67 Environmental Protection

IP67 protection helps safeguard weighing performance in industrial and commercial environments.

Washdown Suitable Design

Suitable for environments where regular cleaning and washdown procedures are required.

Long-Term Reliability

Designed to provide dependable performance throughout long-term industrial use.

FAQs

Is the PEC load cell suitable for washdown environments?

Yes, the PEC load cell features stainless steel construction and environmental protection suitable for washdown and demanding industrial environments.

Why is the PEC load cell suitable for harsh environments?

The PEC combines stainless steel construction with environmental sealing to support reliable operation in demanding environments.

What industries commonly use the PEC load cell?

The PEC is widely used in food processing, packaging, manufacturing and industrial process weighing applications.

Can the PEC load cell be used in food production environments?

Yes, the PEC's stainless steel construction and environmental protection make it suitable for food production environments.
