Laumas W200BOXEC Weight Indicator

Laumas W200BOXEC Weight Indicator Overview

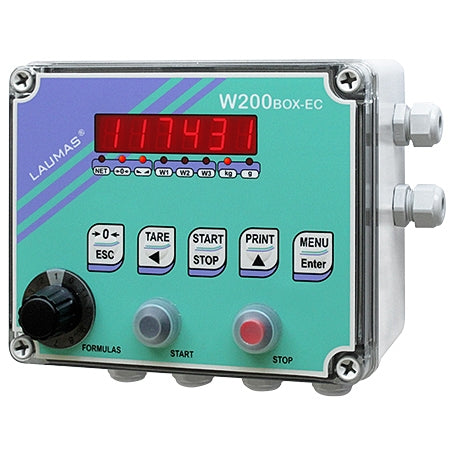

The Laumas W200BOXEC is a wall-mounted batching weight indicator with external controls for selecting setpoint groups or formulas and managing start and stop functions. Its IP64 enclosure is suitable for industrial production environments.

With RS232 and RS485 communications, relay outputs, batching functions and support for up to 99 formulas, the W200BOXEC is suitable for production batching, process weighing, recipe control and industrial automation systems.

Model: W200BOXEC-B

Model
Why is calibration important?
Sale price£503.94

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

Ask GNW a Question

Need help choosing the correct instrument? Send our team your question.

Product: Laumas W200BOXEC Weight Indicator
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP
Program Base Load Unload 3 Products 6 Products 14 Products Multiprogram

Learn more

Applications

Wall Mounted Production Control

Used in wall mounted production control systems where operator access and visibility are important.

Recipe Driven Production

Used in recipe driven production processes requiring operator control and monitoring.

Batch Process Management

Used in batch process management applications requiring repeatable production control.

External Operator Control

External controls allow efficient operator management of batching and production processes.

Features

Wall Mount Batching Control

Wall mounted batching controller with external controls for efficient production operation.

External Process Controls

External controls allow operators to select formulas and manage batching operations efficiently.

Formula Selection Controls

External controls simplify operation of batching and process functions.

Efficient Batching Operation

External controls help operators manage batching processes quickly and efficiently.
