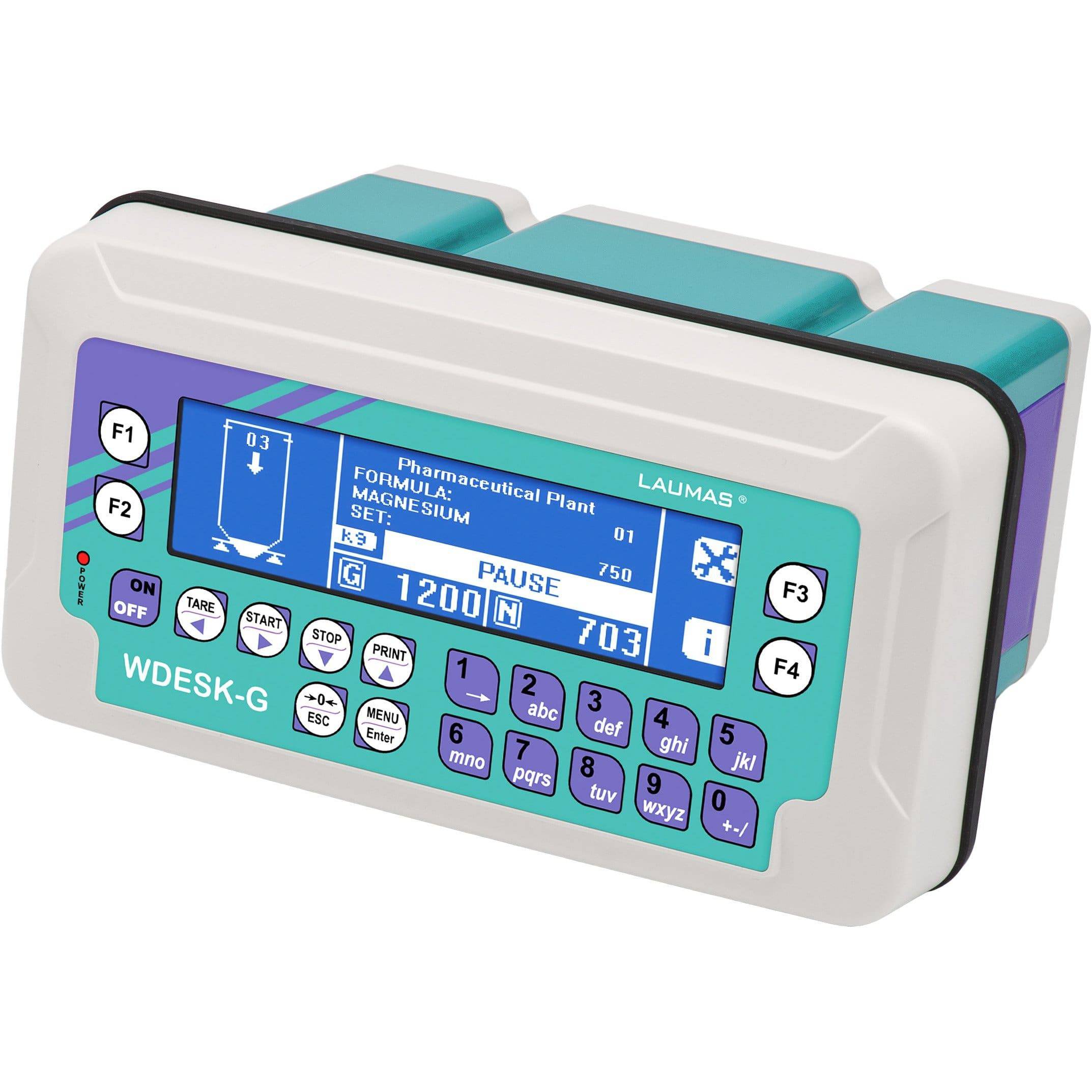

Laumas WDESK-G Weight Indicator

Laumas WDESK-G Weight Indicator Overview

The Laumas WDESK-G is a graphic weight indicator designed for weighing and batching applications requiring enhanced data visibility. Its graphic LCD display and multilingual software make it suitable for operators managing formulas, process data and weighing functions from a clear user interface.

With RS232 and RS485 communications, relay outputs, setpoint control and optional industrial protocols, the WDESK-G is suitable for batching systems, process weighing, production control and industrial applications requiring advanced indicator functionality.

Model: WDESK-G

Model
Sale price£460.08
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP
Programs Base Load Unload 3 Products 6 Products 14 Products Multiprogram

Learn more

Applications

Batching & Process Control

Supports batching and process control applications requiring formula management and production monitoring.

Ingredient Batching

Supports ingredient batching processes requiring accurate control of product quantities.

Formula Management

Supports formula management applications involving multiple products and recipes.

Industrial Data Collection

Supports industrial data collection through communication with production and control systems.

Features

Graphic Process Display

Graphic display improves visibility of weighing data, process information and batching functions.

Multilingual Software

Multilingual software supports international operations and simplifies operator interaction.

Batching & Weighing Functions

Supports both weighing and batching applications from a single instrument platform.

Cloud Connectivity Options

Supports IoT gateway connectivity and cloud-based weighing data management.
