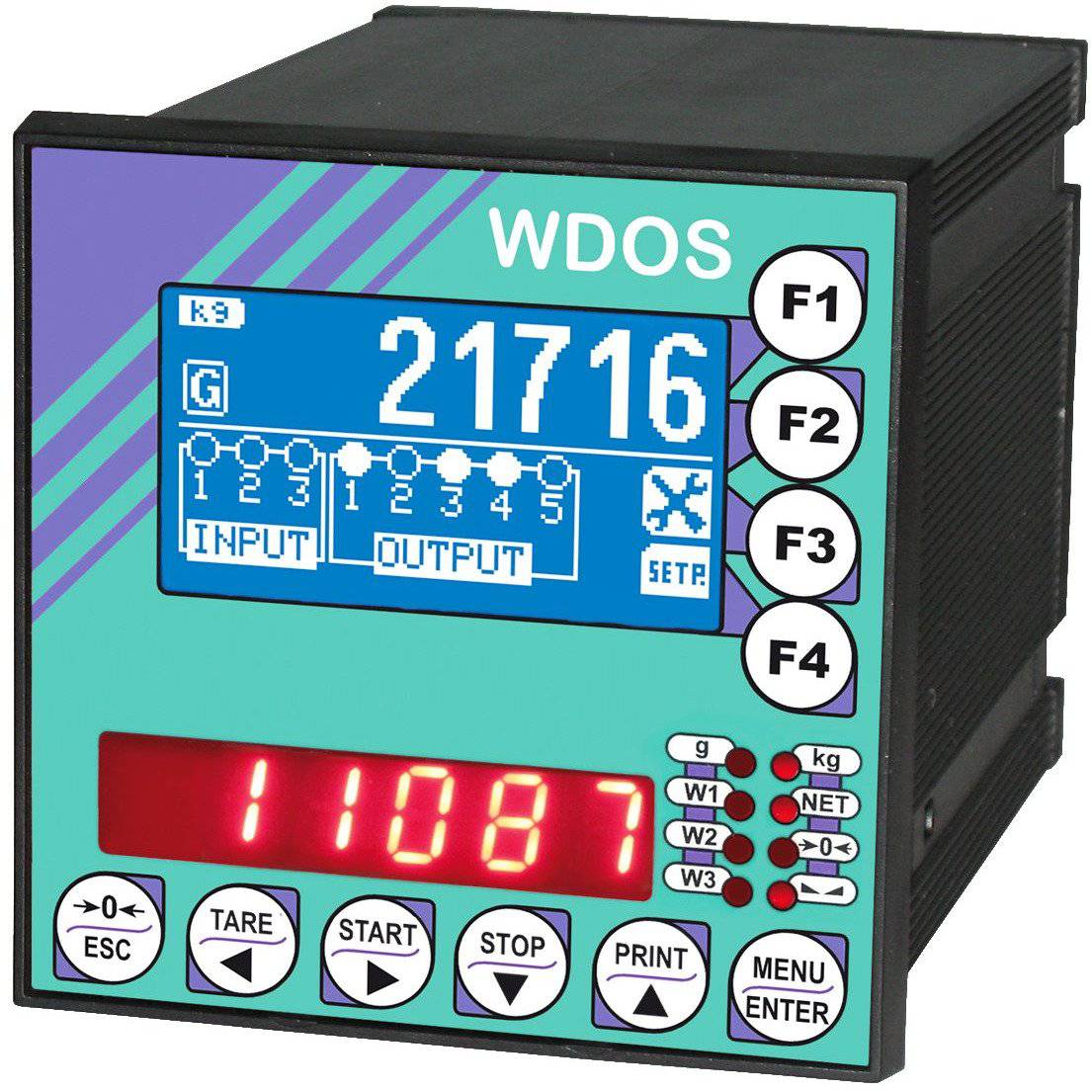

Laumas WDOS Weight Indicator
Laumas

Laumas WDOS Weight Indicator

Laumas WDOS Weight Indicator Overview

The Laumas WDOS is a graphic batching weight indicator designed for single loading, unloading and multi-product batching applications. It supports up to 99 formulas, making it suitable for recipe control and production processes requiring repeatable batching.

With RS232 and RS485 communications, relay outputs, setpoint control and multilingual software, the WDOS is suitable for ingredient dosing, process batching, production control and industrial weighing automation.

Model: WDOS-MU

Model
Sale price£454.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12÷24 VDC ±10%; 5 W 12÷24 VDC ±10%; 5 W 12÷24 VDC ±10%; 5 W 12÷24 VDC ±10%; 5 W 12÷24 VDC ±10%; 5 W 12÷24 VDC ±10%; 5 W
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP
Program Multiprogram Load Unload 3 Products 6 Products 14 Products

Learn more

Applications

Multi-Product Batching

Designed for multi-product batching operations involving recipes, formulas and production control.

Ingredient Management

Supports ingredient management applications involving formula and recipe control.

Production Scheduling

Used in production scheduling applications where batching and formula management are important.

Industrial Production Control

Supports industrial production control through batching and weighing integration.

Features

Advanced Batching Controller

Designed for advanced batching applications with formula management and process control functions.

Up To 99 Formulas

Supports multi-product batching with storage of up to 99 formulas.

Recipe Management

Recipe management functions support repeatable production and batching processes.

Industrial Process Automation

Supports automated production processes requiring formula and batching control.

FAQs

Need more help? Contact our sales team.
