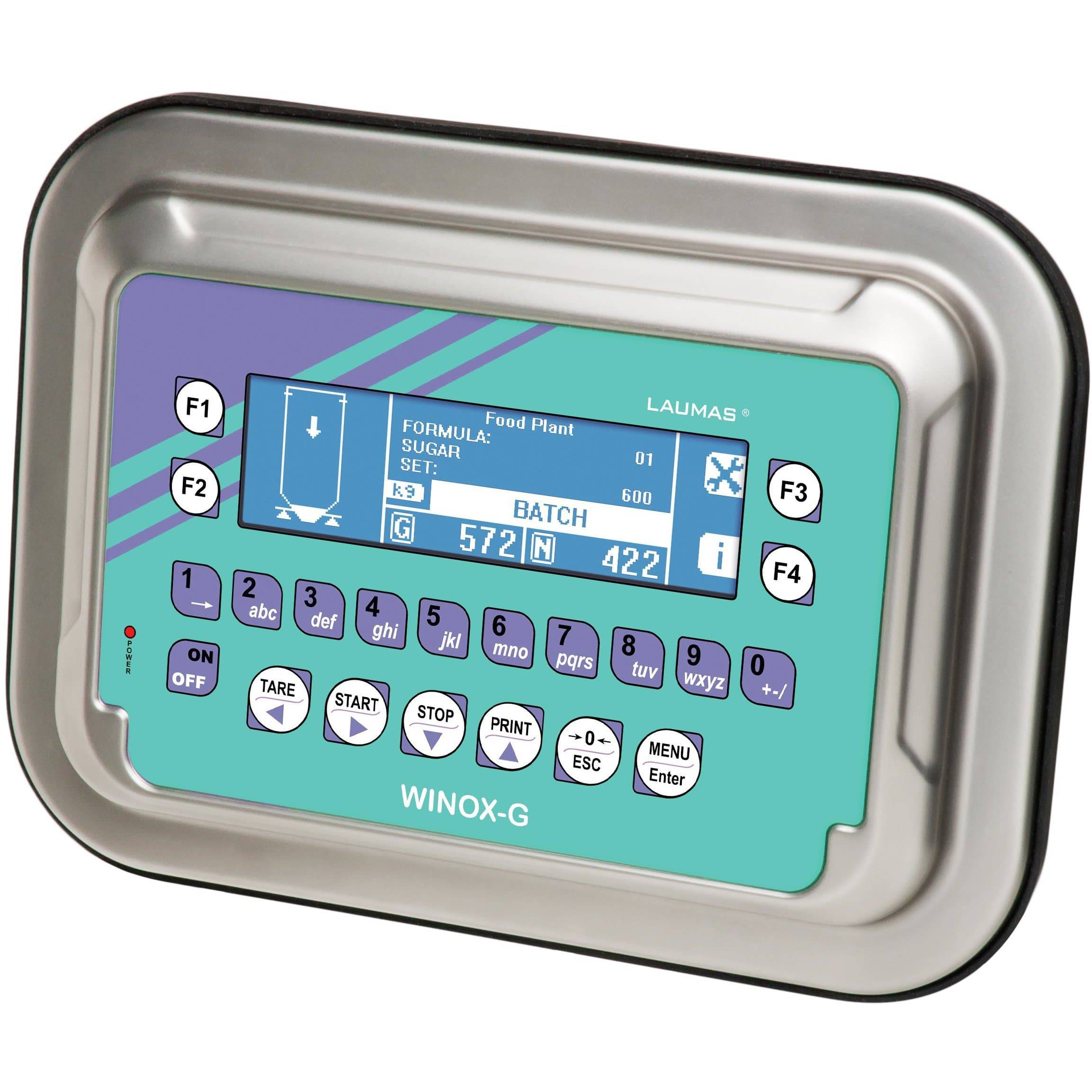

Laumas WINOX-G Weight Indicator
Laumas

Laumas WINOX-G Weight Indicator

Laumas WINOX-G Weight Indicator Overview

The Laumas WINOX-G is a stainless steel graphic weight indicator designed for industrial weighing and process control applications. Its robust housing and graphic display make it suitable for demanding production environments requiring clear operator interaction.

With communication options, relay outputs, setpoint control and advanced weighing functions, the WINOX-G is suitable for batching systems, process weighing, tank weighing and manufacturing applications.

Model: WINOXG-B

Model
Sale price£568.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W
No. Load Cells Up to 8 (350 R) 4/6 wires Up to 8 (350 R) 4/6 wires Up to 8 (350 R) 4/6 wires Up to 8 (350 R) 4/6 wires Up to 8 (350 R) 4/6 wires Up to 8 (350 R) 4/6 wires Up to 8 (350 R) 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP

Learn more

Applications

Hygienic Process Weighing

Suitable for hygienic process weighing applications in food, beverage and pharmaceutical facilities.

Cleanroom Production

Suitable for cleanroom production environments requiring hygienic weighing equipment.

Food Ingredient Handling

Suitable for food ingredient handling processes requiring hygienic weighing equipment.

Hygienic Manufacturing Control

Suitable for hygienic manufacturing control applications requiring washdown resistance.

Features

Stainless Steel Graphic Display

Combines graphic display functionality with stainless steel construction for industrial environments.

Advanced Weighing Functions

Advanced weighing functions support process monitoring and production control.

Industrial Durability

Designed to withstand demanding industrial operating conditions.

Enhanced Operator Visibility

Graphic display improves access to weighing and process information.
