Stainless Steel Weight Indicator with Multi-Product Batching and Legal-for-Trade Approvals

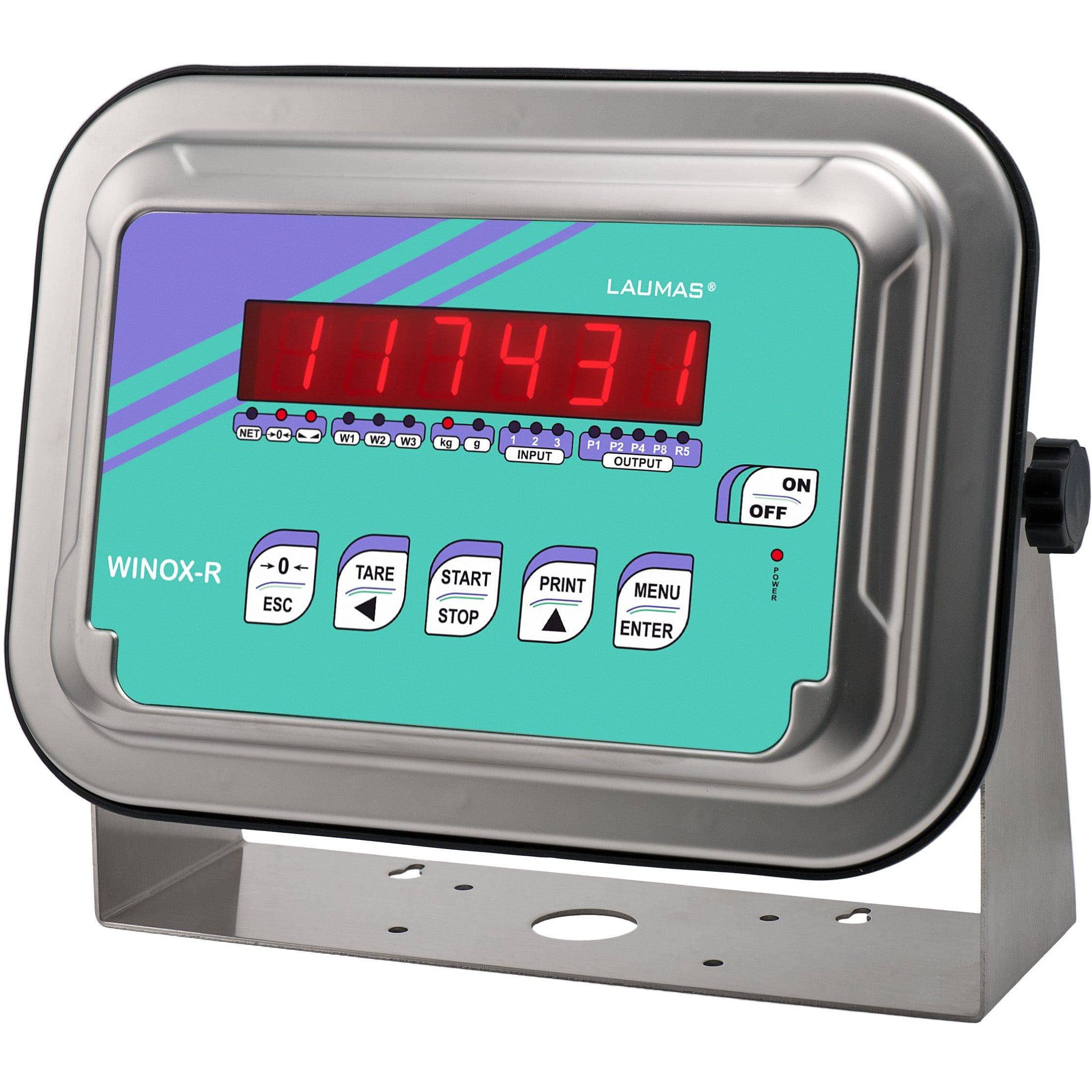

The Laumas WINOX-R is a robust, stainless steel weighing indicator designed for industrial batching, vehicle weighing, and legal-for-trade applications. Featuring a bright 6-digit red LED display, 16 status LEDs, and intuitive 8-key operation, the WINOX-R supports up to 8 or 16 load cells and interfaces with PLCs or external devices via RS232/RS485, analogue outputs, and fieldbus protocols. It includes software programmes for batching, unloading, and multi-product formulation, along with real-time clock and multilingual support.
Key Features
- Display: 6-digit semi-alphanumeric red LED (20 mm height) with 16 status LEDs
- Keyboard: 8-key front panel operation
- Housing: AISI 304 stainless steel with IP68 front panel (various enclosures available)
- Load Cell Support: Up to 8 (350 Ω) or 16 (700 Ω) load cells
- Inputs/Outputs: 5 relay outputs, up to 3 digital inputs, optional 16-bit analogue output
- Ports: RS232/RS485 serial, optional Ethernet TCP/IP, USB, and fieldbus support
- Real-Time Clock: With backup battery for data logging and automation
- Approvals: CE, UKCA, UL, OIML R76, MID, EAC, NMI, and more
- Power Supply: 12–24 VDC or 115/230 VAC (depending on version)
Available Programmes
| Model | Programme | Description |
|---|---|---|
| WINOXR-B | BASE | Basic weight indicator with display, peak, and totalisation |
| WINOXR-C | LOAD | Load control via setpoints and alarms |
| WINOXR-S | UNLOAD | Unloading process management with relay control |
| WINOXR-3 | 3 PRODUCTS | Batching with up to 3 configurable products |
| WINOXR-6 | 6 PRODUCTS | Batching with up to 6 configurable products |
| WINOXR-14 | 14 PRODUCTS | Batching with up to 14 programmable products |
| WINOXR-MU | MULTIPROGRAM | Switchable modes for multiple batching programmes |
Certifications
- OIML R76, MID, CE, UKCA, UL, EAC, NMI (Australia), GOST (Russia), INMETRO (Brazil)
- Explosion proof: ATEX 3G/3D Zone 2/22 versions available
- Complies with international trade, customs, and safety regulations
Interfaces & Expansion Options
- Analogue Output: 16-bit optional module (OPZWANALOGICA)
- Additional RS485: Secondary serial port (OPZW1RS485)
- Fieldbus Support: CANopen, Modbus TCP, Profibus DP, Ethernet/IP, DeviceNet, Profinet IO
- USB Logging: Export alarms, weight, and batch data (OPZWUSB)
- Web Interface: Ethernet TCP/IP for browser-based remote supervision
- Alibi Memory: For compliance and audit (OPZWALIBI)
Enclosure Variants
- P: Standard wall/desk mount with bracket, IP68 front

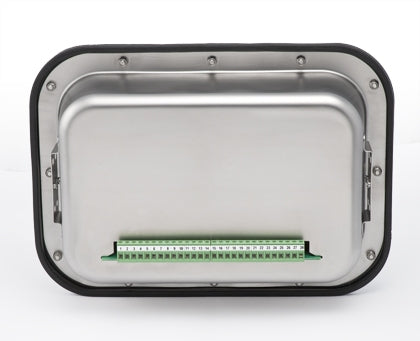

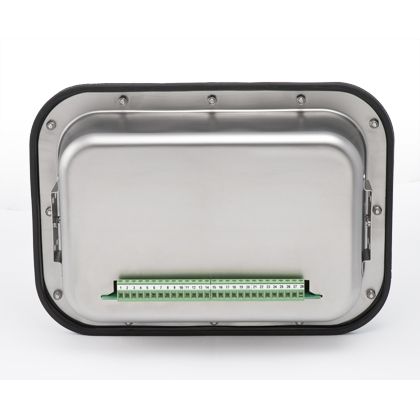

- Q: Rear-mounted terminals, cable glands, IP68 front

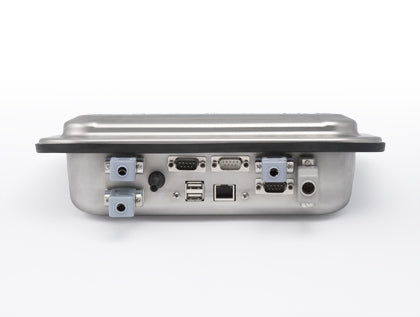

- D: Desk version with D-SUB connectors

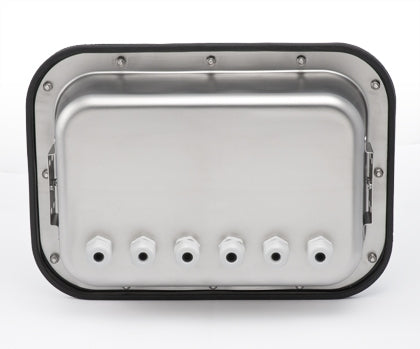

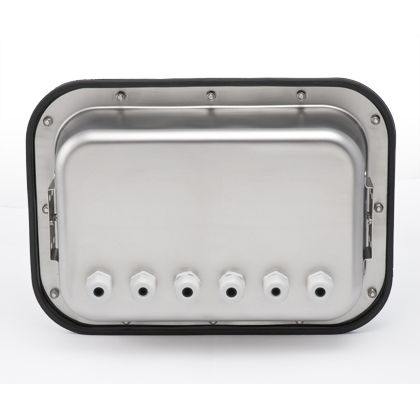

- X / IEX: ATEX zone 2/22 models with 6x M16 cable glands
Accessories & Mounting Options
- Adjustable stainless steel brackets for wall/table (STAFFAWINOX)
- Panel supports and ABS column base options
- Indicator-holder columns for floor/platform mounting
