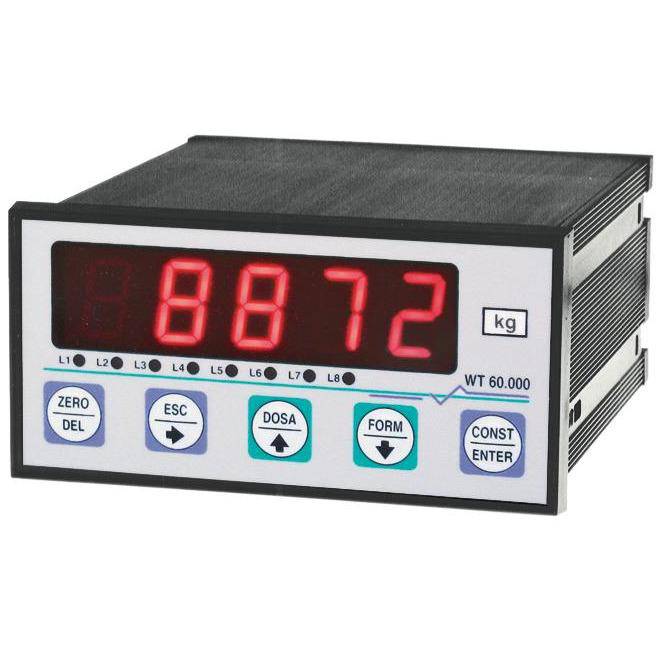

Laumas WT60 Weight Indicator
Laumas

Laumas WT60 Weight Indicator

Laumas WT60 Weight Indicator Overview

The Laumas WT60 is a weight indicator designed for flexible industrial weighing applications where clear weight display and practical installation are required. It is suitable for use in production areas, warehouses and process weighing systems.

The WT60 can be used in general weighing installations, portable weighing stations and industrial monitoring applications where operators require reliable access to live weight information.

Model: WT60

Model
Sale price£554.16
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA 115/230 VAC; 50/60 Hz; 10 VA
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit 24 bit
Measurement Range ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV ±2 mV ±19.5 mV
Load Cell Sensitivity - - - - - - - - - - - -
Serial Coms RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422 RS232, RS485, RS422
Relay Outputs 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A 4 - 115 VAC/30 VDC; 0.5 A
Digital Inputs 3 3 3 3 3 3 3 3 3 3 3 3

Learn more

Applications

Mobile Industrial Weighing

Designed for industrial weighing applications where portability and flexibility are required.

Warehouse Weighing

Suitable for warehouse weighing applications where equipment may need to be relocated.

Inventory Management

Used for inventory management applications requiring accurate weight visibility.

Mobile Weight Monitoring

Supports mobile weight monitoring activities across industrial facilities.

Features

Portable Industrial Weighing

Portable indicator suitable for weighing applications requiring flexibility and operator accessibility.

Flexible Installation

Designed for applications where portability and flexible installation are required.

Production Weighing Capability

Supports weighing operations used throughout production and manufacturing environments.

Mobile Weighing Capability

Portable operation allows weighing activities to be carried out in different locations.
