Ohaus Defender 5000 Pallet Scales - DFP52 Pallet Scales

Ohaus Defender 5000 DFP52 Pallet Scales

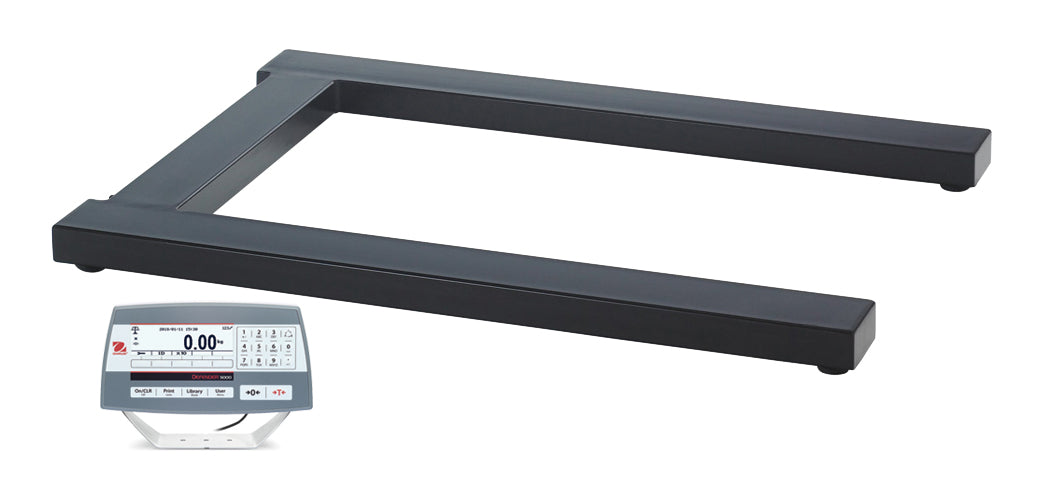

Ohaus Defender 5000 DFP52 pallet scales combine a painted steel U-shaped load receptor with a multifunction indicator for industrial pallet and container weighing. The open frame allows compatible pallet trucks to position open-bottom loads within the weighing area, supporting efficient handling across warehouses, manufacturing facilities and dispatch operations.

Weighing, parts counting, percentage weighing, checkweighing and dynamic weighing support stock control, goods receiving and production checks. A protected junction box and stainless steel load cells suit demanding industrial use, while RS-232, Micro SD access and optional communication interfaces support data transfer to compatible systems. Different capacities and verified configurations are available.

View Accessories

Model: DFP52P600J1

Calibration Certificate: No

Quantity:

£2,427.25

View Technical Data Sheet (PDF)

Ohaus Ohaus Defender 5000 DFP52 Pallet Scales

£2,427.25

Learn more

Product specification

Compare model specifications.

Model	DFP52P600J1	DFP52P1500J1	DFP52P600J1-M	DFP52P1500J1-M
Capacity	600 kg	1500 kg	600 kg	1500 kg
Readability	100 g	200 g	200 g	500 g
Legal For Trade	No	No	No	No
Platform Size	1256 mm x 840 mm	1256 mm x 840 mm	1256 mm x 840 mm	1256 mm x 840 mm
Units	Custom / g / kg / Metric Tonnes / oz / lb / lb:oz / Tonne	Custom / g / kg / Metric Tonnes / oz / lb / lb:oz / Tonne	g / kg / Metric Tonnes	g / kg / Metric Tonnes

Learn more

Applications

Warehouse Pallet Weighing

Measures incoming and stored pallets across warehouses, distribution centres and goods-receiving areas.

Manufacturing Pallet Weighing

Checks palletised materials, work in progress and completed goods throughout manufacturing.

Dispatch Weight Checks

Confirms outgoing pallet and container weights before loading and dispatch.

Inventory and Stock Control

Uses counting, percentage weighing and accumulation to support pallet stock management.

Features

Painted Steel U-Frame

The painted steel U-frame allows compatible pallet trucks to position open-bottom pallets and containers for weighing.

Multifunction Pallet Weighing

Weighing, parts counting, percentage weighing, checkweighing and dynamic weighing support warehouse and production tasks.

Expandable Data Connectivity

RS-232, Micro SD access and optional communication interfaces support compatible recording and process systems.

Capacity and Verification Options

Different capacities and verified configurations allow the system to be matched to its intended pallet loads.

FAQs

What Is the Ohaus DFP52 Pallet Scale Used For?

It provides multifunction weighing of pallets and open-bottom containers across warehouse and manufacturing operations.

Which Functions Does the Ohaus DFP52 Provide?

It supports weighing, parts counting, percentage weighing, checkweighing and dynamic weighing.

Can the Ohaus DFP52 Transfer Weighing Data?

Yes. RS-232, Micro SD access and optional interfaces support compatible data systems.

Are Verified Ohaus DFP52 Models Available?

Yes. Different capacity and verification options are available according to the intended use.
