Sauter TB Ultrasonic Thickness Gauge

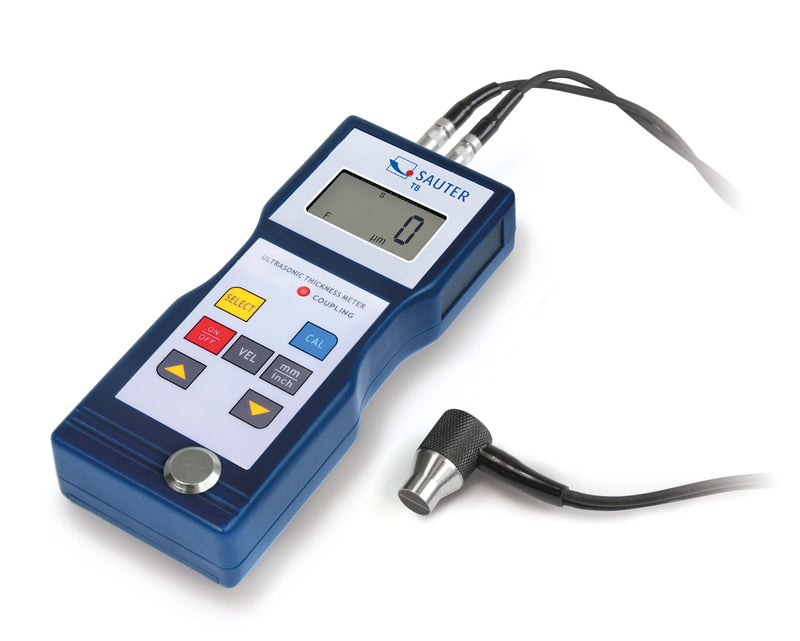

The Sauter TB is a compact ultrasonic thickness gauge for checking material when only one side can be reached. It is a practical choice for routine wall-thickness measurements on pipes, tanks, fabricated parts and other suitable components.

It measures from 1.5–200 mm with 0.1 mm readability. The separate 5 MHz probe is easier to position than an integral sensor when access is restricted, and readings can be displayed in millimetres or inches.

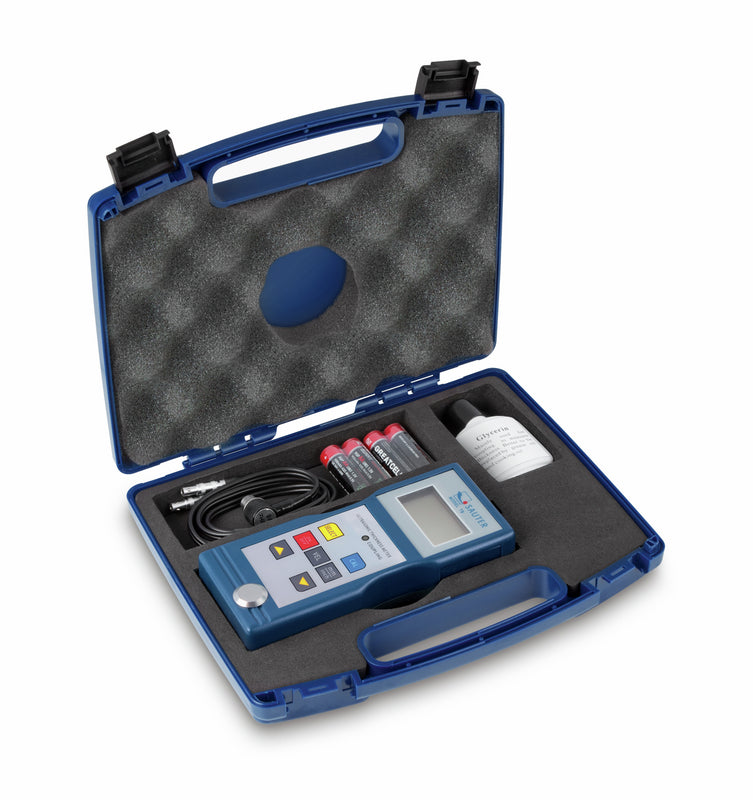

The gauge is supplied with its probe, contact gel, zero plate, batteries and carrying case, so it is ready for everyday inspection work. As with any ultrasonic gauge, reliable results depend on the material, surface condition, coupling and correct sound-velocity setting.

Model: TB 200-0.1US

Calibration Certificate: No

Quantity:

£314.35

View Technical Data Sheet (PDF)

Sauter Sauter TB Ultrasonic Thickness Gauge

£314.35

Learn more

Product specification

Compare model specifications.

Model	TB 200-0.1US	TB 200-0.1US-RED
Range	1.5 mm - 200 mm	1.5 mm - 200 mm
Units	mm, inch	mm, inch
Readability	0.1 mm	0.1 mm
Tolerance	0.5%	0.5%
Measuring Head Diameter	8 mm	8 mm
Speed Of Sound Range	500 m/s - 9999 m/s	500 m/s - 9999 m/s

Learn more

Applications

Metal Processing QC

Check remaining wall thickness on accessible metal pipework during maintenance.

Mechanical Engineering

Measure fabricated or machined parts when only one surface can be reached.

Oil and Gas Inspection

Compare wall thickness at marked points on tanks and vessels.

Aerospace Material Checks

Check suitable plastic and metal components before or after machining.

Features

External Measuring Head

The separate probe can be placed on pipe walls, tanks and components where the complete gauge would be awkward to hold.

Adjustment Base Plate

Use the supplied zero plate before a series of measurements to check the instrument setup.

Auto-Power-Off

The gauge switches itself off when left unused, avoiding unnecessary battery drain between checks.

Supplied Carrying Case

Probe, gel, zero plate and batteries stay together in the supplied case.

FAQs

What is the Sauter TB-US used for?

It is used for material thickness measurement in industrial applications such as metal processing, mechanical engineering, oil and gas, aerospace, plastics and shipping.

Does the TB-US include an external measuring head?

Yes, it is supplied with an external measuring head with an 8 mm diameter.

Can measurements be shown in different units?

Yes, the measuring units are selectable between mm and inch.

What is supplied with the device?

The scope of delivery includes operating instructions, batteries, an external measuring head, ultrasound contact gel and a robust carrying case.
