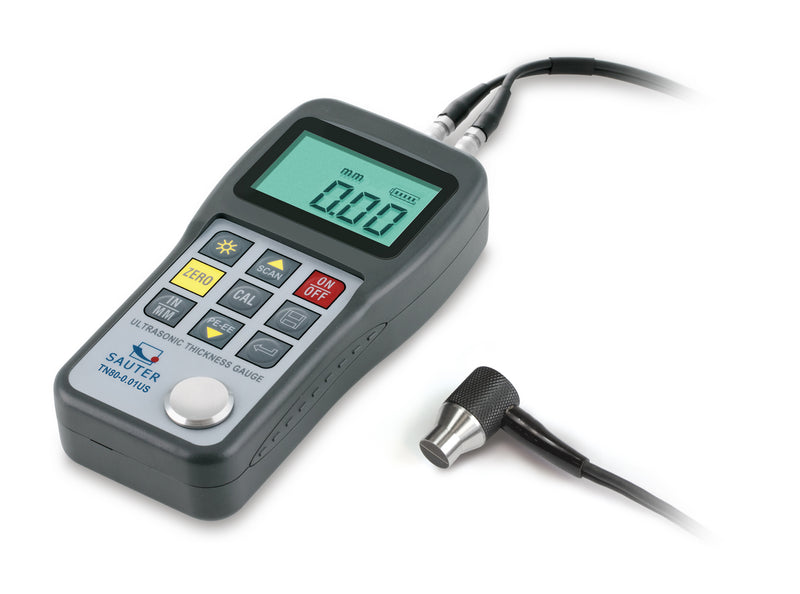

Sauter TN GOLD ultrasonic thickness gauge with external probe

Sauter TN GOLD ultrasonic probe and connection

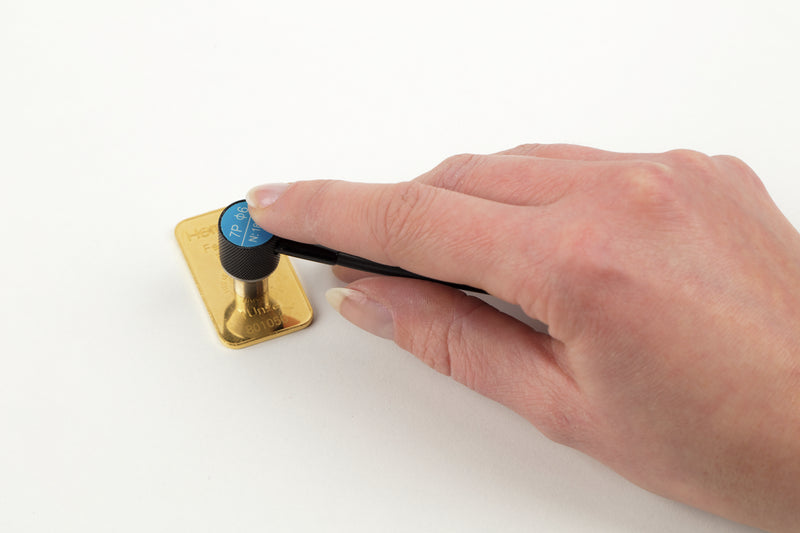

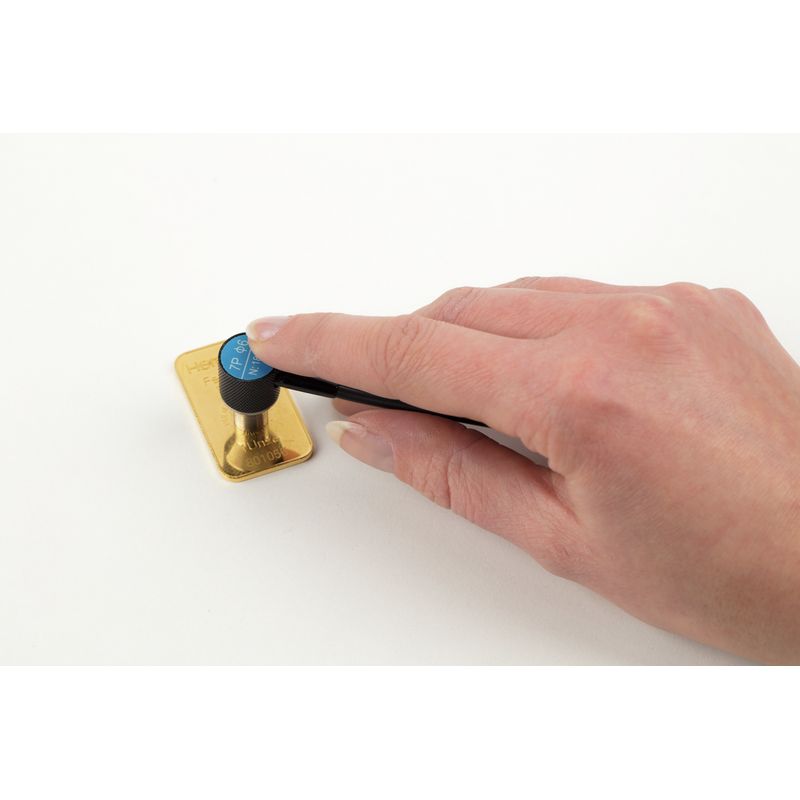

Sauter TN GOLD thickness gauge in handheld use

Sauter TN GOLD gauge dimensional drawing

Sauter TN GOLD Ultrasonic Thickness Gauge

The Sauter TN GOLD Ultrasonic Thickness Gauge uses non-destructive ultrasonic measurement to help assess gold bars and coins for false cores or inconsistent material. The supplied software supports comparison with the sound velocity of precious-metal alloys.

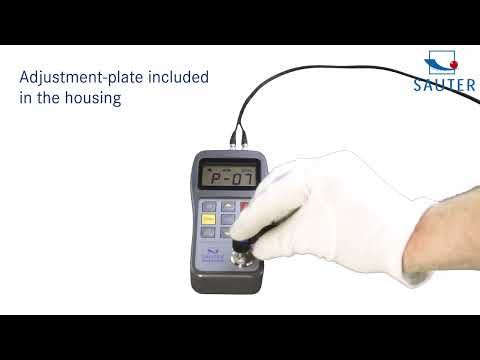

The TN GOLD measures from 0.75mm to 80mm with 0.01mm readability. It includes USB connectivity, an external 7MHz probe, internal storage for up to 20 files with 100 readings per file, a zero plate and ultrasonic contact gel.

Calibration Certificate: No

Quantity:

£616.00

View Technical Data Sheet (PDF)

Sauter Sauter TN GOLD Ultrasonic Thickness Gauge

£616.00

Learn more

Product specification

Compare model specifications.

Model	TN GOLD 80
Range	0.75 mm - 80 mm
Units	mm, inch
Readability	0.01 mm
Tolerance	0.5%
Measuring Head Diameter	6 mm
Speed Of Sound Range	1000 m/s - 9999 m/s

Learn more

Applications

Gold Bar Authentication

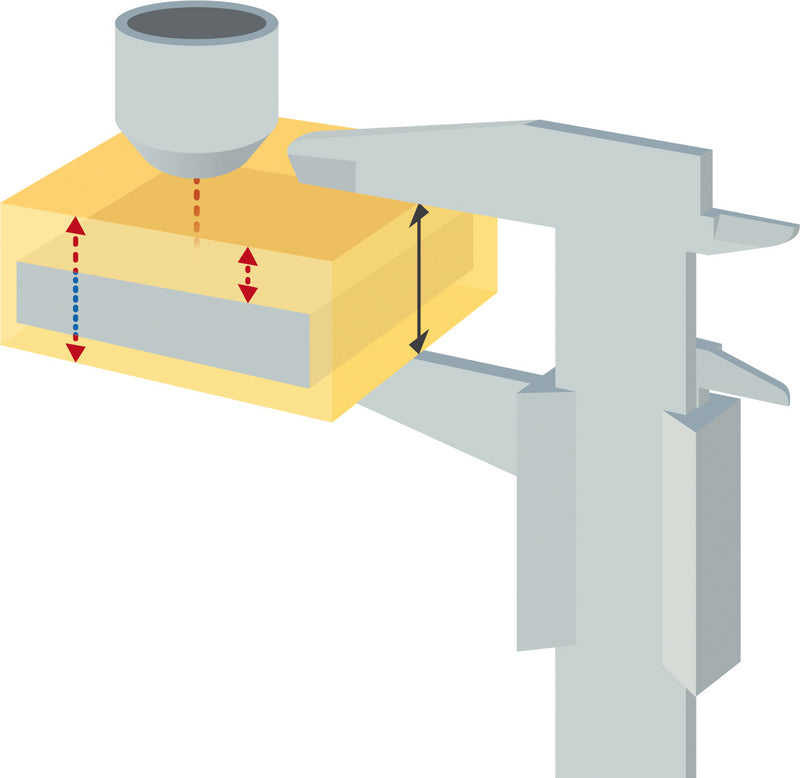

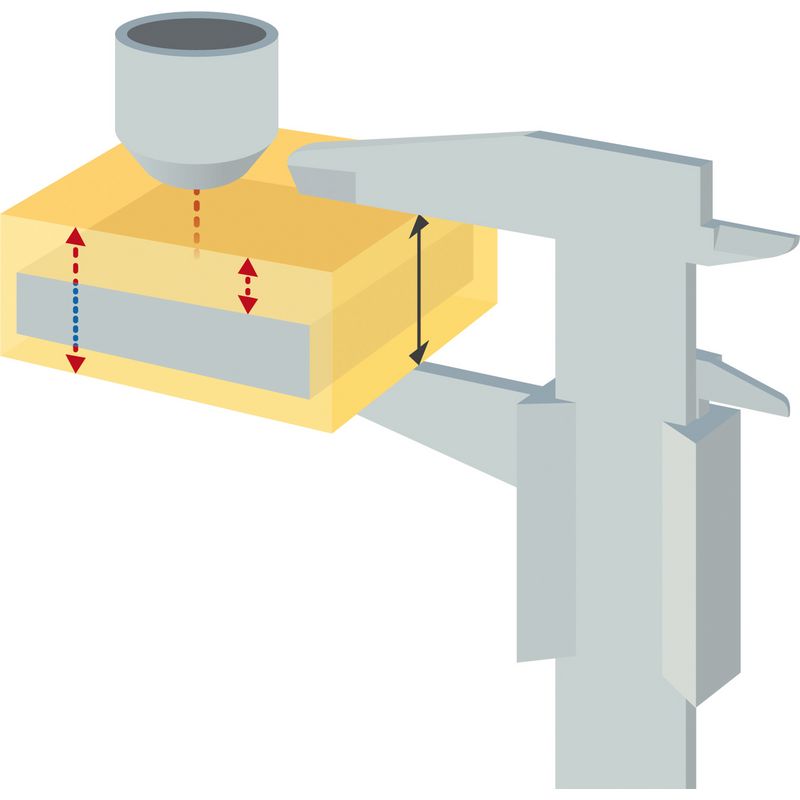

Screen gold bars for an internal core with different acoustic properties.

Coin Verification

Compare readings from coins of the same type when one item appears questionable.

Jewellery Trade Inspection

Add an ultrasonic check to visual inspection, weighing and dimensional tests.

Precious Metal Alloy Assessment

Record measurements from known genuine samples for later comparison.

Features

0.01mm Precious Metal Testing

The 0.75–80 mm range covers many bars and coins while retaining 0.01 mm readability.

Non-Destructive Gold Testing

Ultrasound offers an additional internal check without cutting, drilling or otherwise damaging the item.

Internal Data Memory

Results can be filed in the instrument instead of being written down individually.

USB And SSG Software

The supplied software helps compare measured sound velocity with expected precious-metal alloy values.

FAQs

Can the Sauter TN GOLD detect false cores in gold bars and coins?

Yes. It uses ultrasonic measurement to help identify cores made from materials such as tungsten or lead without damaging the tested item.

What measuring range and readability does the TN GOLD provide?

The TN GOLD measures from 0.75mm to 80mm with 0.01mm readability.

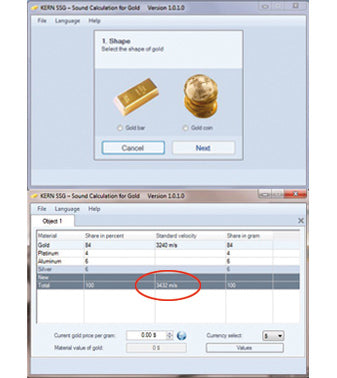

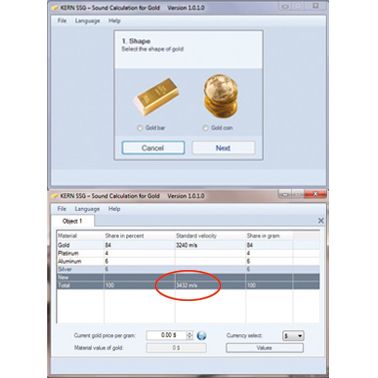

What does the included SSG software do?

The software calculates sound velocity for precious metal alloys, compensates for known additions such as copper or silver and supports assessment of material consistency.

What is supplied with the Sauter TN GOLD?

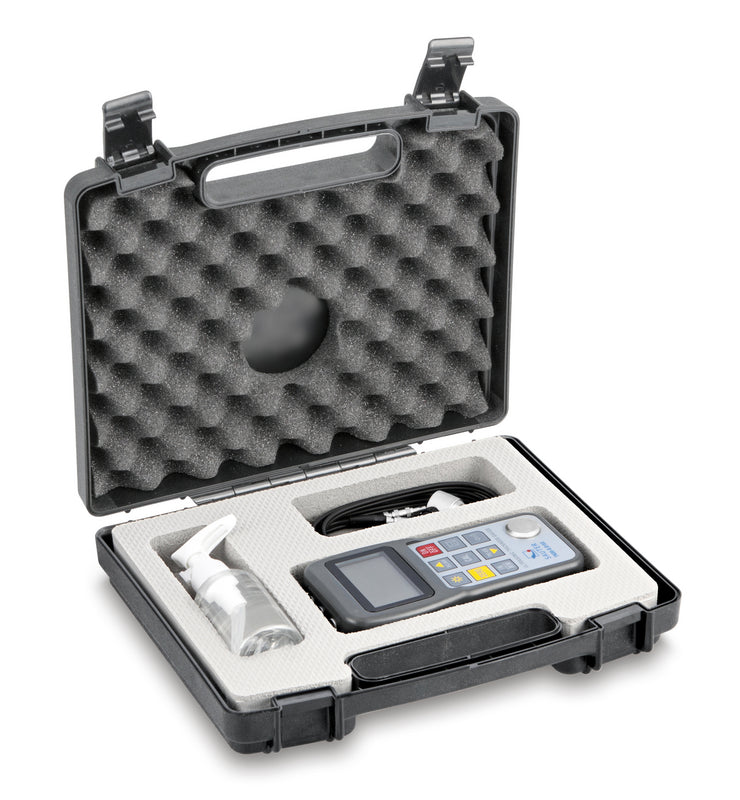

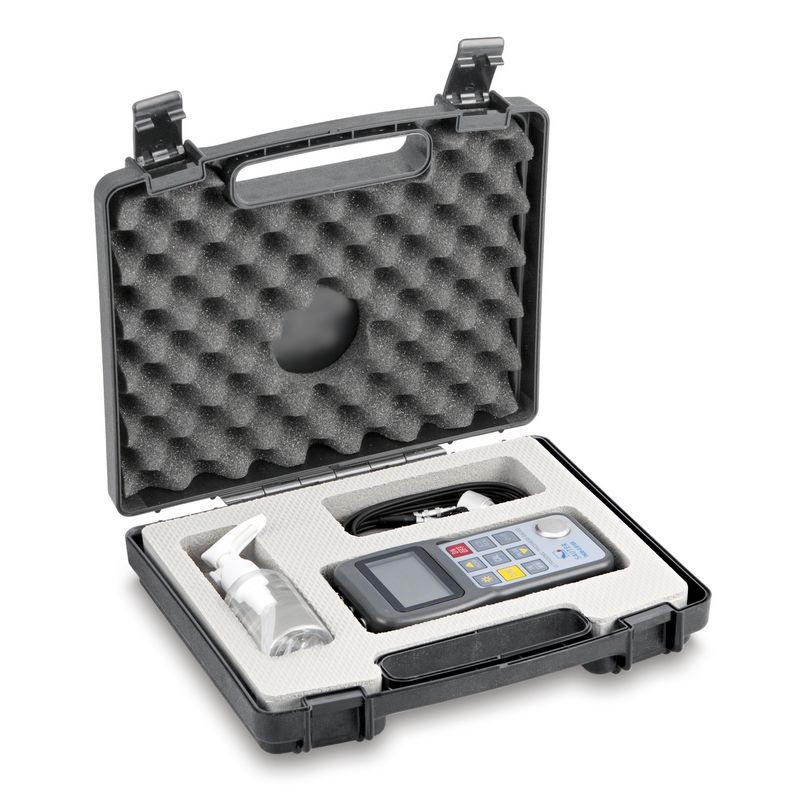

It includes operating instructions, batteries, an external 6mm measuring head, zero plate, ultrasonic contact gel, SSG software and a carrying case.
