TLB CANopen Weight Transmitter

Q: Why choose the CANopen version of the TLB?

Choose it when the machine or plant uses CANopen and needs weight data from one load-cell weighing point.

Q: Can CANopen systems access weighing diagnostics?

Yes, CANopen versions can provide diagnostic and performance information.

Q: Where are CANopen transmitters commonly used?

CANopen transmitters are widely used in machine building and automation projects.

Q: What advantages does CANopen provide over analogue signals?

CANopen provides diagnostics and network communications beyond simple analogue signals.

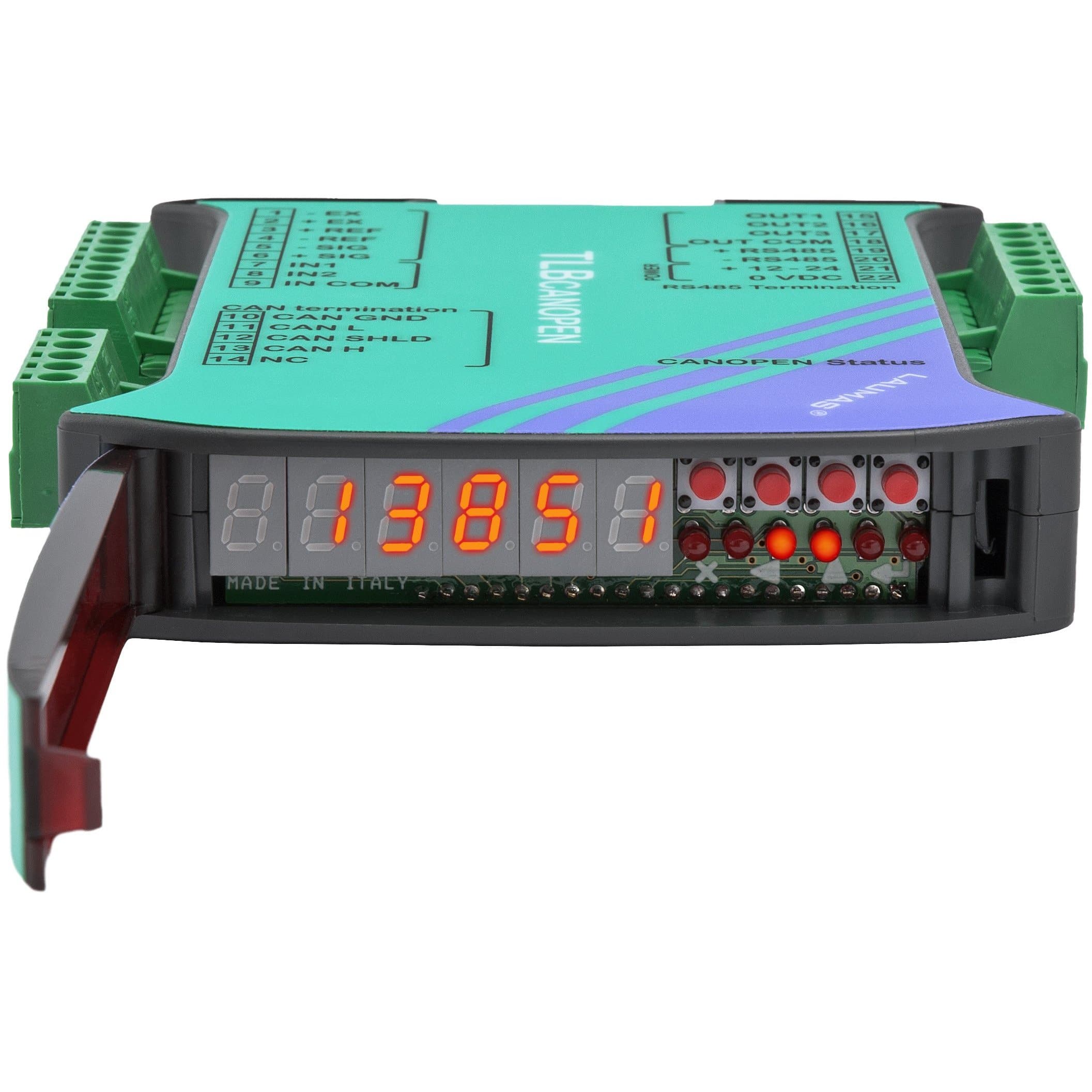

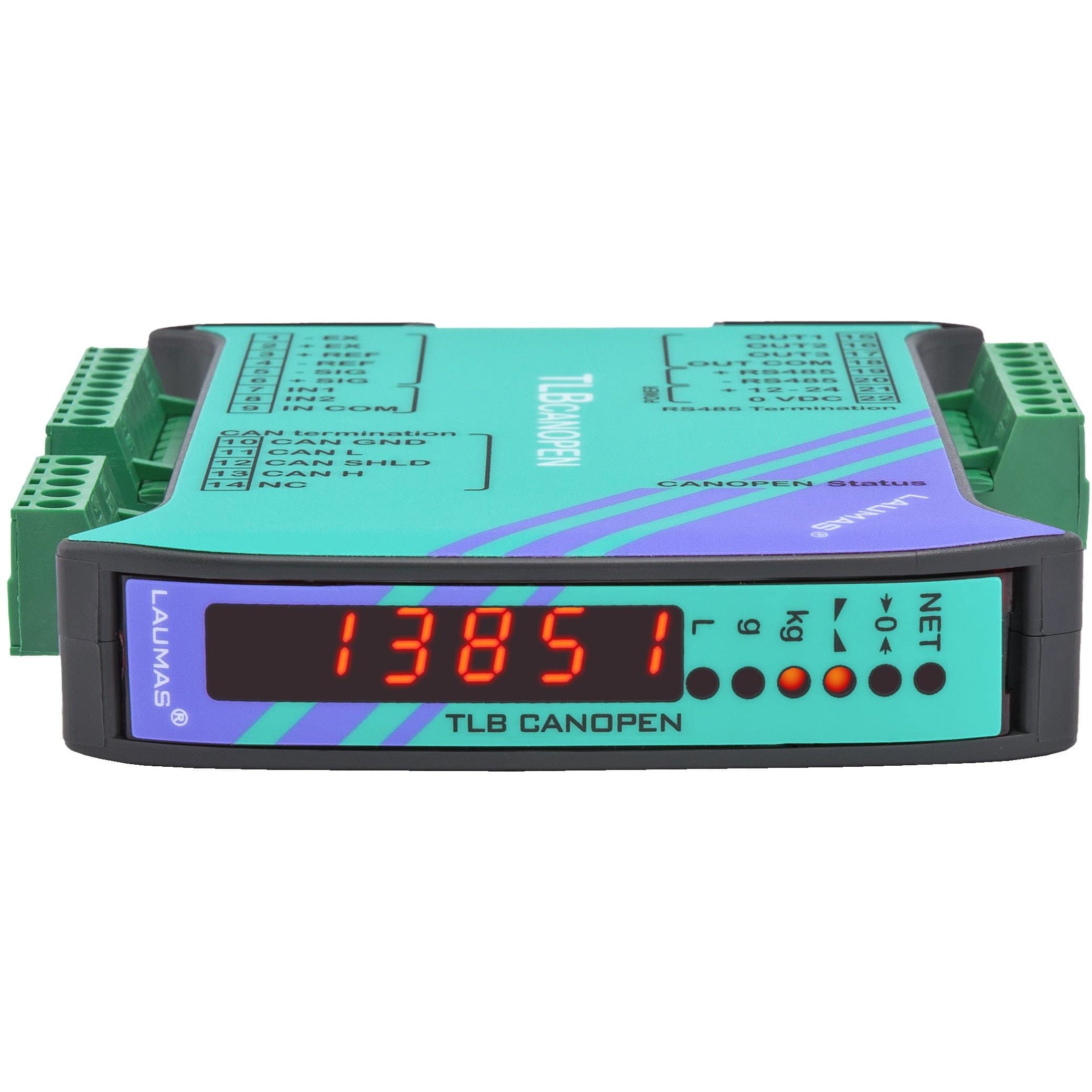

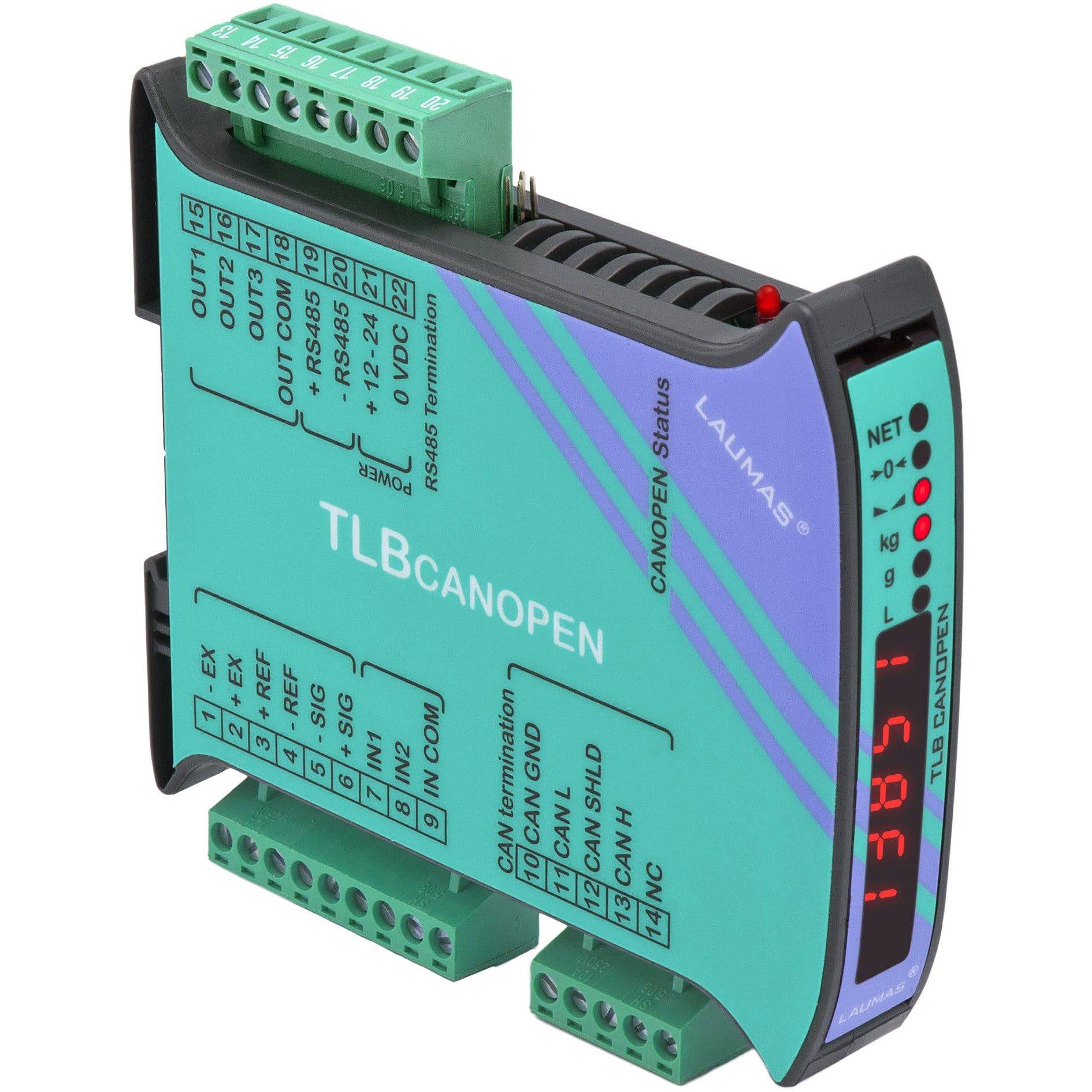

Laumas TLB CANopen weight transmitter

Designed for one load-cell weighing point, the Laumas TLB CANopen brings weight data into the control panel without the need for a separate indicator. This version uses CANopen communication, suited to machines and mobile equipment already built around a CAN-based control network.

DIN-rail mounting keeps panel installation tidy. Alongside the main interface, relay outputs and digital inputs are available for local control duties, with RS485 provided for setup.

Check that the load-cell signal, supply voltage and CANopen interface match the rest of the system.

Model: TLBCANOPEN

Quantity:

£375.00

View Technical Data Sheet (PDF)

Laumas TLB CANopen Weight Transmitter

£375.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Output

1 x CANopen port

Input Range

±39 mV

Number Of Load Cells

1

Excitation Voltage

5 VDC / 120 mA

Accuracy

<0.01% full scale

Digital Inputs

2 x 5 to 24 VDC PNP

Relay Outputs

3 x 115 VAC / 150 mA (max)

Mounting

DIN Rail

Serial Connection

RS485

Analogue / Digital Converter

24 bit (16000000 points) - 4.8 kHz

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

CAN-based machinery

Adds weighing to equipment already designed around CANopen communications.

Single-point weighing

For tanks, hoppers, filling equipment and platforms using one load-cell signal.

PLC Based Process Control

Provides weighing data to PLC-controlled production and process systems.

Machine Builder Integration

Ideal for machine builders integrating weighing functions into industrial equipment.

Features

CANopen connection

Places weighing data on a CANopen network used by compatible machines and mobile equipment.

Compact DIN-rail format

Keeps a single-channel weighing interface neat inside an OEM or plant control panel.

Industrial Network Communications

Supports communication between weighing equipment and automation infrastructure.

Process Control Connectivity

Supports seamless transfer of weighing data into production and automation systems.

FAQs

Why choose the CANopen version of the TLB?

Choose it when the machine or plant uses CANopen and needs weight data from one load-cell weighing point.

Can CANopen systems access weighing diagnostics?

Yes, CANopen versions can provide diagnostic and performance information.

Where are CANopen transmitters commonly used?

CANopen transmitters are widely used in machine building and automation projects.

What advantages does CANopen provide over analogue signals?
