CC-Link Enabled Weight Transmitter for Seamless PLC Integration

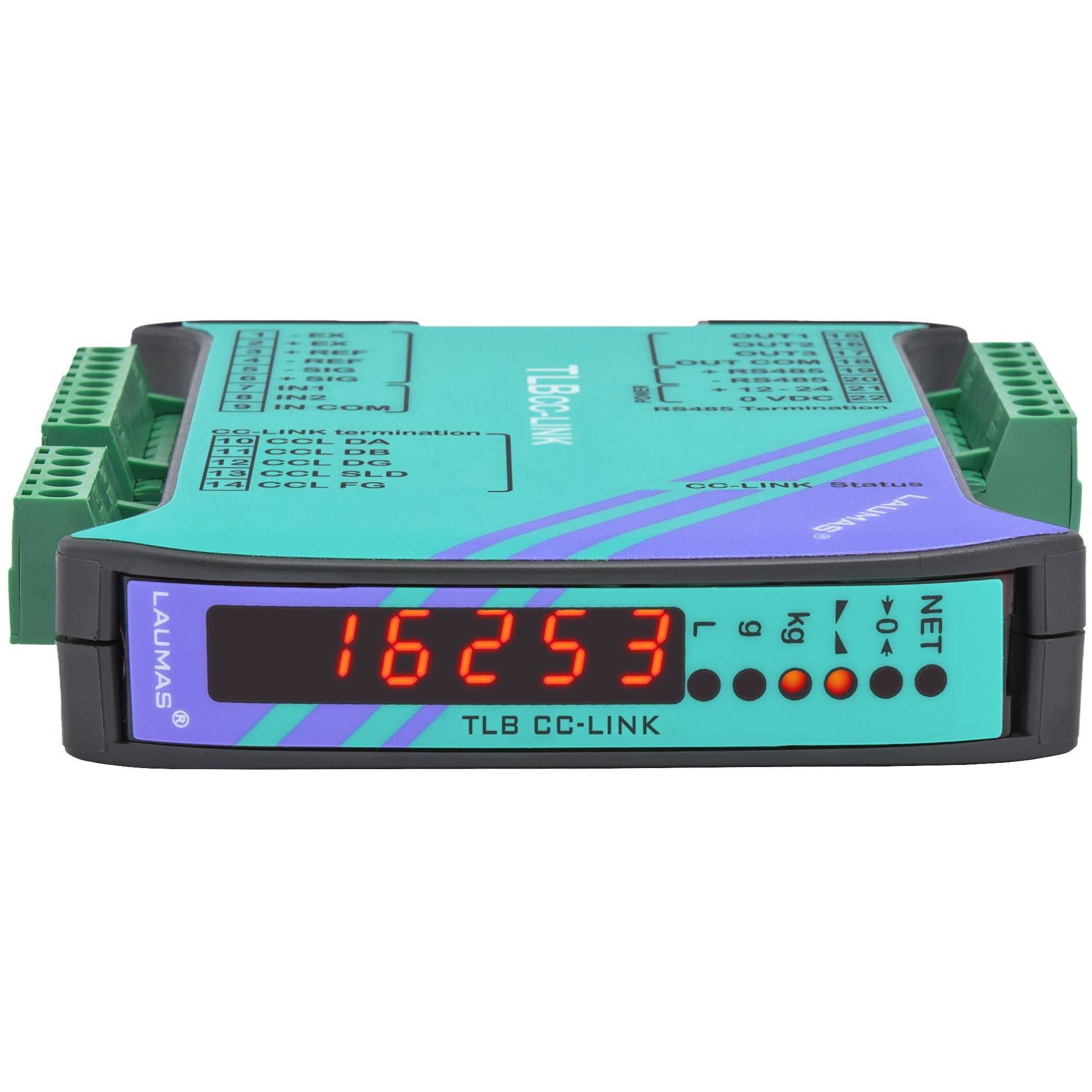

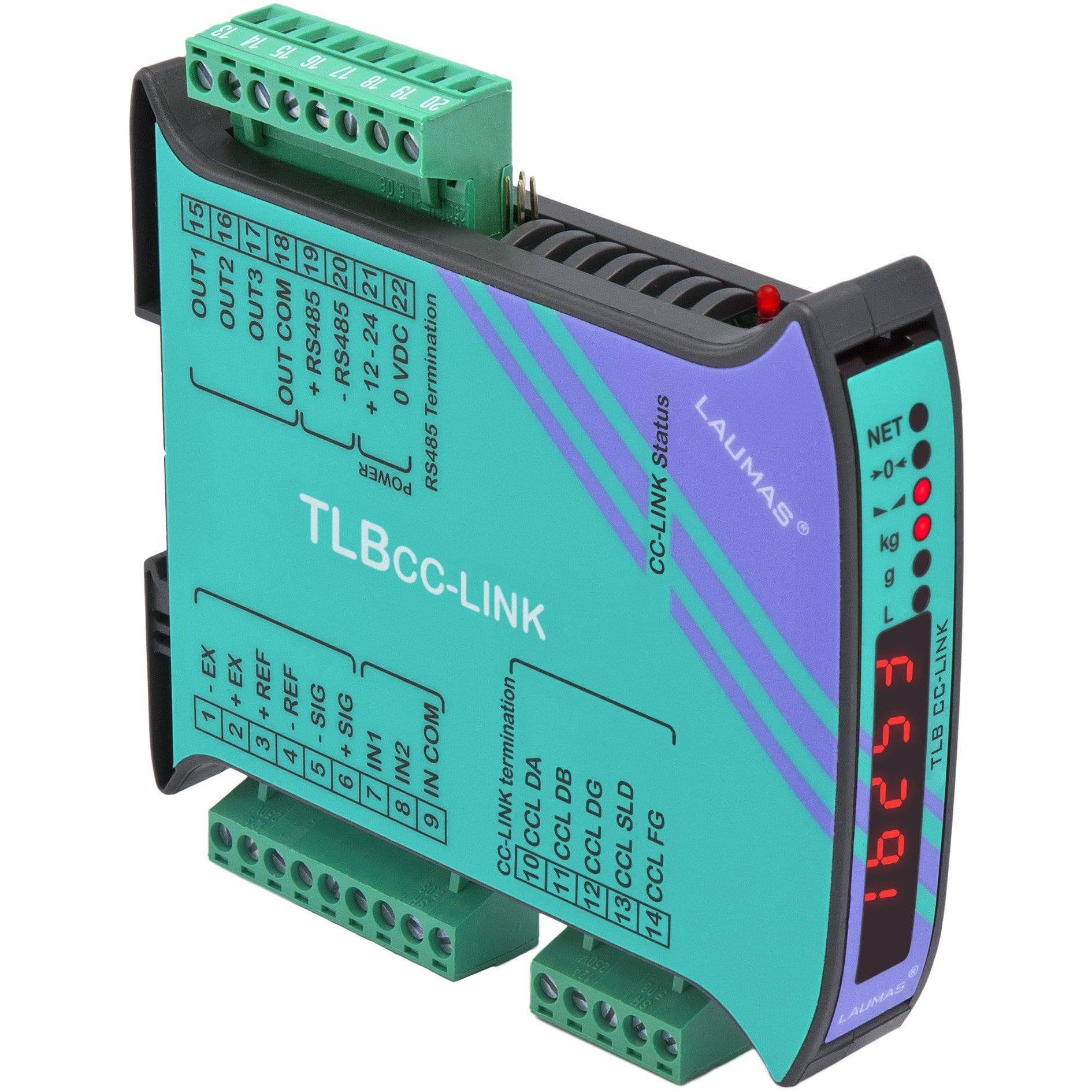

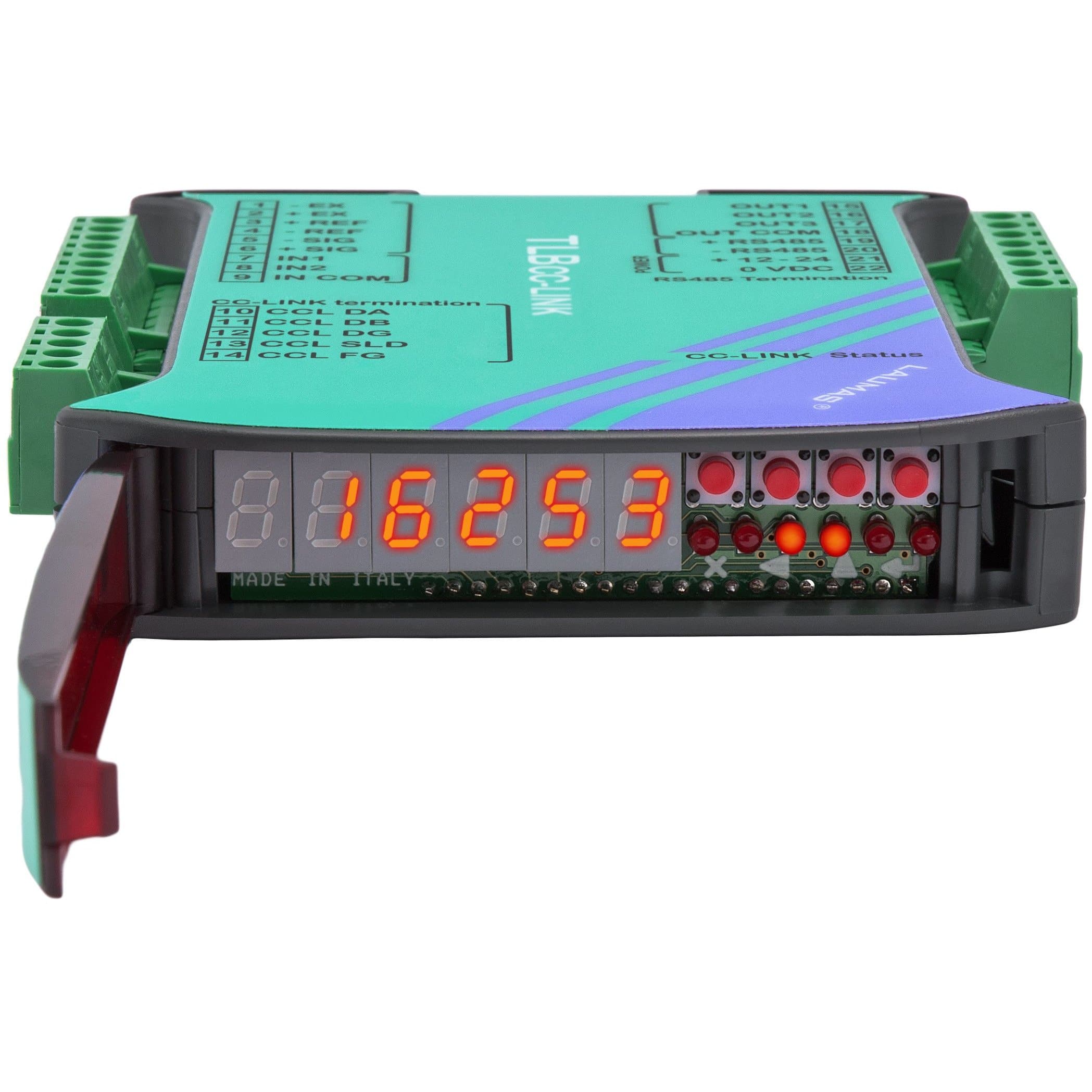

The Laumas TLB CC-Link Weight Transmitter is purpose-built for integration into Mitsubishi Electric CC-Link networks, providing reliable weight signal transmission from a single load cell. Designed for DIN rail installation, this compact transmitter supports both 4- and 6-wire load cells, and delivers high-speed, accurate weight measurements.

Ideal for factory automation and process control applications requiring compatibility with CC-Link protocols, it features rapid data acquisition, status diagnostics, and flexible calibration methods.

Key Features

• CC-Link Communication: Fully compatible with Mitsubishi-based automation systems
• Load Cell Support: Connects 1 × 350 Ω load cell (4- or 6-wire)
• Fast Sampling Rate: Up to 2400 readings/second for real-time feedback
• Industrial Housing: Compact DIN rail-mount ABS enclosure
• Advanced Filtering: Customisable digital filtering for stable readings
• Calibration Options: Theoretical or via standard test weights

Technical Specifications

• Power Supply: 12–24 VDC ±10%
• Input Sensitivity: ±39 mV max
• Excitation Voltage: 5 VDC (max 120 mA)
• Interface: CC-Link
• Resolution: Up to ±50,000 divisions
• Operating Temperature: -10 °C to +40 °C
• Mounting: DIN rail
