TLB RS485 Weight Transmitter

Q: Why choose the RS485 version of the TLB?

Choose it when the machine or plant uses RS485 and needs weight data from one load-cell weighing point.

Q: Can RS485 transmitters integrate with control systems?

Yes, RS485 transmitters integrate with industrial monitoring and control systems.

Q: Where are RS485 load cell transmitters installed?

RS485 transmitters are used across a wide range of industrial installations.

Q: What advantages does RS485 provide?

RS485 is robust, cost-effective and widely supported throughout industry.

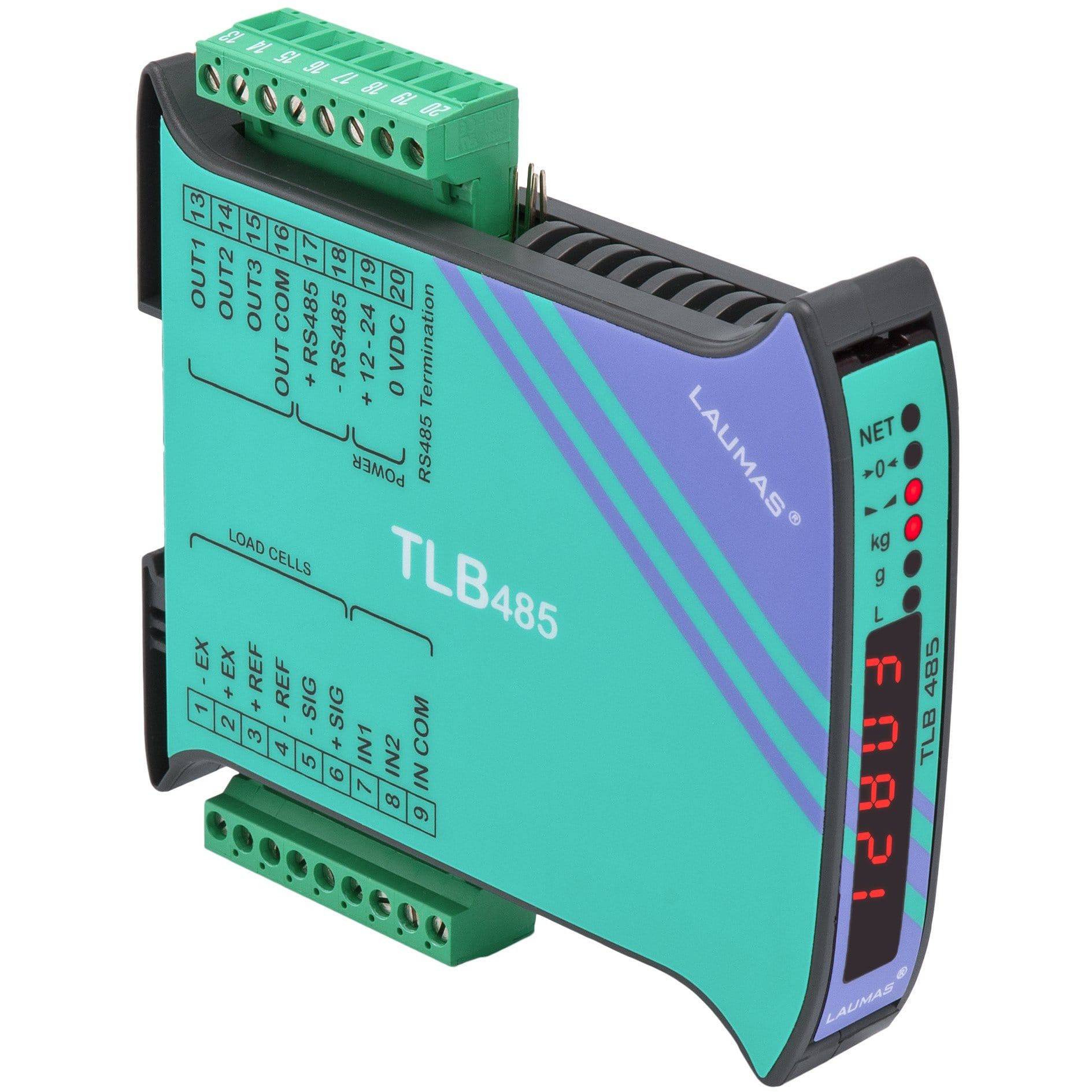

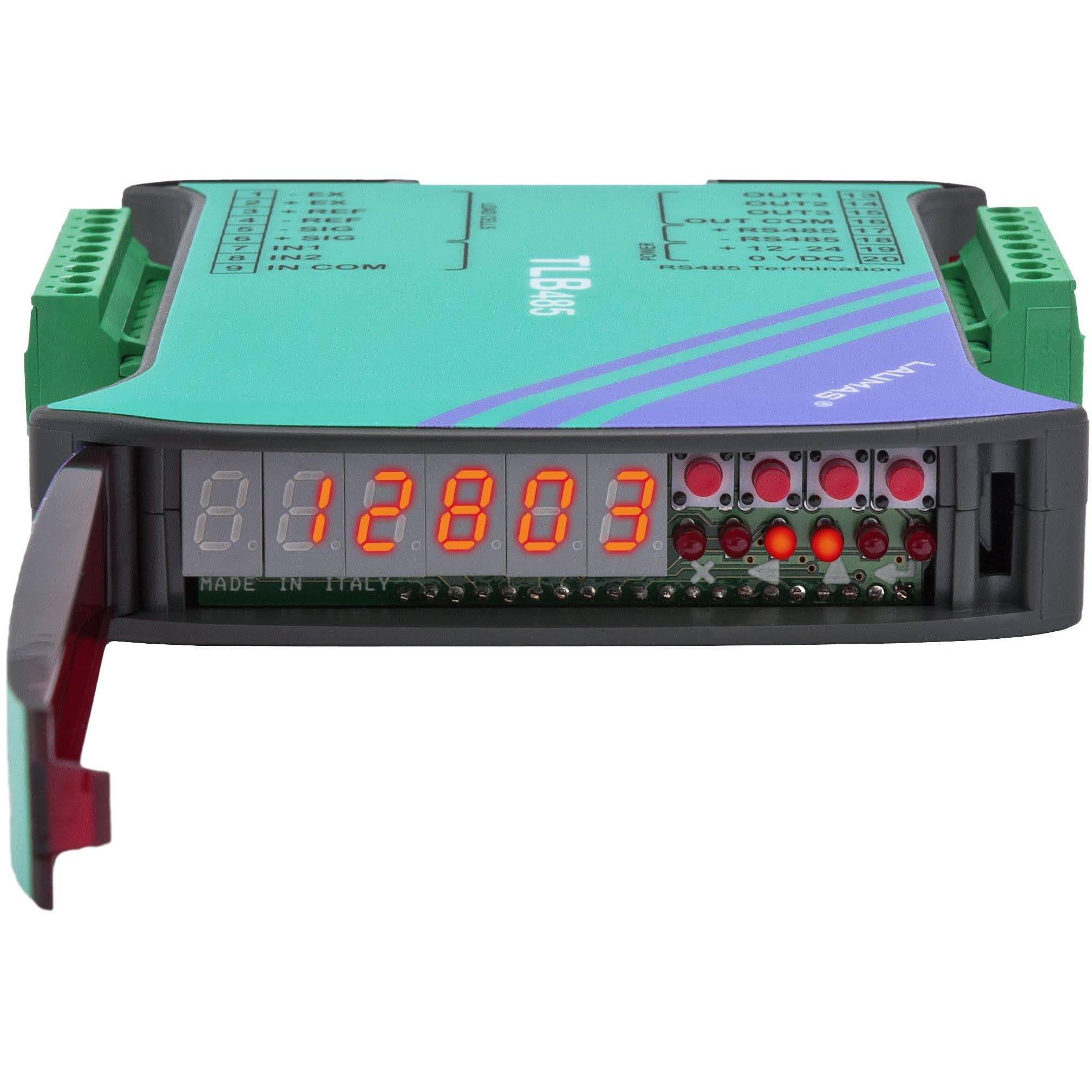

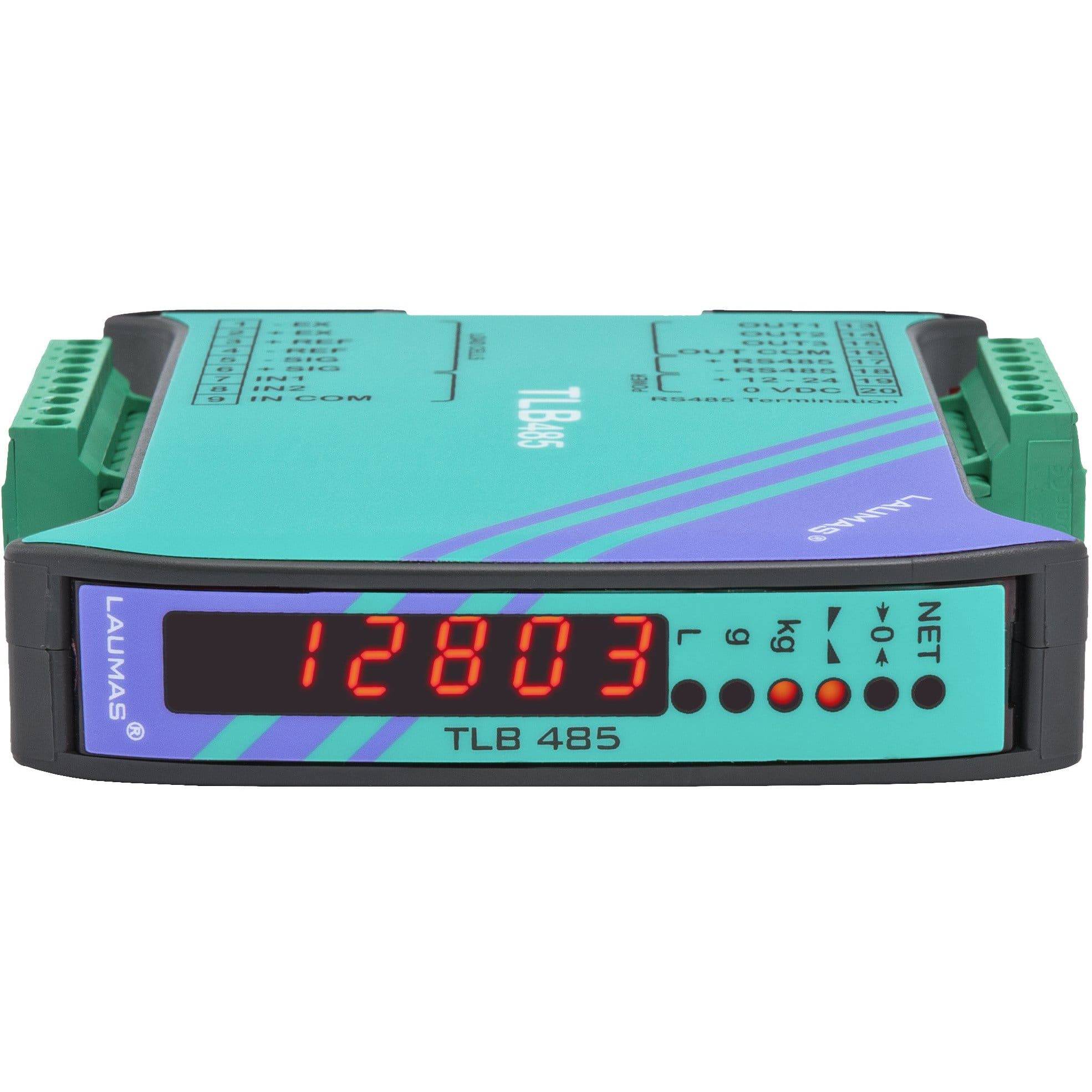

Laumas TLB RS485 weight transmitter

Where a machine needs weight information from a single load-cell system, the Laumas TLB RS485 offers a compact DIN-rail solution. It is equipped with RS485 serial communication for dependable, economical connection to compatible PLCs, displays and control equipment.

It is a good fit for tanks, hoppers, platforms, filling machines and purpose-built equipment. Relay outputs and digital inputs can handle local process functions, while the RS485 service connection aids setup and commissioning.

Check that the load-cell signal, supply voltage and RS485 interface match the rest of the system.

Model: TLB485

Quantity:

£196.00

View Technical Data Sheet (PDF)

Laumas TLB RS485 Weight Transmitter

£196.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Output

1 x RS485 serial port

Input Range

±39 mV

Number Of Load Cells

1

Excitation Voltage

5 VDC / 120 mA

Accuracy

<0.01% full scale

Digital Inputs

2 x 5 to 24 VDC PNP

Relay Outputs

3 x 115 VAC / 150 mA (max)

Mounting

DIN Rail

Serial Connection

RS485

Analogue / Digital Converter

24 bit (16000000 points) - 4.8 kHz

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Local process systems

Suitable for short- and medium-distance serial links within machinery and control panels.

Single-point weighing

For tanks, hoppers, filling equipment and platforms using one load-cell signal.

PLC Based Process Control

Provides weighing data to PLC-controlled production and process systems.

Machine Builder Integration

Ideal for machine builders integrating weighing functions into industrial equipment.

Features

RS485 serial connection

Offers a dependable and economical link to compatible PLCs, displays and controllers.

Compact DIN-rail format

Keeps a single-channel weighing interface neat inside an OEM or plant control panel.

Industrial Network Communications

Supports communication between weighing equipment and automation infrastructure.

Process Control Connectivity

Supports seamless transfer of weighing data into production and automation systems.

FAQs

Why choose the RS485 version of the TLB?

Choose it when the machine or plant uses RS485 and needs weight data from one load-cell weighing point.

Can RS485 transmitters integrate with control systems?

Yes, RS485 transmitters integrate with industrial monitoring and control systems.

Where are RS485 load cell transmitters installed?

RS485 transmitters are used across a wide range of industrial installations.

What advantages does RS485 provide?
