TLB4 Analogue Weight Transmitter

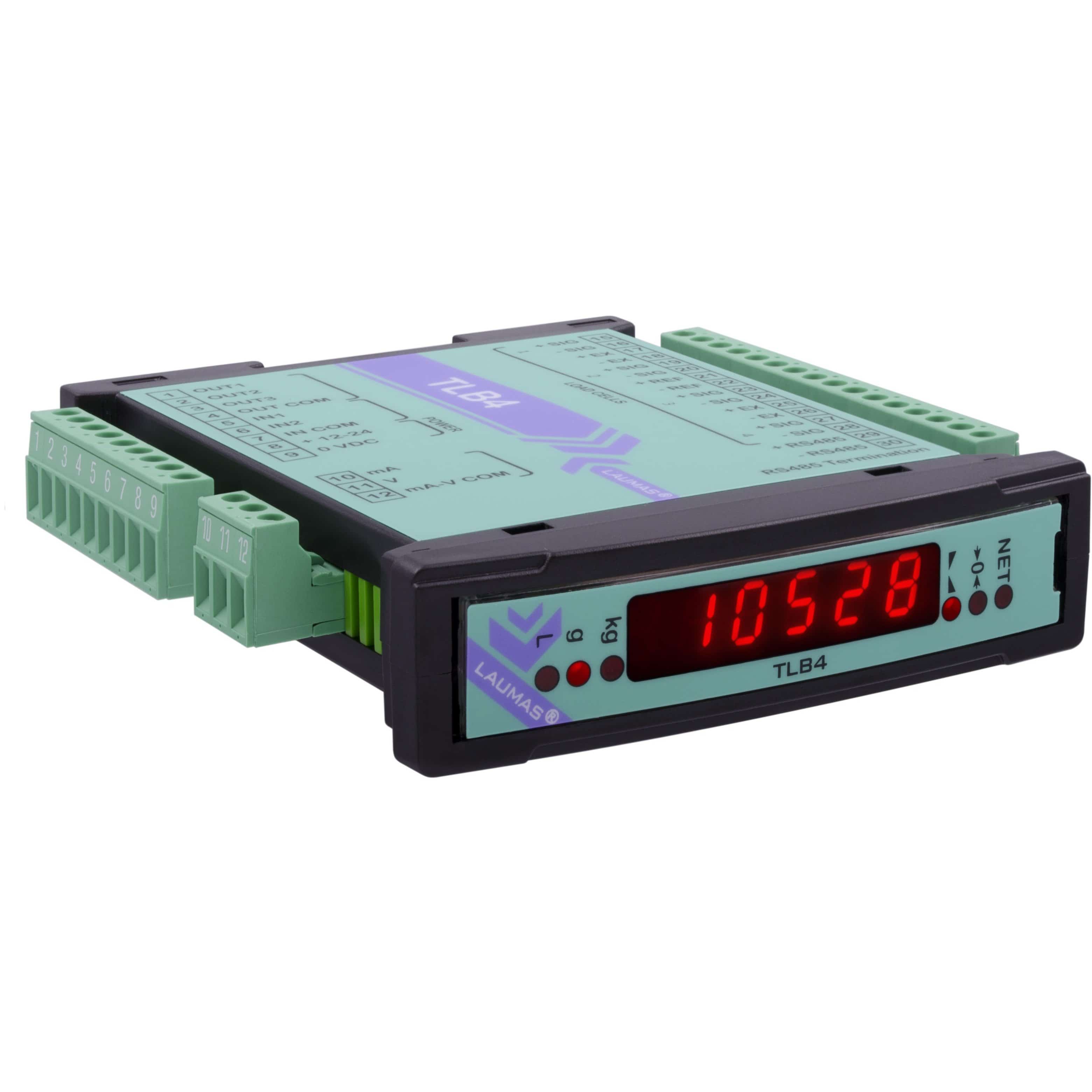

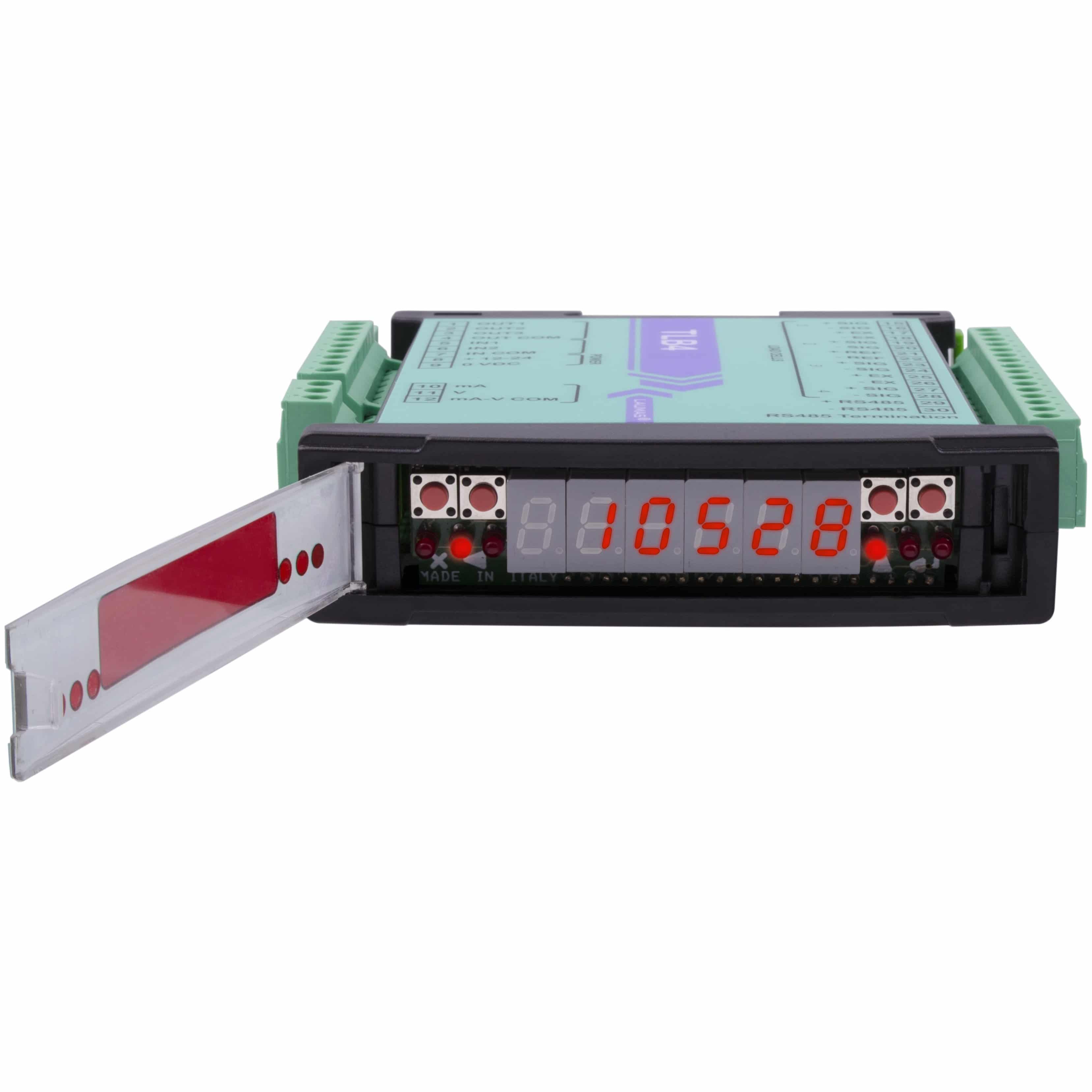

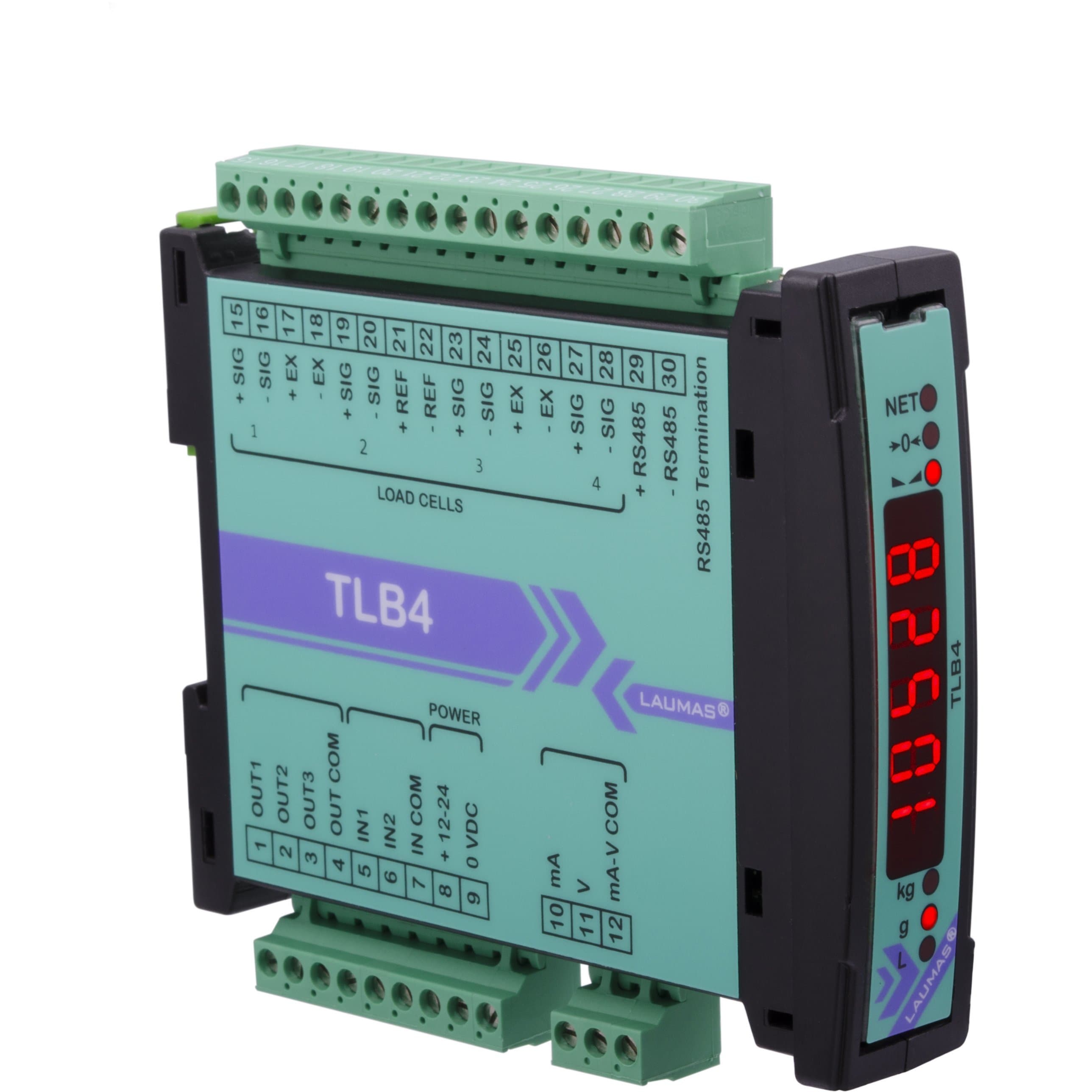

Laumas TLB4 Analogue weight transmitter

With four separate load-cell inputs, the Laumas TLB4 Analogue gives engineers more information than a single combined junction-box signal. Digital equalisation simplifies corner adjustment and individual channel readings help with fault finding.

Its main interface is a configurable analogue output, making it a practical choice for existing PLCs, indicators and control systems that accept an analogue weight signal. The result is a useful option for OEM panels and plant upgrades where four-channel diagnostics matter.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and Analogue network configuration when specifying the transmitter.

Model: TLB4

Why is calibration important?

Quantity:

£310.80

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

View Technical Data Sheet (PDF)

Laumas TLB4 Analogue Weight Transmitter

£310.80

Learn More

Technical Specification

Fieldbus Output

Current: 0÷20 mA; 4÷20 mA. Voltage: 0÷10 V; 0÷5 V; ±10 V; ±5 V

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

PLC and indicator retrofits

A practical option when the existing controller already accepts an analogue process signal.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

Configurable analogue output

Sends a weight signal to compatible analogue inputs without adding a fieldbus gateway.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.

FAQs

What does the Analogue TLB4 add to a weighing system?

It combines four-channel monitoring and digital equalisation with a Analogue connection to the control system.

How does digital load cell equalisation improve weighing accuracy?

Digital equalisation allows load cells to be balanced electronically, improving weighing consistency.

What applications is the TLB4 commonly used in?

TLB4 transmitters are commonly used in tanks, silos, hoppers and process weighing systems.

What makes the TLB4 different from a traditional junction box?

The TLB4 provides digital equalisation, diagnostics and individual load cell monitoring rather than passive signal summing.
