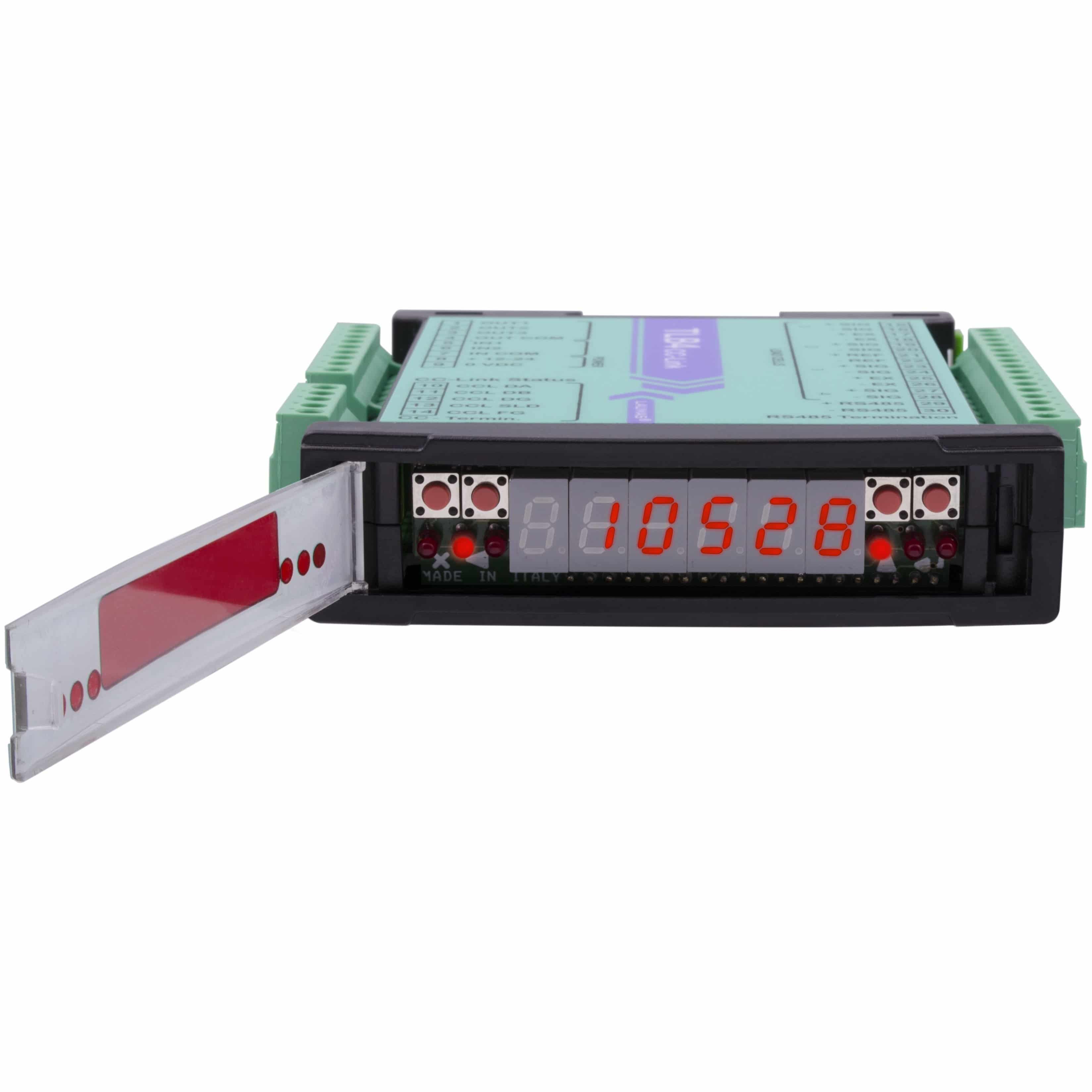

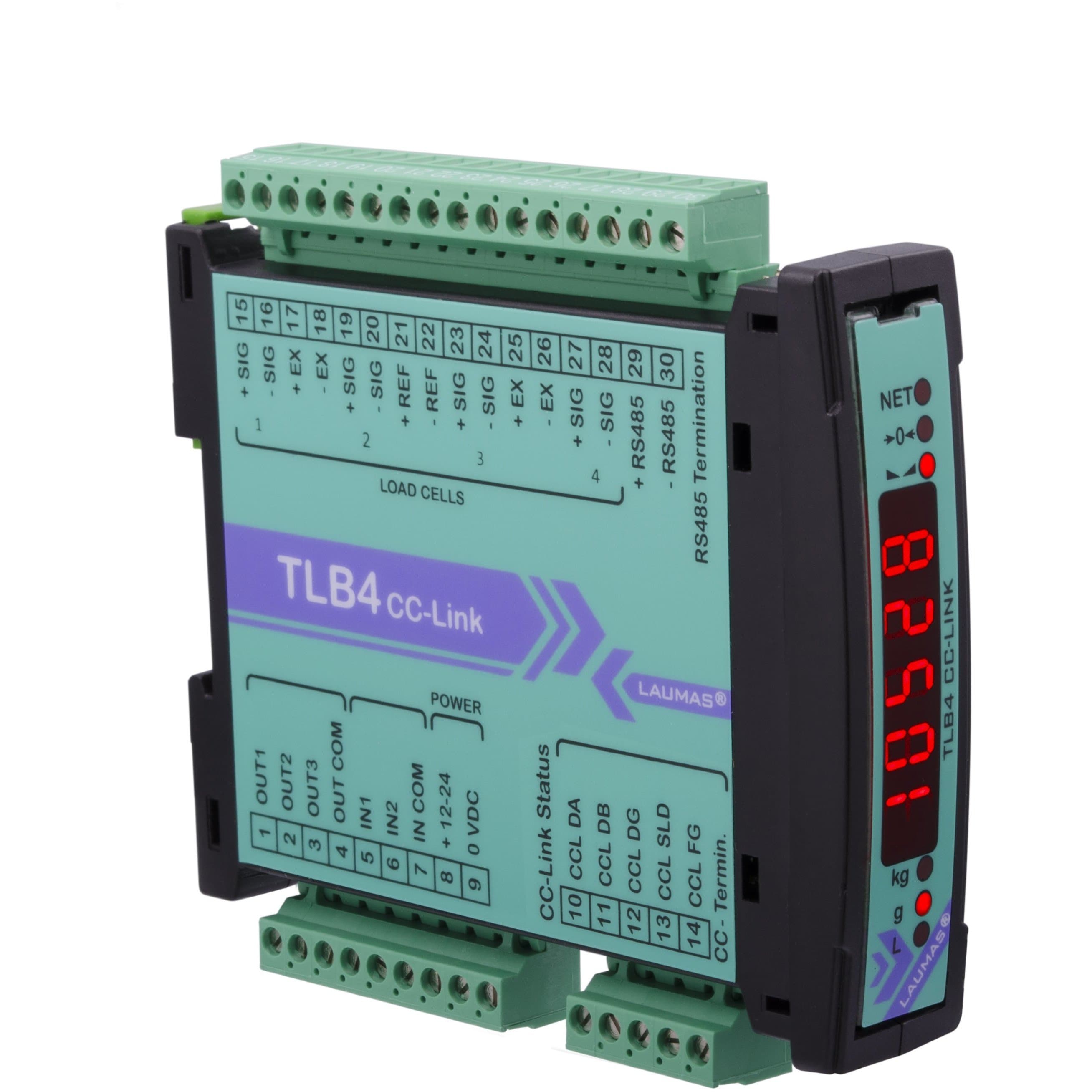

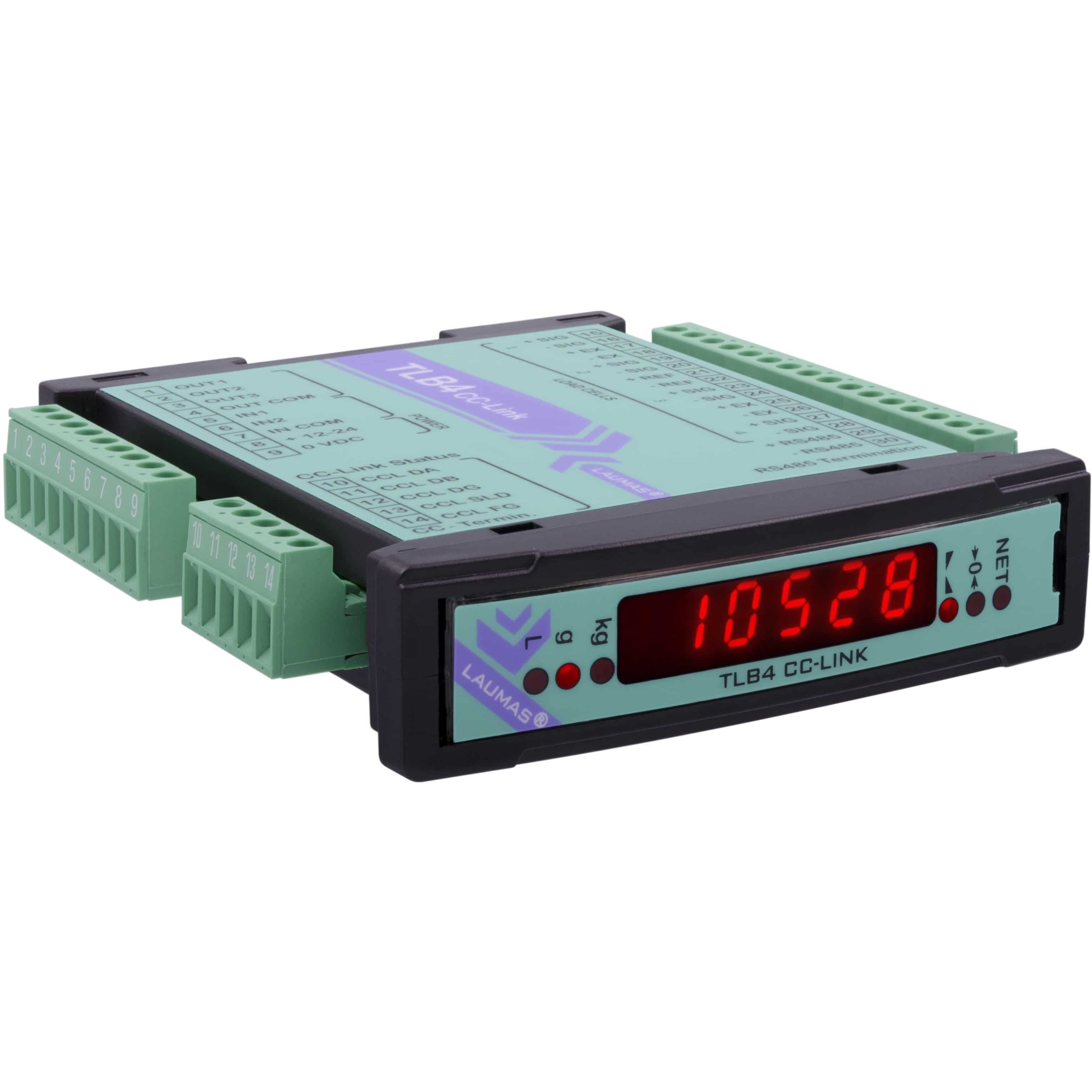

Laumas TLB4 CC-Link weight transmitter

The Laumas TLB4 CC-Link is made for weighing systems that use up to four load-cell inputs. Each channel can be viewed and balanced individually, which makes commissioning easier and helps identify an uneven load or a faulty sensor.

For control-system integration it uses CC-Link communication for installations using Mitsubishi and other compatible factory-automation equipment. Typical applications include vessel weighing, batching equipment and multi-cell platforms.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and CC-Link network configuration when specifying the transmitter.

Model: TLB4CCLINK

Quantity:

£529.00

View Technical Data Sheet (PDF)

Laumas TLB4 CC-Link Weight Transmitter

£529.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

CC-Link port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

CC-Link production lines

Designed for plant and machinery where CC-Link is the established network.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

CC-Link connection

Connects the weighing point to compatible CC-Link factory-automation equipment.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.

FAQs

What does the CC-Link TLB4 add to a weighing system?

It combines four-channel monitoring and digital equalisation with a CC-Link connection to the control system.

Can CC-Link systems monitor individual load cells?

Yes, CC-Link versions can monitor individual load cell channels.

Where are CC-Link weight transmitters typically installed?

CC-Link transmitters are commonly installed within automated manufacturing facilities.

Why choose CC-Link over analogue weighing signals?

CC-Link allows weighing data to become part of a wider industrial automation system.
