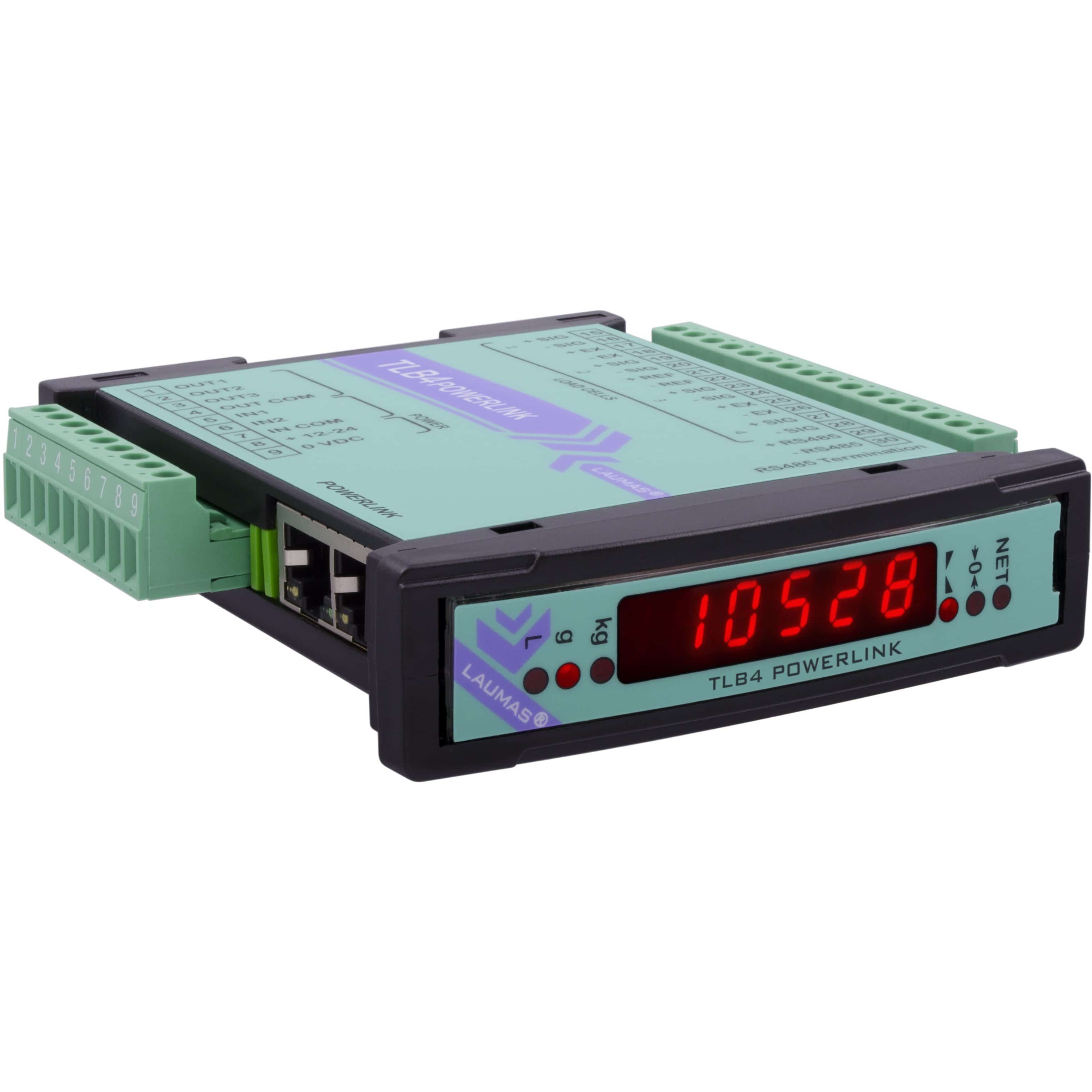

Laumas TLB4 POWERLINK Weight Transmitter

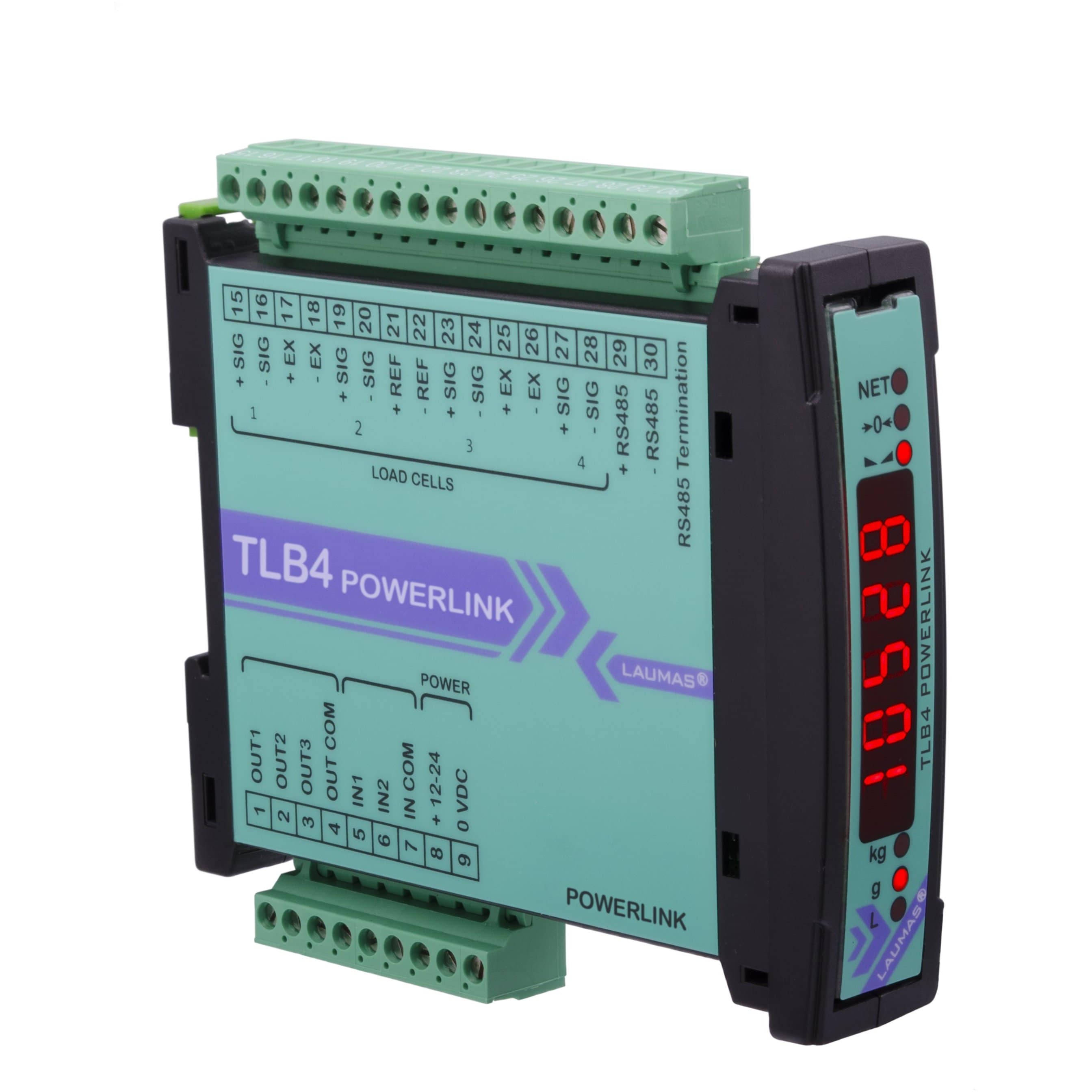

Alternative view of the Laumas TLB4 POWERLINK Weight Transmitter

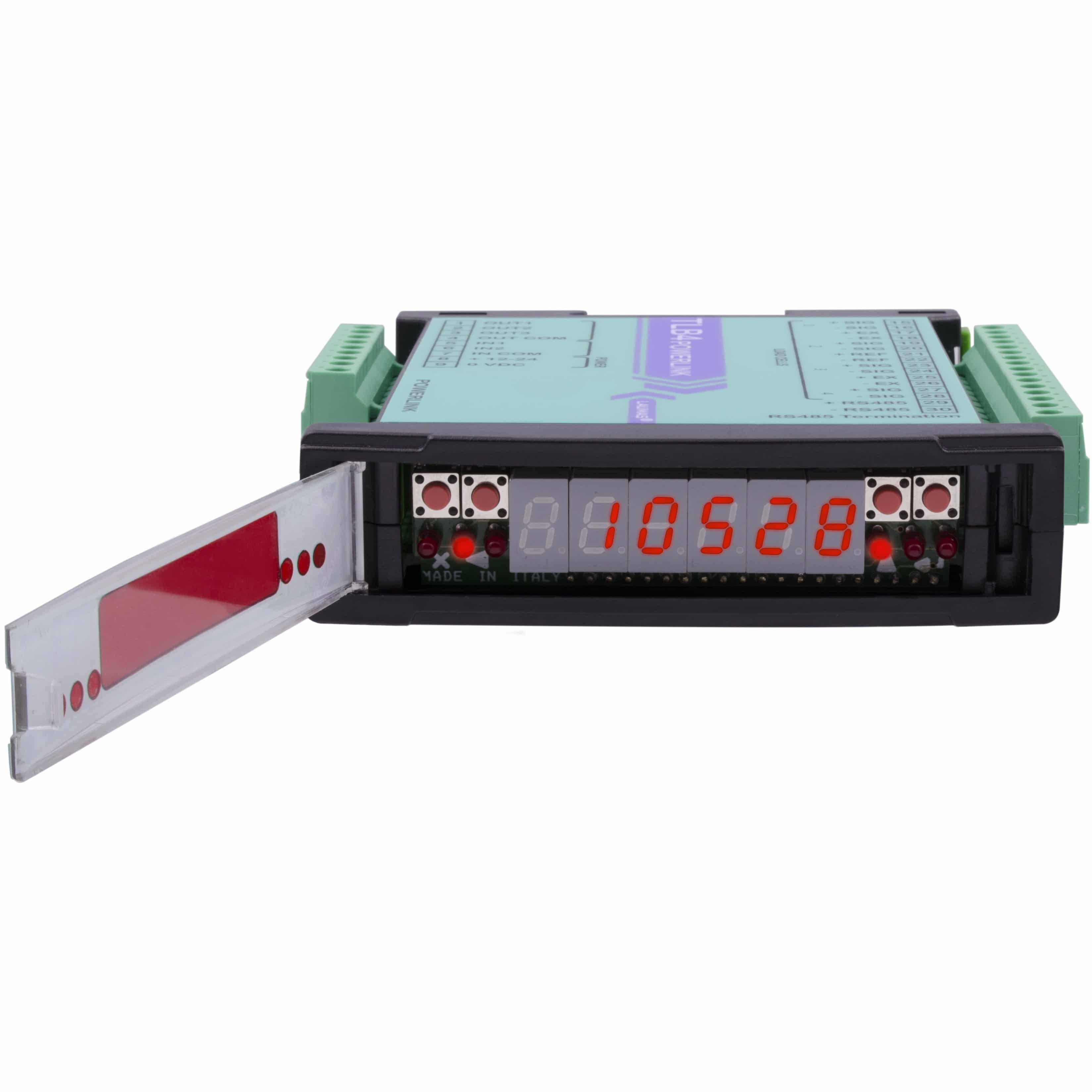

Laumas TLB4 POWERLINK Weight Transmitter connection and mounting detail
Laumas

TLB4 POWERLINK Weight Transmitter

Laumas TLB4 POWERLINK weight transmitter

The Laumas TLB4 POWERLINK is made for weighing systems that use up to four load-cell inputs. Each channel can be viewed and balanced individually, which makes commissioning easier and helps identify an uneven load or a faulty sensor.

For control-system integration it uses POWERLINK communication for deterministic Ethernet-based machine control and coordinated automation. Typical applications include vessel weighing, batching equipment and multi-cell platforms.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and POWERLINK network configuration when specifying the transmitter.

Model: TLB4POWERLINK

Model
Why is calibration important?
Sale price£587.19

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

Ask GNW a Question

Need help choosing the correct instrument? Send our team your question.

Product: TLB4 POWERLINK Weight Transmitter
View Technical Data Sheet (PDF)

Learn More

Technical Specification

Fieldbus Output
2x POWERLINK ports
Secondary Communication
RS485 port (Modbus RTU/Laumas ASCII protocol)
Power Supply
12–24 VDC ±10%
Load Cell Input
1 (350 R) - 4/6 wires. 5 VDC/240 mA
Measuring Range
±39 mV
Accuracy
±0.01% of full scale
Digital Inputs
Qty 2, 5 to 24 VDC PNP
Relay Outputs
Qty 3, max 115 VAC/150 mA
A/D Converter
1 channels - 24 bit (16000000 points) - 4.8 kHz
Mounting
DIN rail installation
OIML Certification
OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Coordinated automation

Intended for machinery that uses POWERLINK for deterministic network communication.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

POWERLINK connection

Integrates weighing with compatible real-time Ethernet machine-control systems.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.
