Laumas TLB4 PROFIBUS DP Weight Transmitter

TLB4 PROFIBUS DP Weight Transmitter

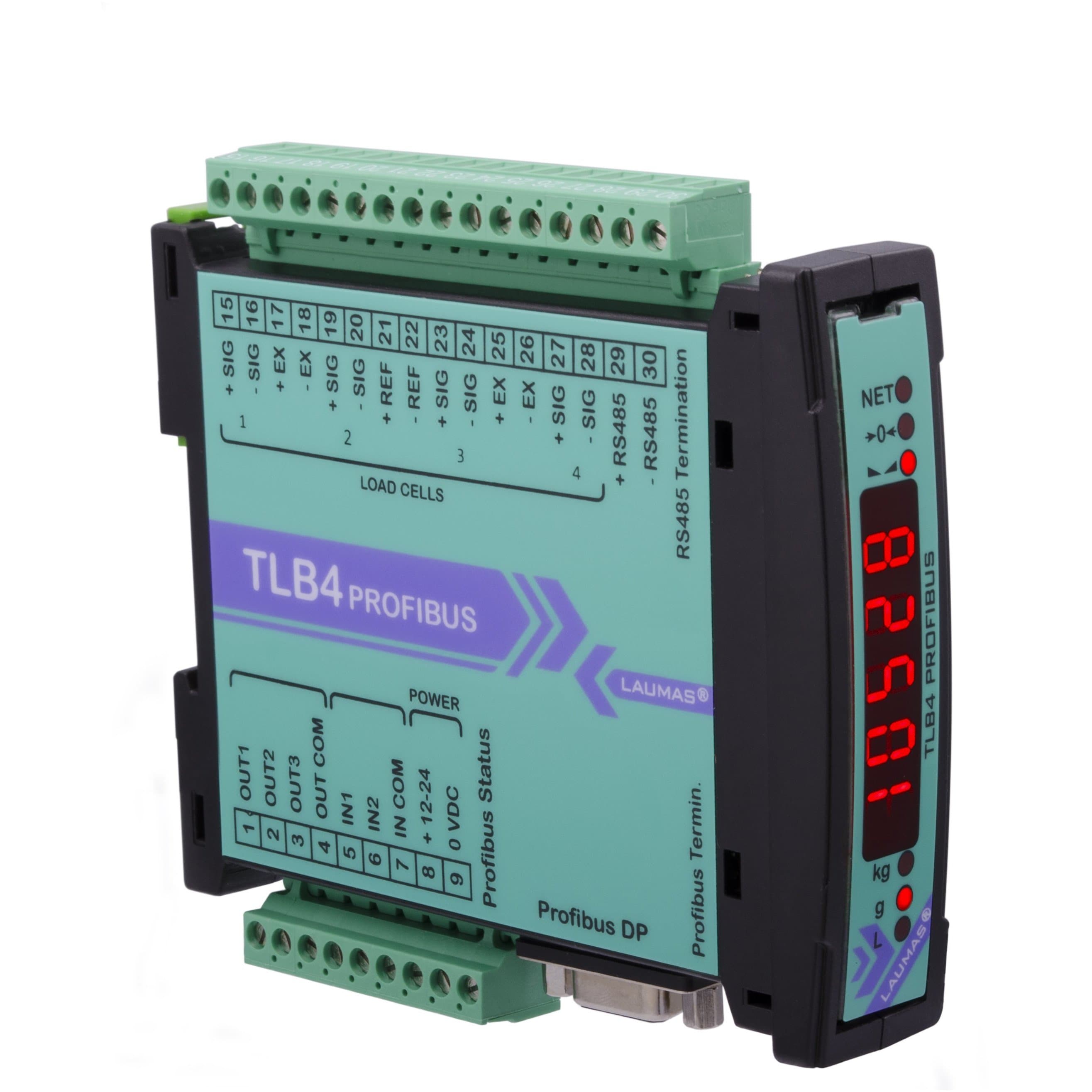

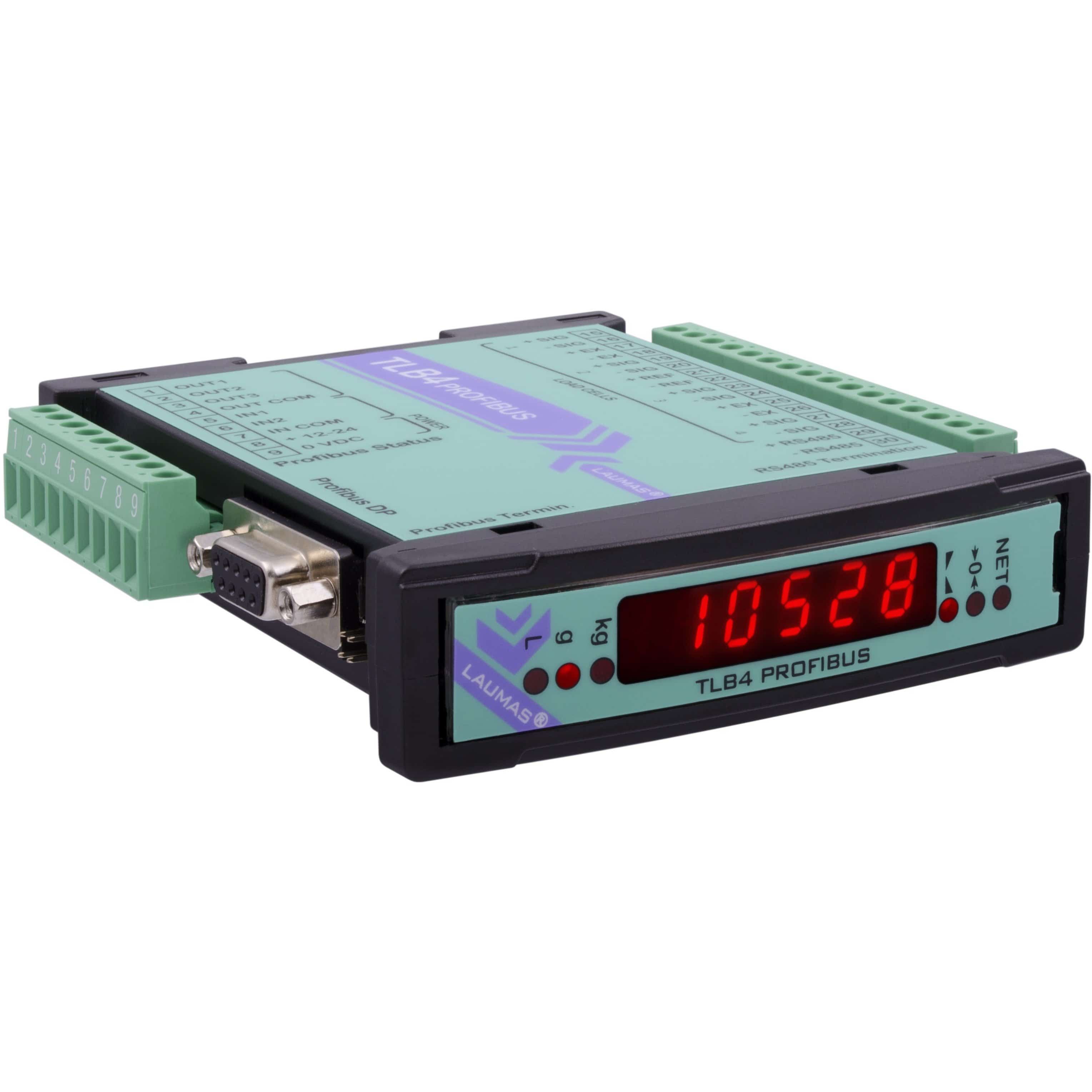

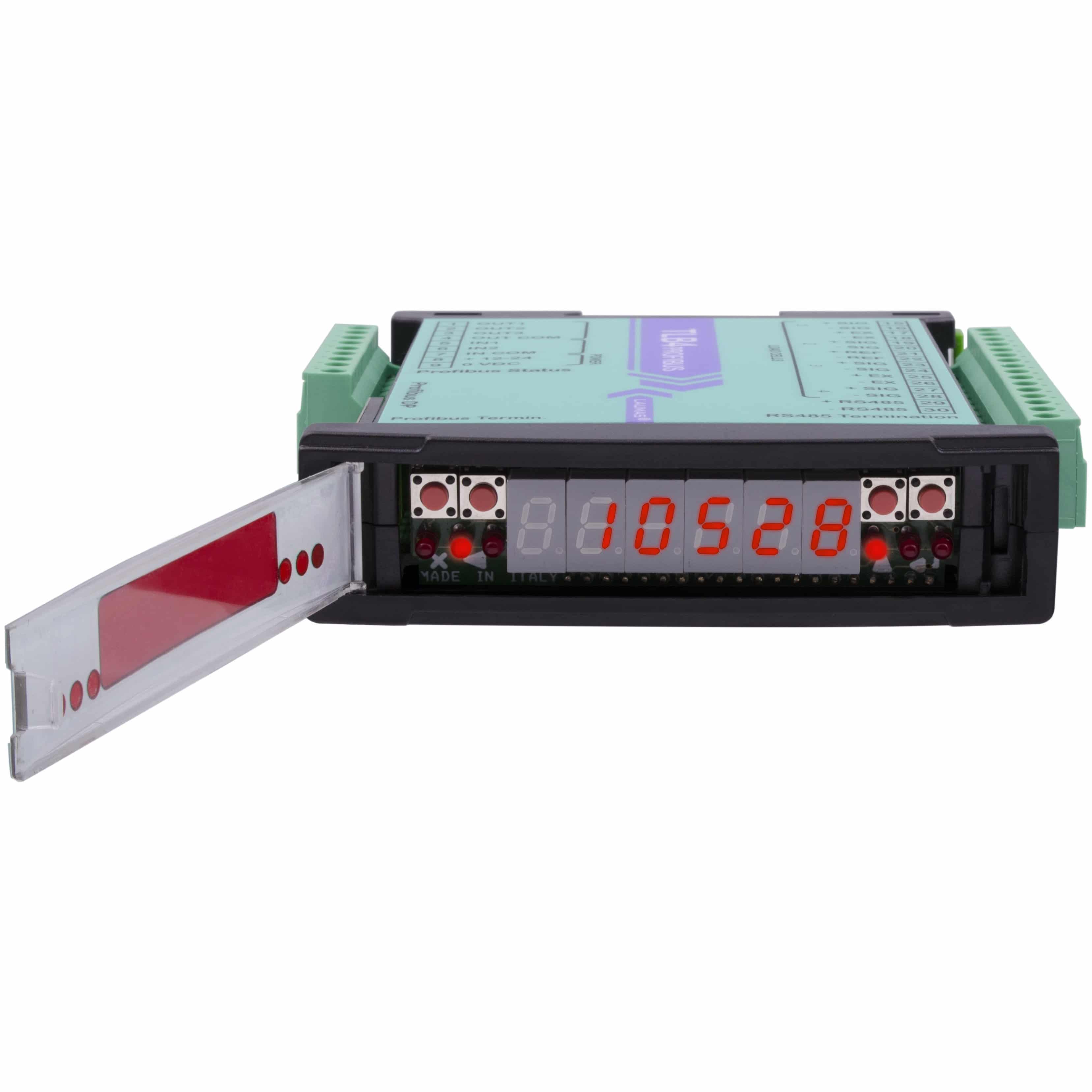

Laumas TLB4 PROFIBUS DP weight transmitter

With four separate load-cell inputs, the Laumas TLB4 PROFIBUS DP gives engineers more information than a single combined junction-box signal. Digital equalisation simplifies corner adjustment and individual channel readings help with fault finding.

Its main interface is PROFIBUS DP communication, making it suitable for established process and factory-automation networks. The result is a useful option for OEM panels and plant upgrades where four-channel diagnostics matter.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and PROFIBUS DP network configuration when specifying the transmitter.

Model: TLB4PROFIBUS

Quantity:

£410.00

View Technical Data Sheet (PDF)

Laumas TLB4 PROFIBUS DP Weight Transmitter

£410.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

Profibus DP port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Established automation systems

Well suited to plant where PROFIBUS DP remains the standard control interface.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

PROFIBUS DP connection

Adds the weighing point to an established PROFIBUS DP process or factory network.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.

FAQs

What does the PROFIBUS DP TLB4 add to a weighing system?

It combines four-channel monitoring and digital equalisation with a PROFIBUS DP connection to the control system.

Can PROFIBUS systems access load cell diagnostics?

Yes, PROFIBUS versions provide access to diagnostic information.

Where are PROFIBUS weighing modules installed?

PROFIBUS modules are commonly installed in established automation environments.

What makes PROFIBUS suitable for weighing systems?

PROFIBUS offers proven reliability and compatibility with established industrial systems.
