Laumas TLB4 PROFINET IO Weight Transmitter

TLB4 PROFINET IO Weight Transmitter

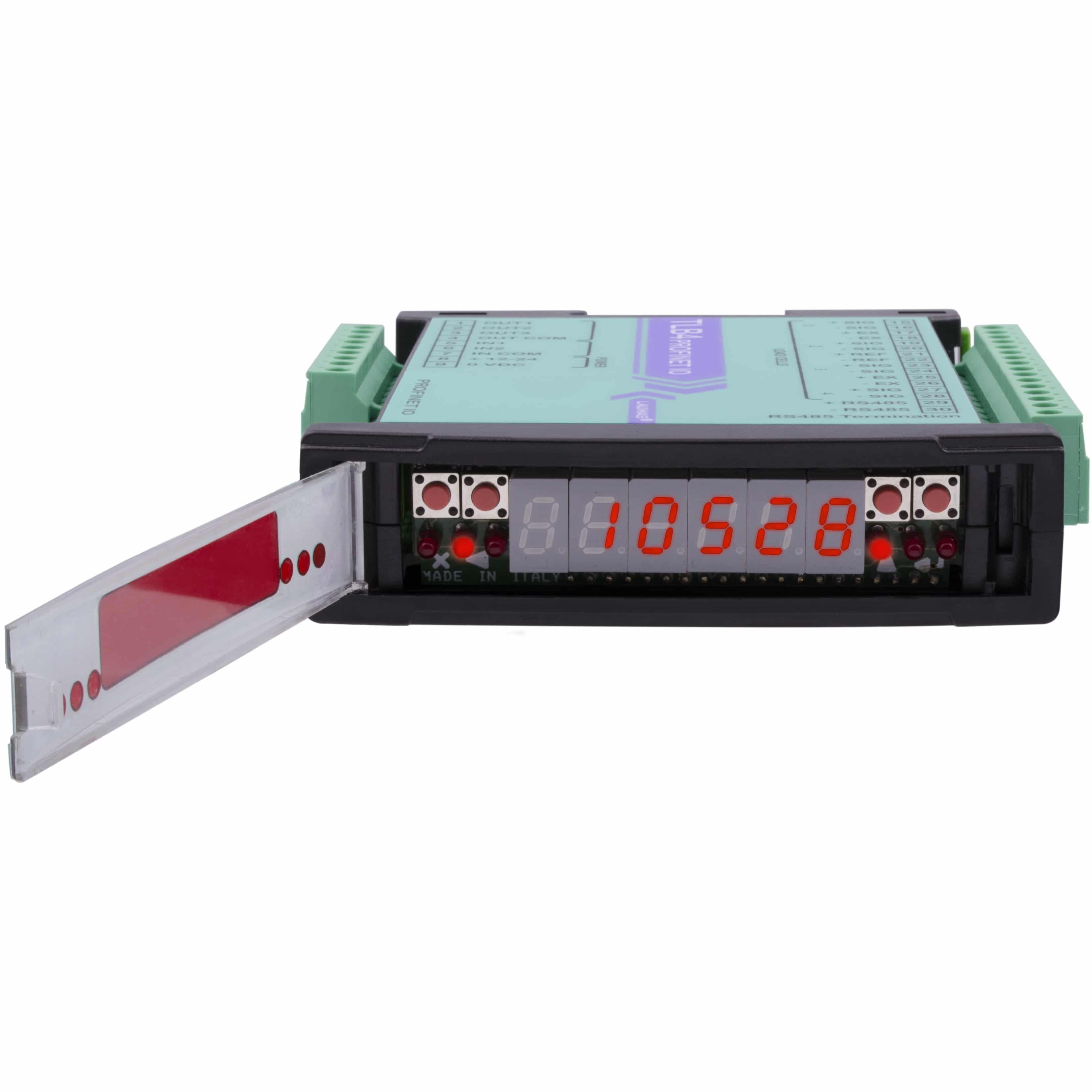

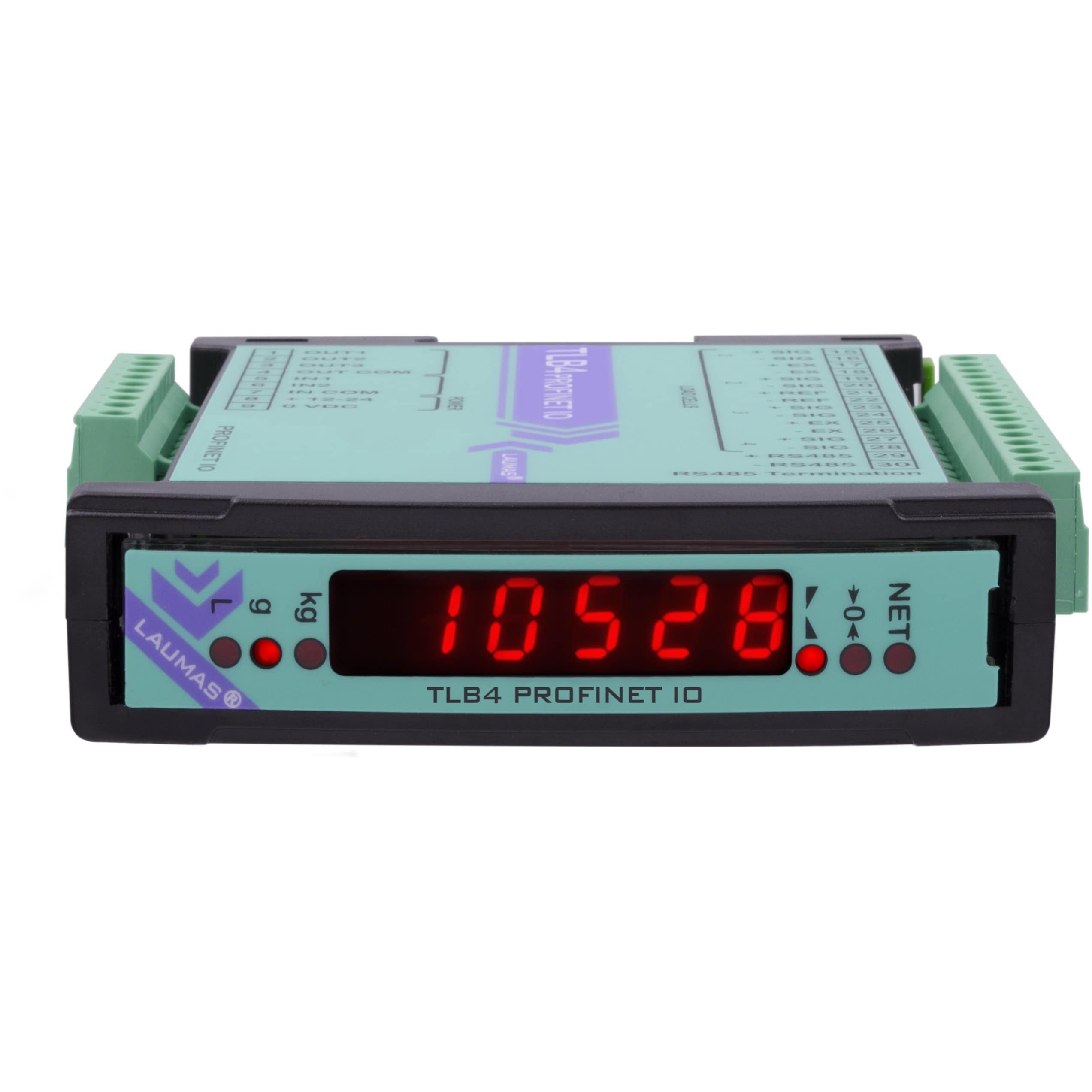

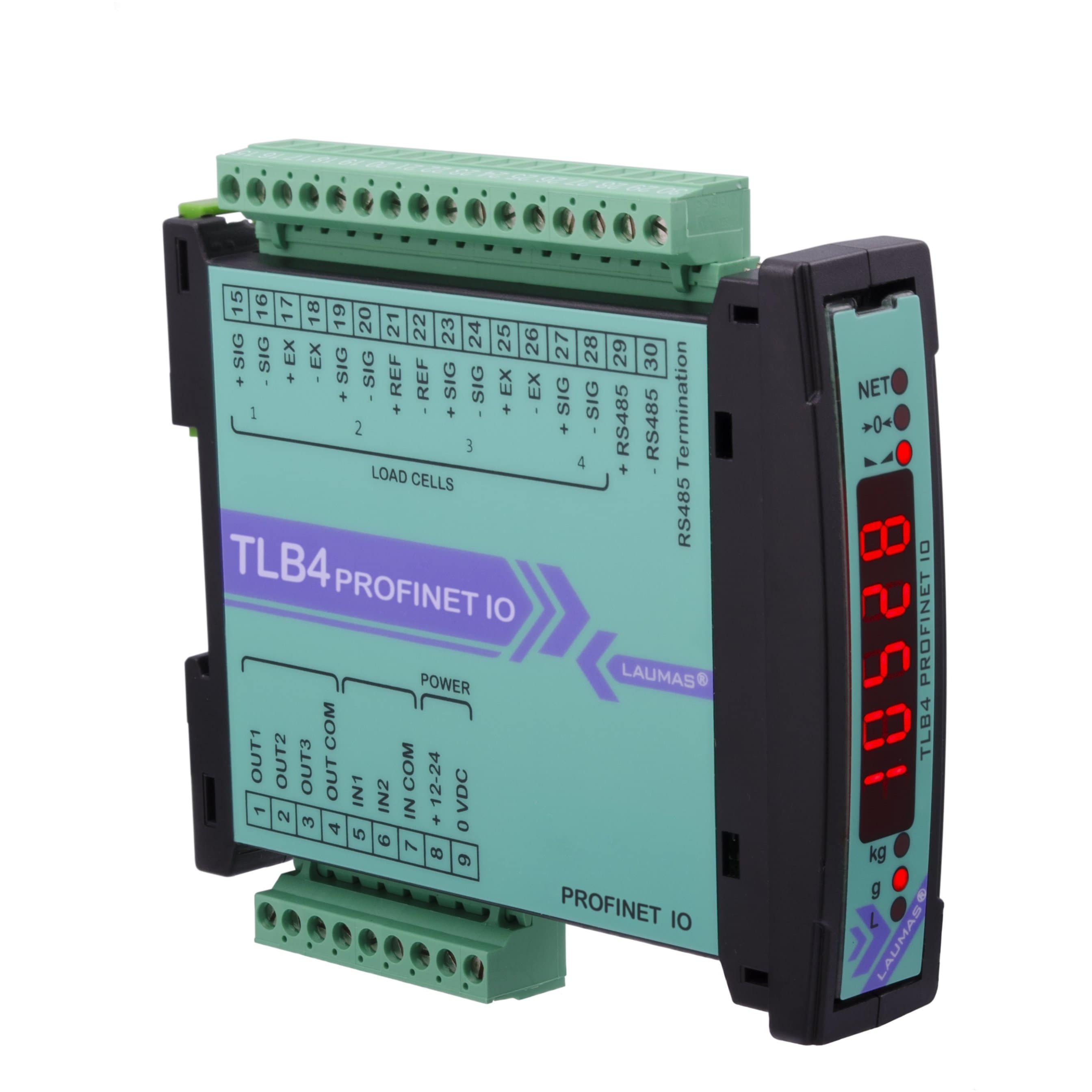

Laumas TLB4 PROFINET IO weight transmitter

The Laumas TLB4 PROFINET IO combines up to four load-cell channels in a compact DIN-rail transmitter. Rather than hiding the individual signals, it retains channel-level information for balancing, setup and diagnostics.

This model connects through PROFINET IO communication for modern Siemens-led and compatible industrial automation systems. It suits tanks, hoppers and platform systems where maintenance staff need a clearer view of load distribution.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and PROFINET IO network configuration when specifying the transmitter.

Model: TLB4PROFINETIO

Quantity:

£529.00

View Technical Data Sheet (PDF)

Laumas TLB4 PROFINET IO Weight Transmitter

£529.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

2x Profinet IO ports

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Modern PLC installations

Designed for new machinery and plant upgrades built around PROFINET IO.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

PROFINET IO connection

Feeds weighing data directly into compatible PROFINET IO automation systems.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.

FAQs

What does the PROFINET IO TLB4 add to a weighing system?

It combines four-channel monitoring and digital equalisation with a PROFINET IO connection to the control system.

Does PROFINET support individual load cell monitoring?

Yes, PROFINET versions support monitoring of individual load cell channels.

What industries use PROFINET weighing systems?

PROFINET is widely used in modern manufacturing and process facilities.

Why choose PROFINET IO for weighing integration?

PROFINET provides seamless integration with modern PLC and automation platforms.
