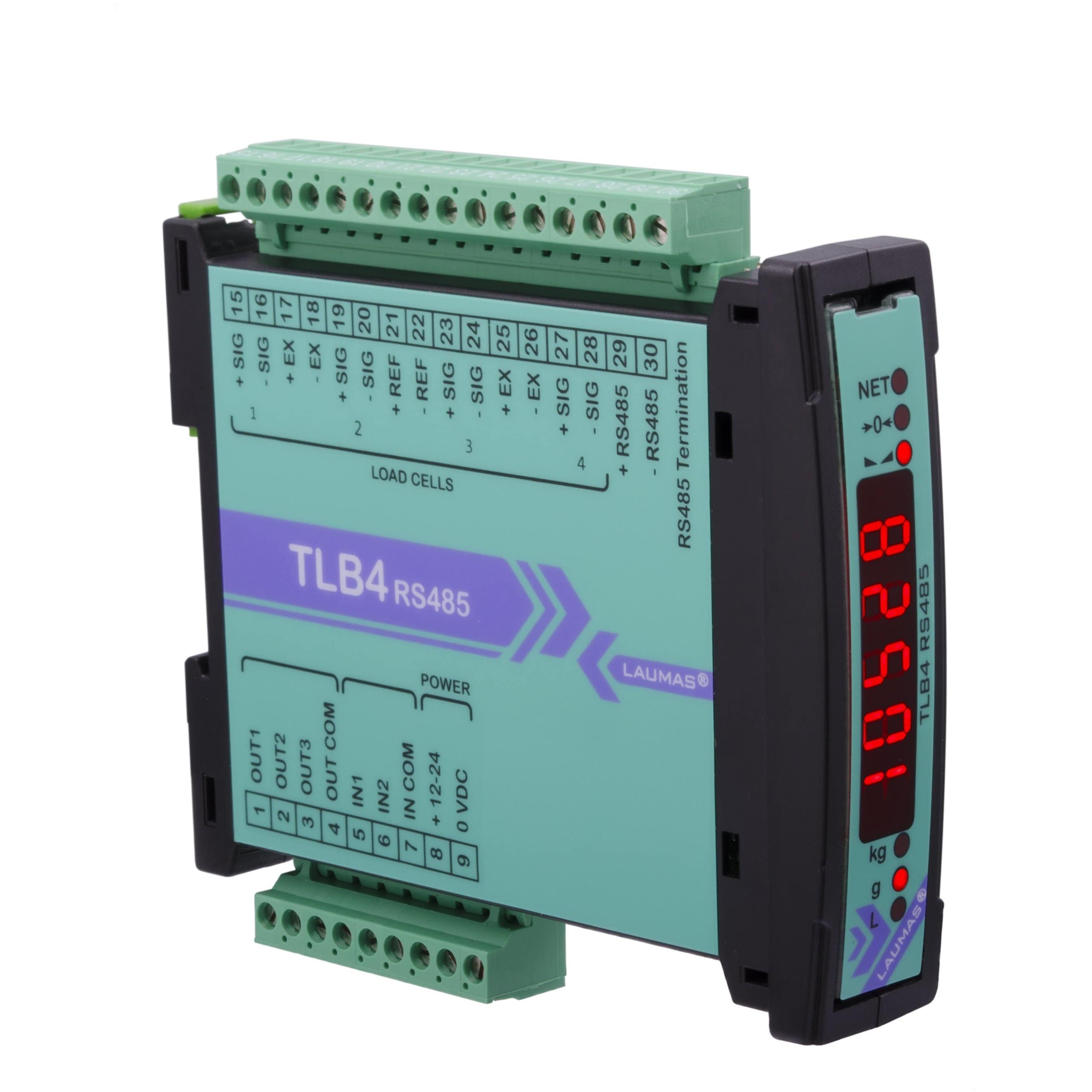

Laumas TLB4 RS485 weight transmitter

The Laumas TLB4 RS485 is made for weighing systems that use up to four load-cell inputs. Each channel can be viewed and balanced individually, which makes commissioning easier and helps identify an uneven load or a faulty sensor.

For control-system integration it uses RS485 serial communication for dependable, economical connection to compatible PLCs, displays and control equipment. Typical applications include vessel weighing, batching equipment and multi-cell platforms.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and RS485 network configuration when specifying the transmitter.

Model: TLB4RS485

Why is calibration important?

Quantity:

£284.16

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

View Technical Data Sheet (PDF)

Laumas TLB4 RS485 Weight Transmitter

£284.16

Learn More

Technical Specification

Fieldbus Output

RS485 port (Modbus RTU/Laumas ASCII protocol)

Secondary Communication

N/A

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Local process systems

Suitable for short- and medium-distance serial links within machinery and control panels.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

RS485 serial connection

Offers a dependable and economical link to compatible PLCs, displays and controllers.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.

FAQs

What does the RS485 TLB4 add to a weighing system?

It combines four-channel monitoring and digital equalisation with a RS485 connection to the control system.

Can RS485 systems perform diagnostics?

Yes, RS485 versions support diagnostics and weighing system monitoring.

Where are RS485 transmitters commonly used?

RS485 transmitters are commonly installed in industrial weighing and monitoring systems.

What are the advantages of RS485 communications?

RS485 provides reliable long-distance communications in industrial environments.
