TLM8 Analogue Weight Transmitter

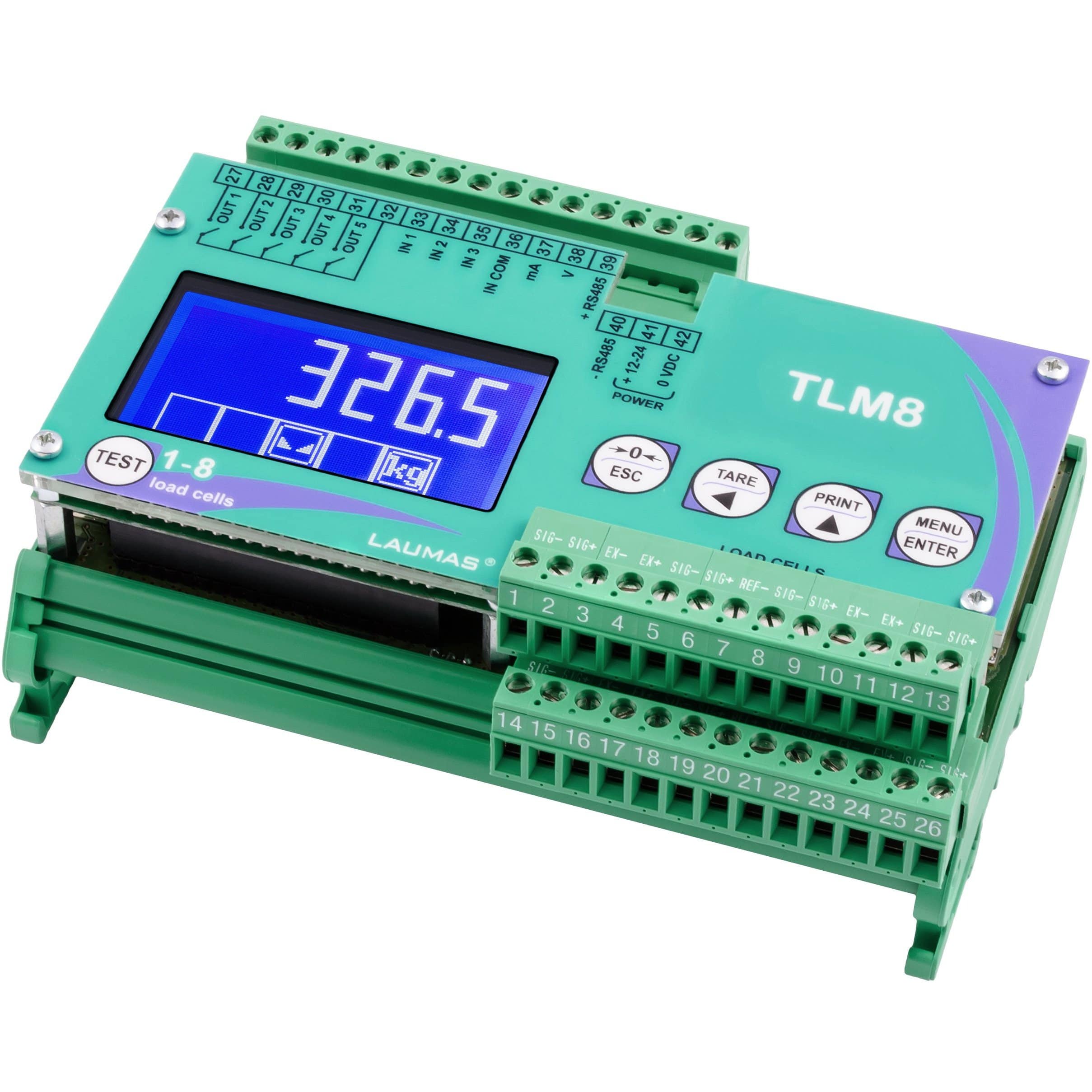

Laumas TLM8 Analogue weight transmitter

The Laumas TLM8 Analogue monitors eight separate weighing channels, giving the control system visibility of individual load-cell signals instead of only a combined total. This is particularly useful on large tanks, silos, hoppers and platforms.

The eight inputs accept up to sixteen 350 Ω load cells in total. For plant integration, this version is fitted with a configurable analogue output for compatible PLCs, indicators and control systems.

An RS485 connection is available for setup and secondary communication. Match the channel layout, load-cell quantity and Analogue interface to the proposed control system.

Model: TLM8

Quantity:

£401.00

View Technical Data Sheet (PDF)

Laumas TLM8 Analogue Weight Transmitter

£401.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

Current: 0÷20 mA; 4÷20 mA / Voltage: 0÷10 V; 0÷5 V

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

PLC and indicator retrofits

A practical option when the existing controller already accepts an analogue process signal.

Large vessel weighing

For silos, tanks, hoppers and platforms that need several load-cell channels.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

Configurable analogue output

Sends a weight signal to compatible analogue inputs without adding a fieldbus gateway.

Eight-channel monitoring

Shows individual channel information for load distribution checks, setup and quicker sensor diagnosis.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why specify the TLM8 with Analogue?

It provides eight-channel load-cell monitoring while communicating with the automation system through Analogue.

Can TLM8 monitor individual load cells?

Yes, the TLM8 provides monitoring of each connected load cell.

What applications benefit most from TLM8 transmitters?

TLM8 transmitters are ideal for large multi-load-cell weighing systems.

What makes the TLM8 unique?

The TLM8 combines eight-channel monitoring, diagnostics, load analysis and remote supervision.
