TLM8 CC-Link Weight Transmitter

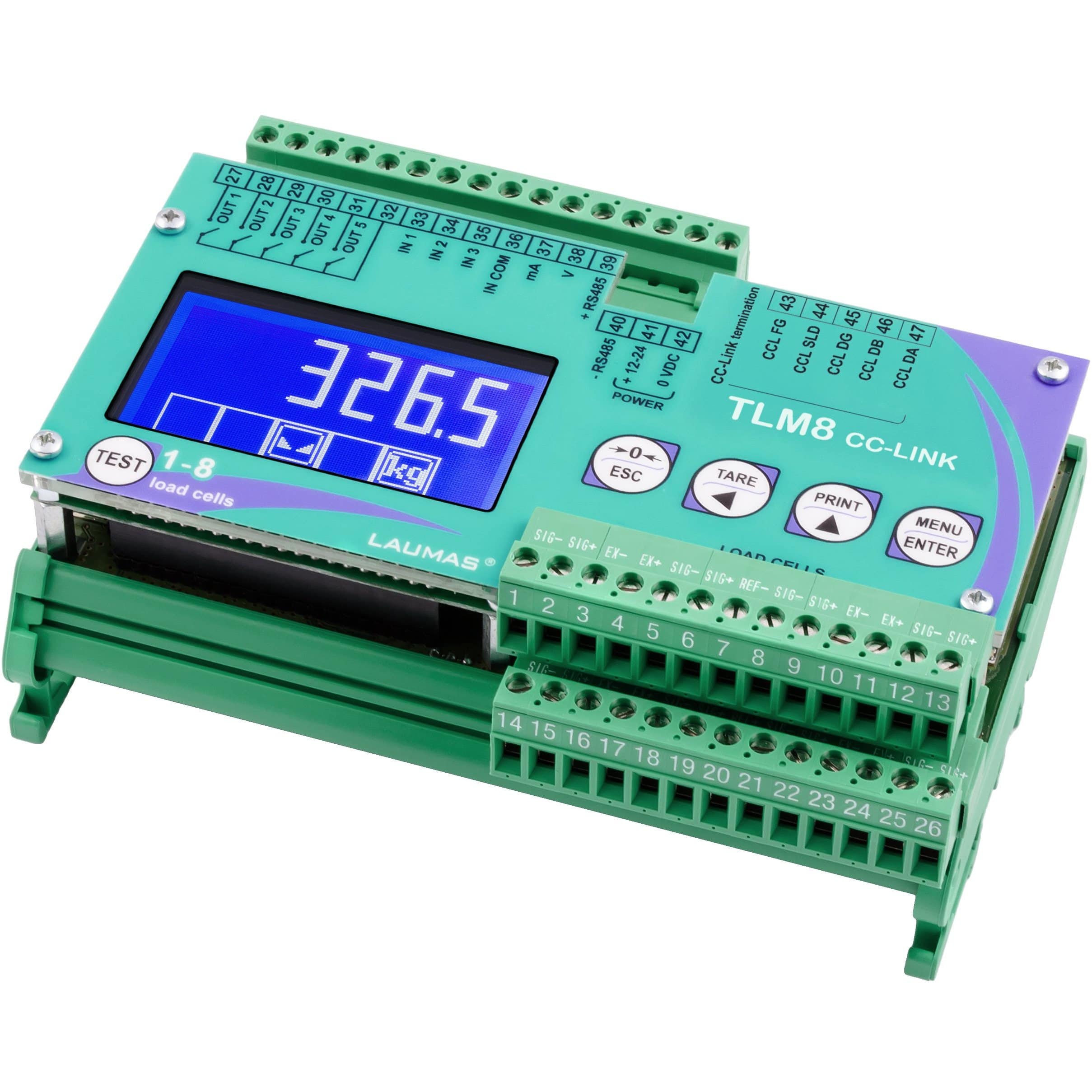

Laumas TLM8 CC-Link weight transmitter

Built for larger vessel and platform weighing systems, the Laumas TLM8 CC-Link keeps eight measurement channels available for diagnostics and control. Engineers can inspect load distribution and trace a suspect sensor without treating the installation as one combined signal.

Up to sixteen 350 Ω load cells can be distributed across the eight channels. The transmitter connects to the automation system through a CC-Link interface for compatible factory-automation equipment.

An RS485 connection is available for setup and secondary communication. Match the channel layout, load-cell quantity and CC-Link interface to the proposed control system.

Model: TLM8CCLINK

Why is calibration important?

Quantity:

£660.45

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

View Technical Data Sheet (PDF)

Laumas TLM8 CC-Link Weight Transmitter

£660.45

Learn More

Technical Specification

Fieldbus Output

CC-Link port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

CC-Link production lines

Designed for plant and machinery where CC-Link is the established network.

Large vessel weighing

For silos, tanks, hoppers and platforms that need several load-cell channels.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

CC-Link connection

Connects the weighing point to compatible CC-Link factory-automation equipment.

Eight-channel monitoring

Shows individual channel information for load distribution checks, setup and quicker sensor diagnosis.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why specify the TLM8 with CC-Link?

It provides eight-channel load-cell monitoring while communicating with the automation system through CC-Link.

Can CC-Link support load cell diagnostics?

Yes, CC-Link TLM8 models provide detailed load cell diagnostics.

What applications use CC-Link TLM8 transmitters?

CC-Link TLM8 transmitters are commonly used in automated production facilities.

What makes CC-Link valuable for advanced weighing systems?

CC-Link allows advanced weighing diagnostics to be integrated into automation systems.
