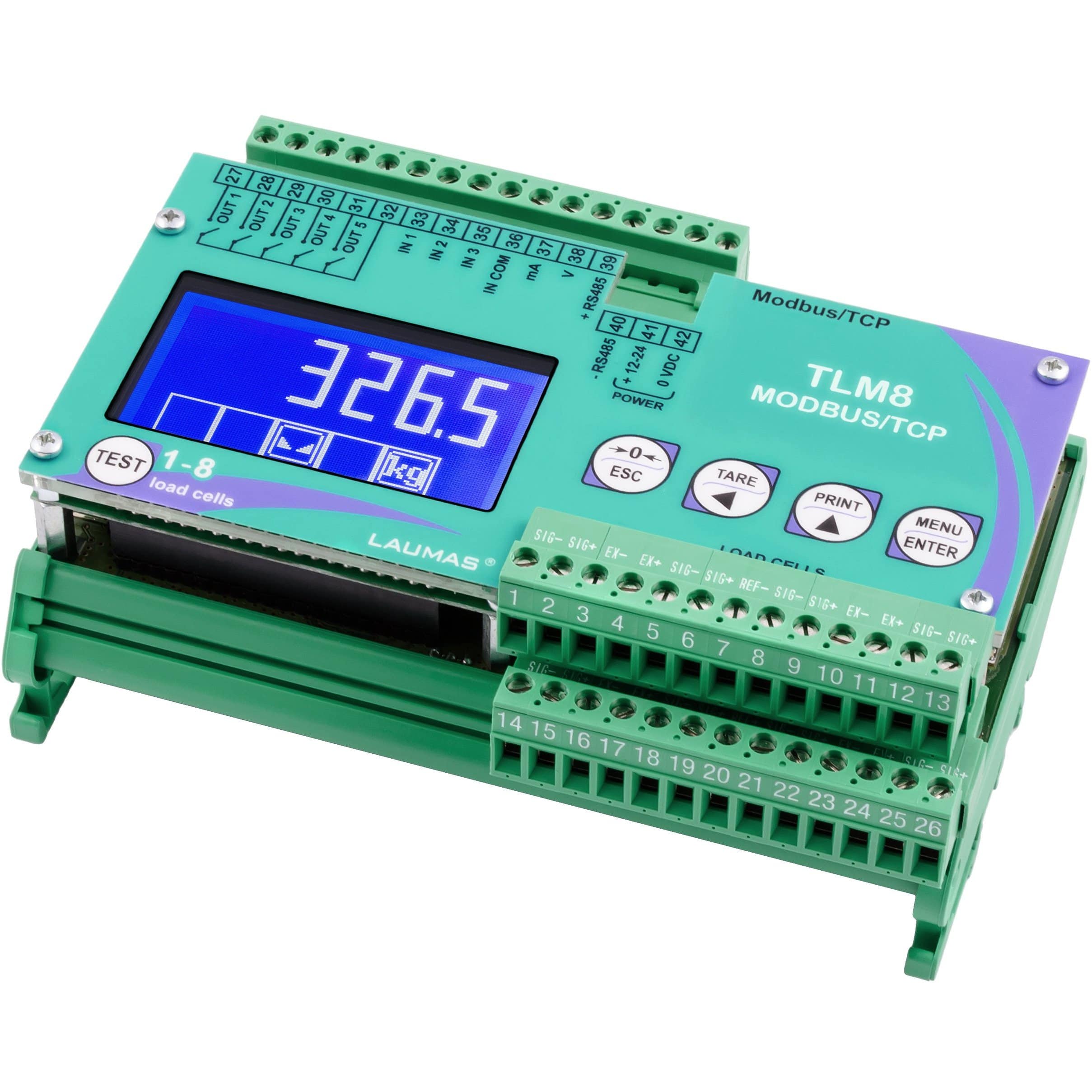

TLM8 Modbus / TCP Weight Transmitter

TLM8 Modbus TCP Weight Transmitter Overview

The Laumas TLM8 Modbus TCP Weight Transmitter provides 8 independent load cell channels with Modbus TCP communication. It supports diagnostics, load distribution analysis and integration with industrial control networks.

Used in tanks, silos, batching systems and multi-support weighing structures, the TLM8 Modbus TCP provides advanced weighing data for process automation.

Model: TLM8MODBUSTCP

Quantity:

£595.00

Laumas TLM8 Modbus / TCP Weight Transmitter

£595.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

Modbus/TCP port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

Multi-Support Vessel Weighing

Designed for large tank and vessel weighing systems using multiple load cells.

Silo Load Distribution Analysis

Allows engineers to analyse load distribution across large silo structures.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

Advanced Load Cell Monitoring

Supports up to eight independent load cell channels with advanced monitoring capabilities.

Load Distribution Analysis

Monitors load distribution across multiple supports to improve weighing system performance.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why use Modbus TCP with an 8-channel transmitter?

Modbus TCP provides simple integration with industrial networks and PLC systems.

Can Modbus TCP support advanced monitoring?

Yes, Modbus TCP versions support advanced weighing diagnostics and monitoring.

What applications benefit from Modbus TCP TLM8 transmitters?

Modbus TCP TLM8 transmitters are common in process industries and utilities.

Why choose Modbus TCP for large weighing systems?

Modbus TCP provides broad compatibility with industrial control systems and networks.
