TLM8 POWERLINK Weight Transmitter

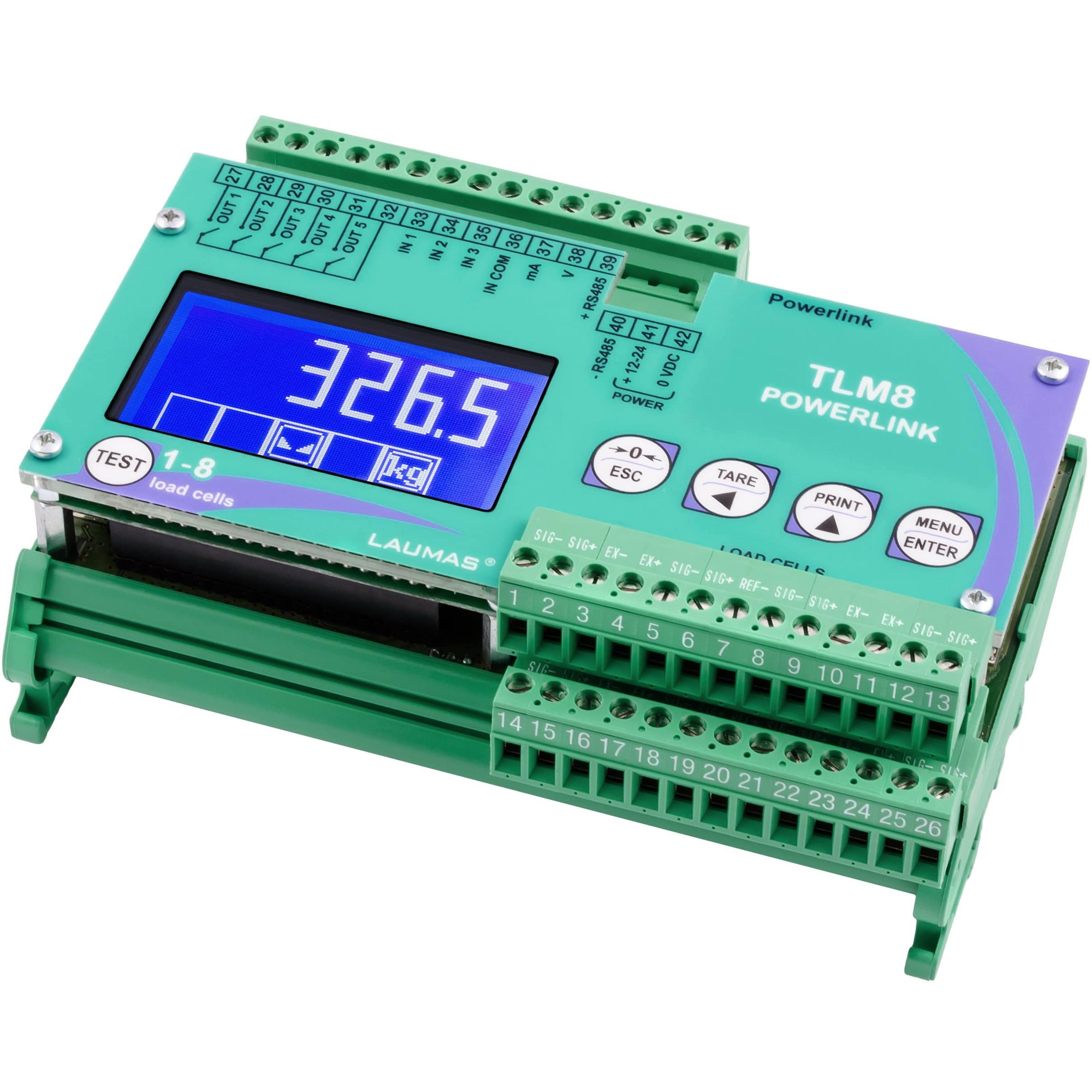

Laumas TLM8 POWERLINK weight transmitter

Built for larger vessel and platform weighing systems, the Laumas TLM8 POWERLINK keeps eight measurement channels available for diagnostics and control. Engineers can inspect load distribution and trace a suspect sensor without treating the installation as one combined signal.

Up to sixteen 350 Ω load cells can be distributed across the eight channels. The transmitter connects to the automation system through a POWERLINK interface for deterministic Ethernet-based machine control.

An RS485 connection is available for setup and secondary communication. Match the channel layout, load-cell quantity and POWERLINK interface to the proposed control system.

Model: TLM8POWERLINK

Quantity:

£595.00

View Technical Data Sheet (PDF)

Laumas TLM8 POWERLINK Weight Transmitter

£595.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

2x POWERLINK ports

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

Coordinated automation

Intended for machinery that uses POWERLINK for deterministic network communication.

Large vessel weighing

For silos, tanks, hoppers and platforms that need several load-cell channels.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

POWERLINK connection

Integrates weighing with compatible real-time Ethernet machine-control systems.

Eight-channel monitoring

Shows individual channel information for load distribution checks, setup and quicker sensor diagnosis.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why specify the TLM8 with POWERLINK?

It provides eight-channel load-cell monitoring while communicating with the automation system through POWERLINK.

Can POWERLINK provide diagnostic information?

Yes, POWERLINK versions provide diagnostic and monitoring functionality.

Where are POWERLINK TLM8 systems commonly used?

POWERLINK TLM8 systems are used in real-time automation applications.

What advantages does POWERLINK provide?

POWERLINK delivers real-time performance for demanding automation applications.
