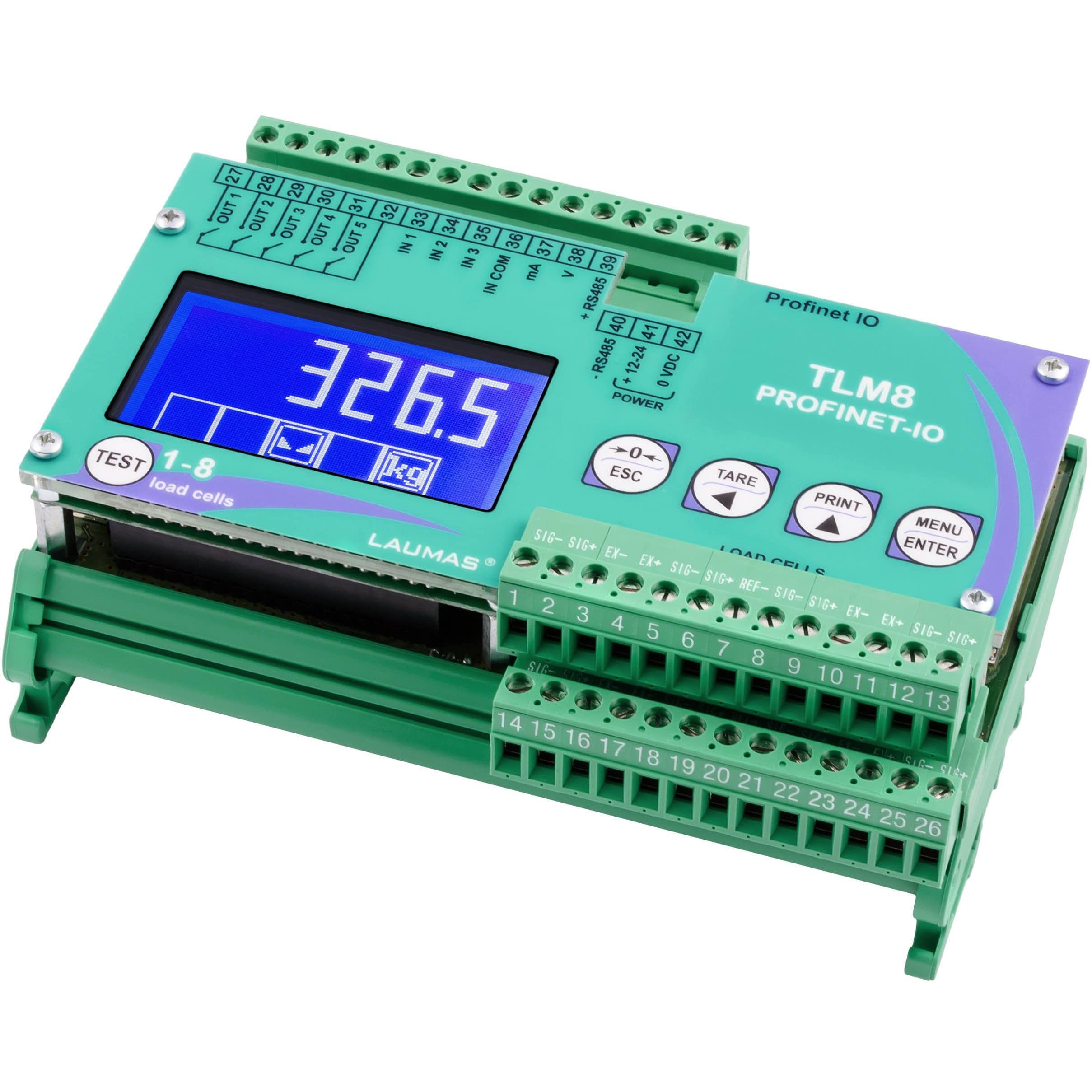

TLM8 PROFINET IO Weight Transmitter

TLM8 PROFINET IO Weight Transmitter Overview

The Laumas TLM8 PROFINET IO Weight Transmitter provides advanced 8-channel load cell management with PROFINET IO communication. It supports diagnostics, load distribution analysis and digital equalisation for PLC-based automation.

Suitable for tanks, silos, weighbridges and process weighing systems, the TLM8 PROFINET IO helps integrate detailed weighing data into modern industrial networks.

Model: TLM8PROFINETION

Quantity:

£595.00

Laumas TLM8 PROFINET IO Weight Transmitter

£595.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

2x Profinet IO ports

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

Multi-Support Vessel Weighing

Designed for large tank and vessel weighing systems using multiple load cells.

Silo Load Distribution Analysis

Allows engineers to analyse load distribution across large silo structures.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

Advanced Load Cell Monitoring

Supports up to eight independent load cell channels with advanced monitoring capabilities.

Load Distribution Analysis

Monitors load distribution across multiple supports to improve weighing system performance.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why use PROFINET IO for multi-load-cell monitoring?

PROFINET IO enables advanced weighing diagnostics to be integrated into modern PLC platforms.

Can PROFINET support vessel weighing diagnostics?

Yes, PROFINET versions support advanced vessel and load cell diagnostics.

Where are PROFINET TLM8 transmitters typically installed?

PROFINET TLM8 transmitters are widely used in modern PLC-based systems.

What makes PROFINET ideal for advanced diagnostics?

PROFINET enables advanced diagnostics and detailed load cell monitoring within PLC systems.
