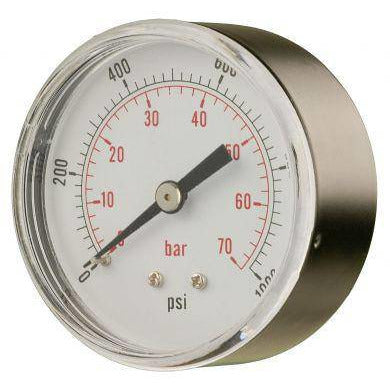

63mm Back Entry General Purpose Pressure Gauge

This 63 mm general-purpose pressure gauge provides an economical way to monitor compatible liquids and gases at the point of use. A 63 mm dial offers a useful balance between visibility and installation size, making it a familiar choice for machinery and plant equipment. It is suited to ordinary machinery, utility and maintenance applications, provided the gauge materials, range and connection are appropriate for the service.

The back entry layout is useful where the pressure port sits directly behind a panel or equipment face and the dial must remain clearly presented to the operator. It works well as a replacement or original-equipment gauge where the dial is viewed from the front of a panel or machine. For replacement work, compare the range, connection and mounting orientation with the existing gauge as well as the process conditions.

View Accessories

Where optional calibration is selected, the calibration certificate is issued by GNW Instrumentation. What’s included?

Why is calibration important?

Quantity:

£25.64

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 2–3 working days.

Need Help? Ask a Question

GNW Instrumentation 63mm Back Entry General Purpose Pressure Gauge

£25.64

Learn More

Technical Specification

Size

63mm

Case

Black enameled steel

Bezel

N/A

Wetted Parts

Brass

Window

Polycarbonate Plastic

Dial

Aluminium - Dual Scale

Pointer

Black Aluminium

Accuracy

1.6%

Connection Size

1/4'' BSP

Connection Orientation

Centre Back Entry

Optional Calibration & Certification

Add an optional calibration certificate to document your instrument’s performance before use and support your quality records. Find out below what testing is included and what your certificate provides.

Who issues the certificate?	Where optional calibration is selected, the calibration certificate is issued by GNW Instrumentation.
What testing is included?	The pressure gauge is compared with traceable reference pressure equipment at selected test points appropriate to its measuring range. The actual calibration points are recorded on the certificate.
What does the certificate report?	The certificate identifies the instrument and reference equipment, and reports the applied pressures, instrument indications and measurement errors. Results relate to the instrument as calibrated.

Learn more

Applications

Control Panels

Suitable for panel-mounted applications requiring improved readability.

Process Systems

Used in process systems requiring reliable and consistent pressure indication.

Industrial Plants

Used in plant systems requiring dependable pressure monitoring.

OEM Machinery

Used in OEM machinery requiring durable and reliable pressure measurement.

Features

Dial

63mm dial offers improved visibility for operators in industrial environments.

Configuration

Back entry configuration suited to panel mounting and enclosed systems.

Construction

Black enameled steel case ensures consistent performance in general-purpose pressure monitoring applications.

Accuracy

Accuracy class 1.6% of full scale, offering reliable and consistent industrial accuracy.

FAQs

What is a 63mm back entry pressure gauge used for?

A 63mm back entry pressure gauge is ideal for panel-mounted applications requiring improved visibility.

What does back entry mean on a pressure gauge?

Back entry means the gauge connects from the rear, ideal for enclosed or panel-mounted systems.

What is a general purpose pressure gauge?

General purpose gauges offer dependable performance across a wide range of standard applications.

How accurate is a 63mm pressure gauge?

A 63mm pressure gauge typically offers accuracy class 1.6% of full scale for reliable performance.
