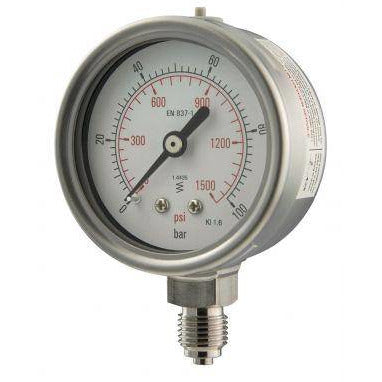

63mm Bottom Entry All Stainless Steel Pressure Gauge


This 63 mm dry stainless steel gauge suits local pressure checks on plant equipment where the reading is normally steady.

The connection is underneath the dial for upright fitting on compatible pipework or an equipment port. The wetted parts are 316L stainless steel. Check they suit the gas or liquid in your system.

Range: -1/0 bar to 0/+1 bar & -30/0 inHg to 0/+15 psi

Range

Thread Size: 1/4" BSP

Thread Size

Calibration Certificate: No

Calibration Certificate

Where optional calibration is selected, the calibration certificate is issued by GNW Instrumentation. What’s included?

Why is calibration important?
Sale price£44.40

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 2–3 working days.

Ask GNW a Question

Need help choosing the correct instrument? Send our team your question.

Product: 63mm Bottom Entry All Stainless Steel Pressure Gauge

Learn More

Technical Specification

Size
63mm
Case
304 Stainless Steel
Bezel
Removable 304 Stainless Steel
Wetted Parts
316L Stainless Steel
Window
Polycarbonate Plastic
Dial
Aluminium - Dual Scale
Pointer
Black Aluminium
Accuracy
Class 1.6 (±1.6% of span)
Connection Size
1/4" BSP, 1/4" BSPT, 1/4" NPT, 1/8" BSP, 1/8" BSPT, 1/8" NPT
Connection Orientation
Bottom Entry

Optional Calibration & Certification

Add an optional calibration certificate to document your instrument’s performance before use and support your quality records. Find out below what testing is included and what your certificate provides.

Who issues the certificate? Where optional calibration is selected, the calibration certificate is issued by GNW Instrumentation.
What testing is included? The pressure gauge is compared with traceable reference pressure equipment at selected test points appropriate to its measuring range. The actual calibration points are recorded on the certificate.
What does the certificate report? The certificate identifies the instrument and reference equipment, and reports the applied pressures, instrument indications and measurement errors. Results relate to the instrument as calibrated.

Learn more

Applications

Equipment Skid Pressure Indication

63mm dial and bottom entry connection make this gauge practical for compact process skids and packaged plant assemblies.

Pump and Compressor Ancillaries

Local pressure indication on auxiliary lines can be accommodated where stainless steel construction is preferred for the installation environment.

Manifold and Test Point Monitoring

Bottom entry mounting suits manifold ports and fixed test points that require a clear upright reading position.

Industrial Pipework Instrumentation

The 304 stainless steel case and 316L stainless steel wetted parts support use on compatible industrial pipework duties.

Features

Dial

The 63mm dial provides a compact local indication point where panel or plant space is limited. Its size suits small assemblies, skids and equipment-mounted pressure measurement.

Configuration

The bottom entry connection supports direct mounting into vertical pipework, manifolds or equipment ports. This arrangement helps keep the dial visible when installed upright.

Construction

A 304 stainless steel case with 316L stainless steel wetted parts gives robust construction for industrial service. Check material compatibility against the process medium before selection.

Accuracy

The stated error limit is ±1.6% of the full pressure span.
