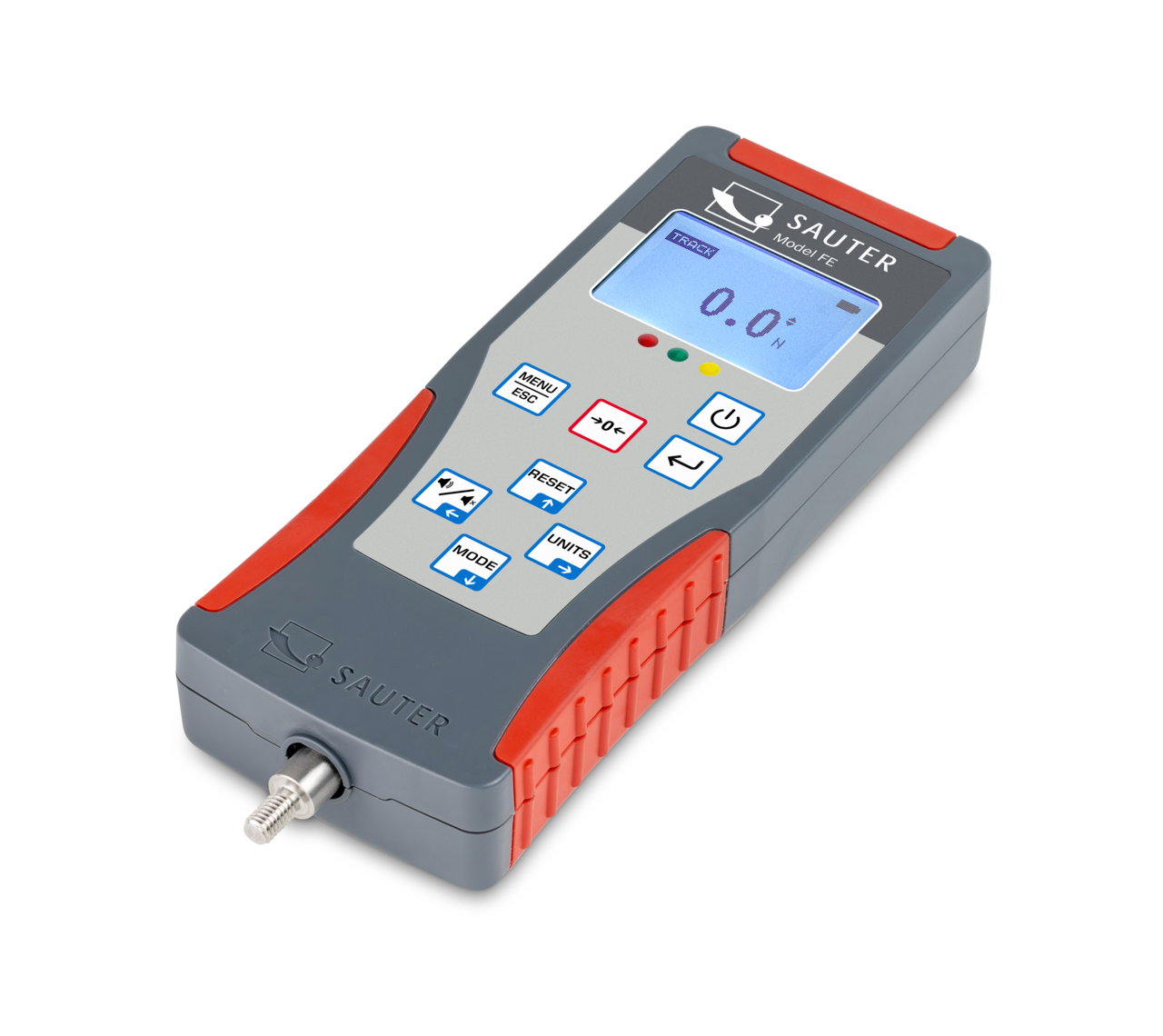

Sauter FE Force Gauge

Sauter FE Force Gauge

Sauter FE force gauges provide digital tensile and compressive measurement through an integrated measuring cell. Peak-hold captures the highest force reached, while track mode shows changing force continuously. A visual pass/fail function supports quick comparison with defined limits, making the range practical for repetitive component checks, incoming inspection and production testing.

The compact handheld design can also be mounted on a compatible Sauter test stand when controlled alignment and loading are required. Selectable force units and battery or mains operation support flexible day-to-day use, while capacities from 5 N to 1 kN cover delicate operating-force checks through to heavier push/pull measurements. Choose the model according to the expected maximum force, required readability and fixture arrangement.

Model: FE 5

Model
Calibration Certificate: No

Calibration Certificate
Sale price£275.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Model FE 5 FE 5 FE 10 FE 10 FE 20 FE 20 FE 50 FE 50 FE 100 FE 100 FE 200 FE 200 FE 500 FE 500 FE 1K FE 1K
Measuring Range 5 N 5 N 10 N 10 N 25 N 25 N 50 N 50 N 100 N 100 N 250 N 250 N 500 N 500 N 1 kN 1 kN
Readability 0.002 N 0.002 N 0.005 N 0.005 N 0.01 N 0.01 N 0.02 N 0.02 N 0.05 N 0.05 N 0.1 N 0.1 N 0.2 N 0.2 N 0.5 N 0.5 N
Tolerance 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3% 0.3%
Peak Function Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Hold / Track Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode
Force Direction Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension
Power Supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply

Learn more

Applications

Production Inspection

Use visual limit checking for repeat operating-force and component tests.

Incoming Quality Control

Compare supplied parts against defined tensile or compression force requirements.

Workshop Checks

The compact design supports practical push/pull measurements during maintenance.

Test Stand Use

Mount the gauge on a compatible stand for better alignment and controlled loading.

Features

Pass/Fail Function

Defined limits provide a clear visual indication during repeated force checks.

Peak And Track Modes

Peak-hold retains the maximum force while track mode displays changing values continuously.

Integrated Cell

The built-in measuring cell supports direct handheld testing and compatible stand mounting.

Flexible Power

Battery and mains operation support mobile checks as well as regular bench use.
