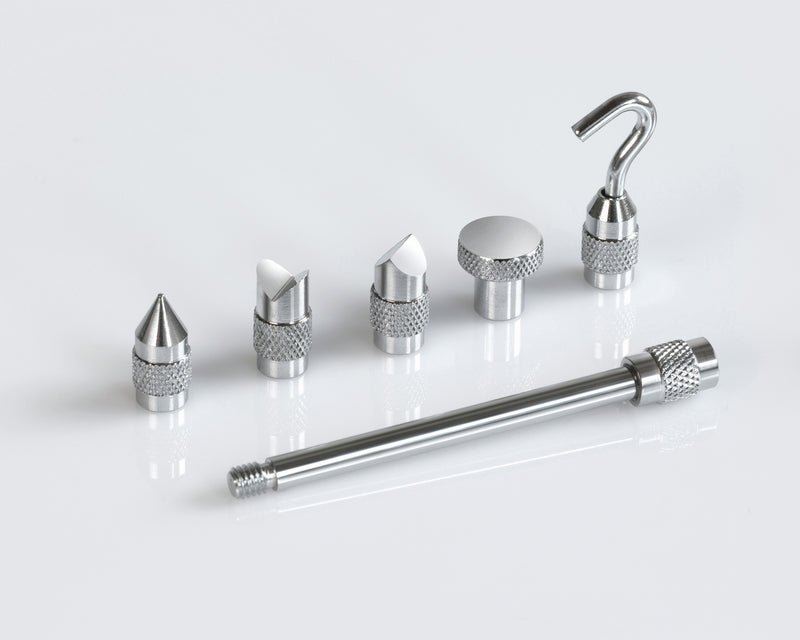

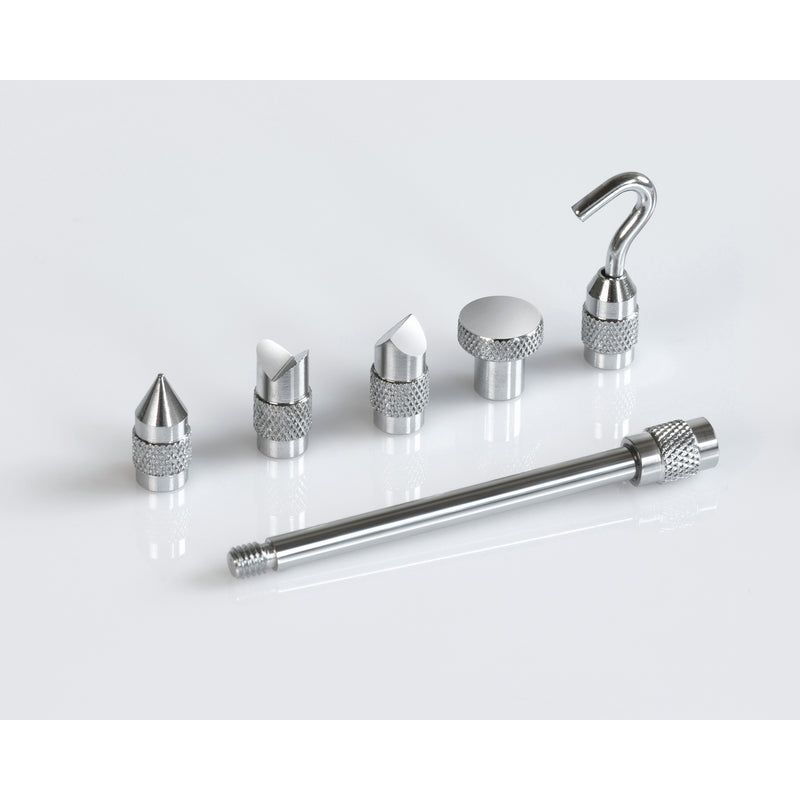

Sauter AC 43 attachment set for the FH-S force gauge

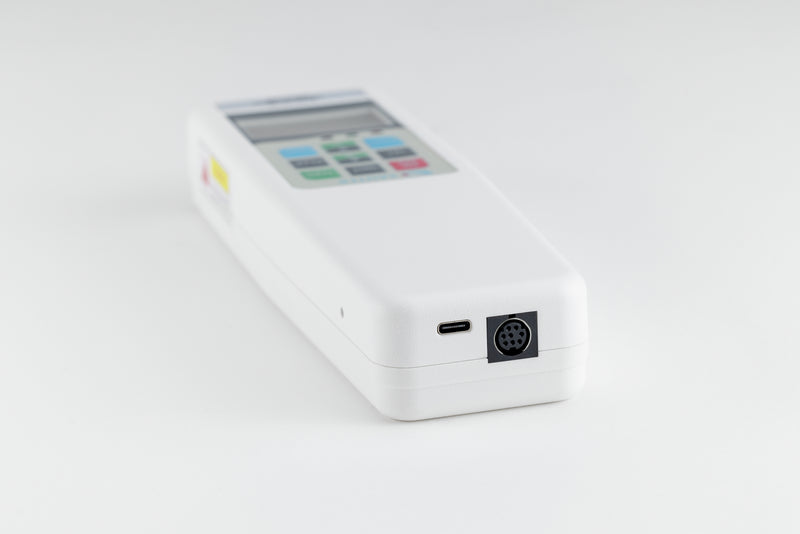

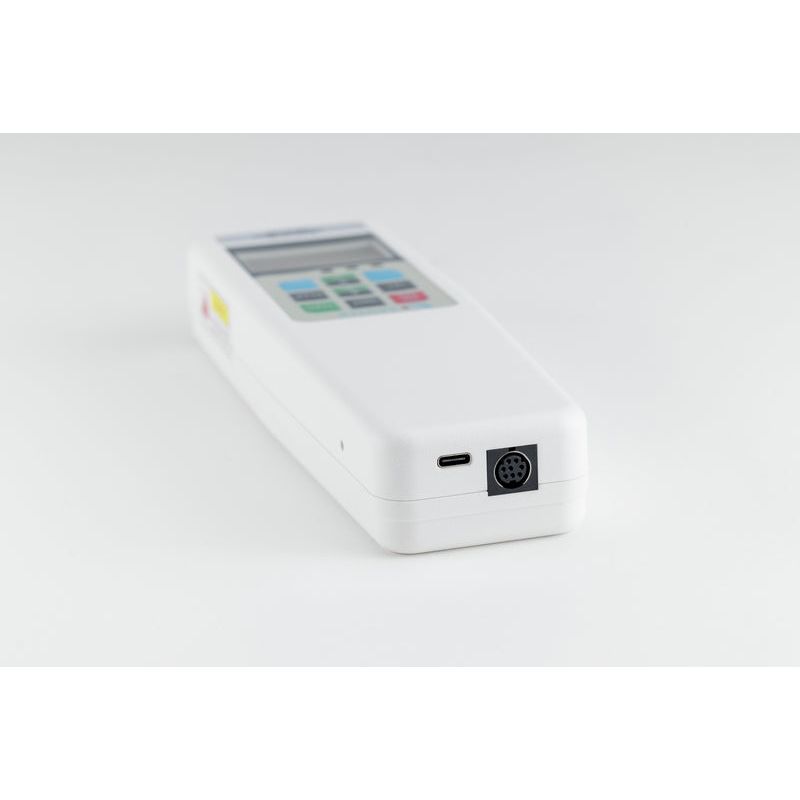

Sauter FH-S force gauge display and rear mounting arrangement
Sauter

Sauter FH-S Force Gauge

Sauter FH-S Force Gauge

The Sauter FH-S is a versatile digital force gauge with an internal load cell for handheld or stand-mounted tension and compression tests. Its high measuring frequency makes it a good choice where the force changes quickly, while the reversible backlit display remains easy to read in either test direction.

Peak-hold retains the maximum result and track mode follows the live force. Upper and lower limits provide immediate visual and audible feedback during repeat checks, and the internal memory can calculate the average, minimum and maximum from a small series of readings.

USB and RS-232 interfaces allow results to be transferred to other equipment. The FH-S is best suited to users who need more measurement and data functions than the simpler FK or FC ranges but still want an integrated, portable instrument.

Model: FH 2

Model
Calibration Certificate: No

Calibration Certificate
Sale price£590.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Model FH 2 FH 2 FH 5 FH 5 FH 10 FH 10 FH 20 FH 20 FH 50 FH 50 FH 100 FH 100 FH 200 FH 200 FH 500 FH 500
Measuring Range 2 N 2 N 5 N 5 N 10 N 10 N 20 N 20 N 50 N 50 N 100 N 100 N 200 N 200 N 500 N 500 N
Readability 0.001 N 0.001 N 0.001 N 0.001 N 0.005 N 0.005 N 0.01 N 0.01 N 0.01 N 0.01 N 0.05 N 0.05 N 0.1 N 0.1 N 0.1 N 0.1 N
Tolerance 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Peak Function Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Hold / Track Track mode Track mode Track mode Track mode Yes / Track mode Yes / Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode
Memory Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values Up to 10 values
Interfaces RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device RS-232 standard / USB-Device
Force Direction Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension
Power Supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply

Learn more

Applications

Tolerance Checks

Check push or pull force against an agreed acceptance band.

Data Recording

Transfer readings when a written test record is required.

Bench Testing

Use a test stand for aligned tension and compression tests on small components.

Peak Measurement

Capture the highest force reached during a short or rapidly changing event.

Features

Data Interfaces

USB and RS-232 connections provide two routes for transferring readings or powering the gauge.

Limit Testing

Set separate upper and lower limits for immediate feedback during repeated push and pull tests.

Memory Statistics

Store ten readings and review the average, minimum and maximum directly on the instrument.

Stand Compatible

Mount the gauge on a Sauter stand when hand testing cannot provide the required control.
