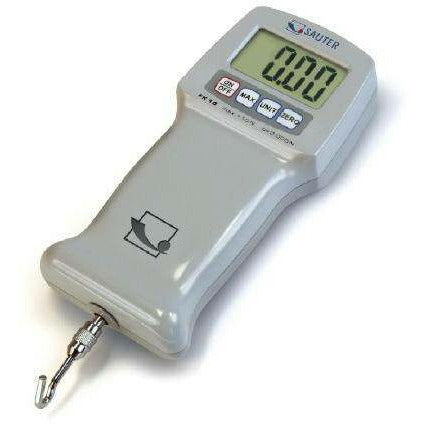

Sauter FK digital force gauge front view
Sauter FK force gauge dimensional drawing

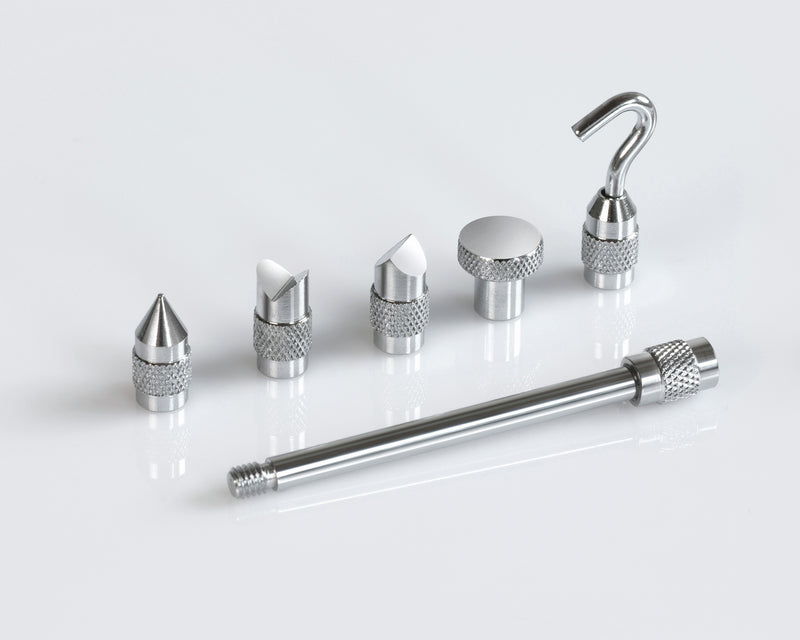

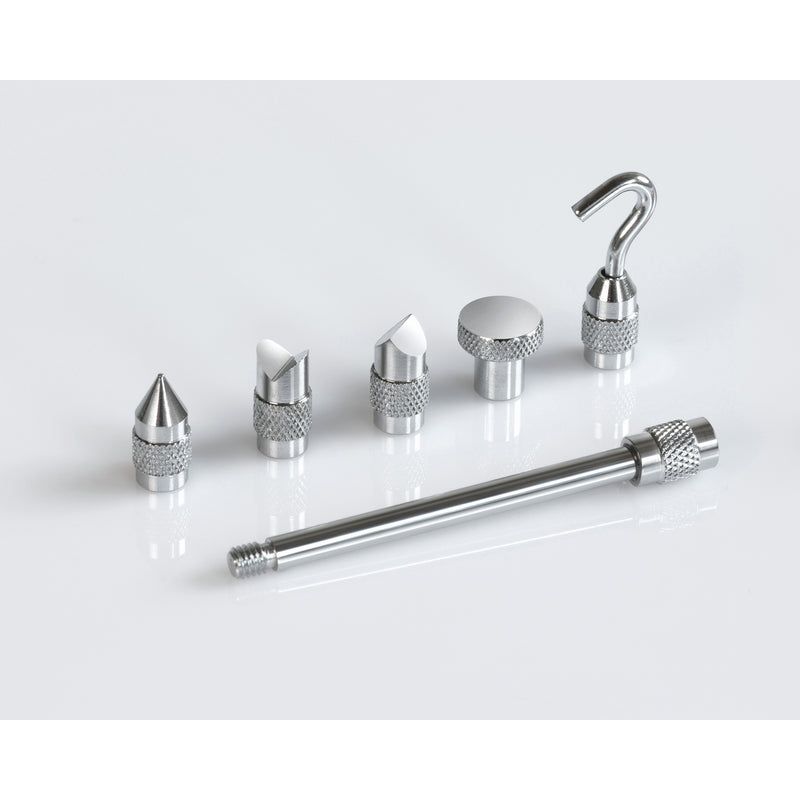

Sauter AC 43 attachment set for the FK force gauge
Sauter

Sauter FK Force Gauge

Sauter FK Force Gauge

Sauter FK force gauges offer straightforward digital push and pull measurement for incoming inspection, production checks, maintenance and general workshop testing. Their ergonomic handheld format and automatically rotating display make readings easy to follow in different test directions, while peak-hold captures the highest force and track mode shows changing force continuously.

Selectable force units and automatic power-off keep routine operation simple, and the gauge can also be mounted on a compatible Sauter test stand when better control of speed, alignment and sample positioning is required. A choice of measuring ranges allows the FK series to cover tasks such as operating-force checks, component testing, pull-off measurements and basic compression tests without the complexity of a more advanced data-logging system.

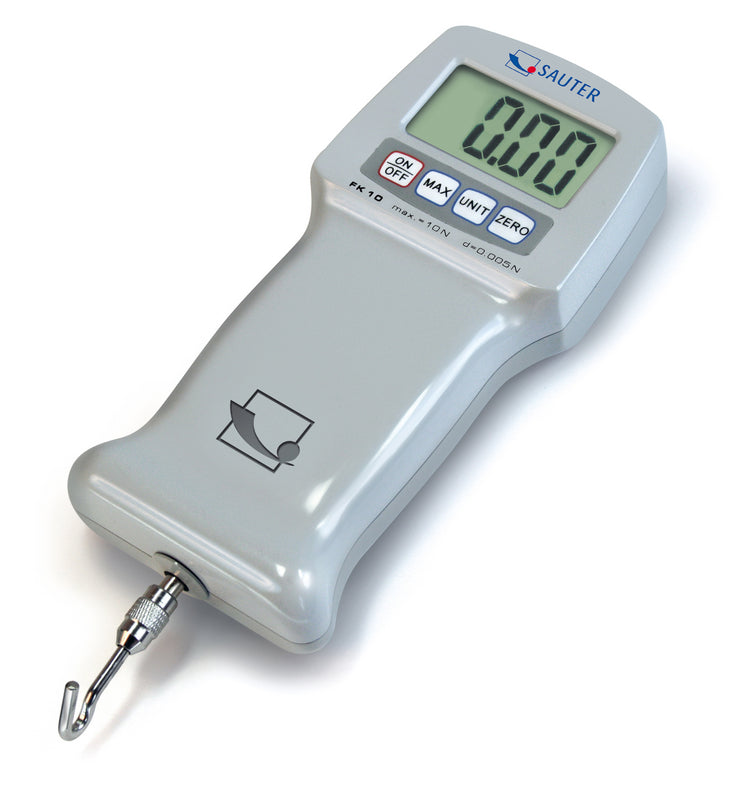

Model: FK 10

Model
Calibration Certificate: No

Calibration Certificate
Sale price£285.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Model FK 10 FK 10 FK 25 FK 25 FK 50 FK 50 FK 100 FK 100 FK 250 FK 250 FK 500 FK 500 FK 1K FK 1K
Measuring Range 10 N 10 N 25 N 25 N 50 N 50 N 100 N 100 N 250 N 250 N 500 N 500 N 1 kN 1 kN
Readability 0.005 N 0.005 N 0.01 N 0.01 N 0.02 N 0.02 N 0.05 N 0.05 N 0.1 N 0.1 N 0.2 N 0.2 N 0.5 N 0.5 N
Tolerance 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Peak Function Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Hold / Track Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode Yes / Track mode
Force Direction Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension
Power Supply Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included Power supply & battery included

Learn more

Applications

Push Pull Testing

Measure the force needed to operate switches, catches, handles and small mechanisms.

Peak Force Checks

Check the pull force on connectors, fasteners or assembled parts using the correct attachment.

Test Stand Use

Carry out quick compression checks on packaging, springs and small components.

General Load Checks

Use with a manual stand when a steadier loading rate is needed than hand testing can provide.

Features

Turnable Display

The display rotates automatically, so the reading remains upright during push and pull tests.

Peak And Track

Use peak-hold for the maximum force or track mode to watch the force change as the test progresses.

Selectable Units

Switch between N, lbf, kgf and ozf without converting the result separately.

Test Stand Mounting

Threaded mounting points allow the gauge to be fitted to an appropriate Sauter test stand.
