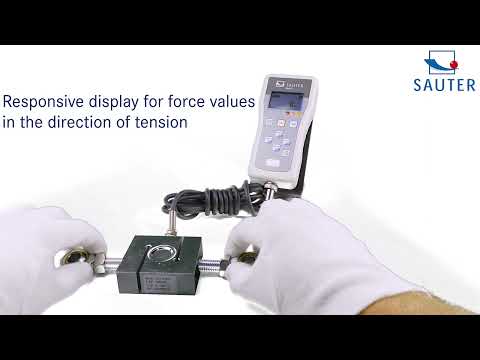

Sauter FL-M force gauge with external load cell

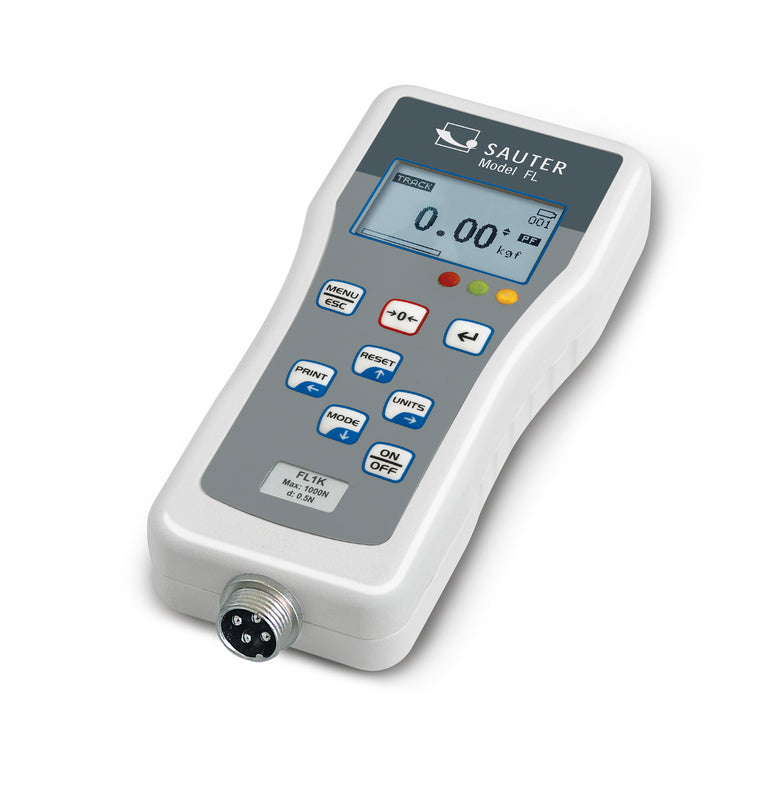

Sauter FL-M force gauge display and controls

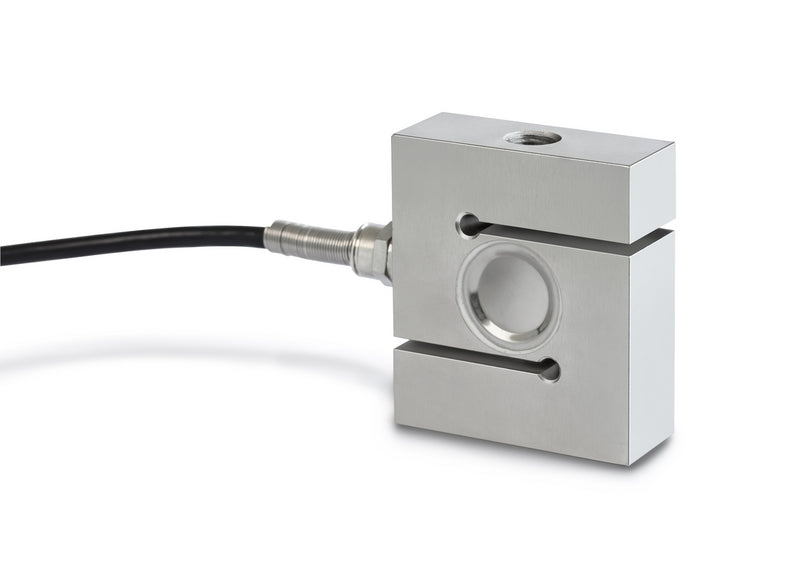

Sauter FL-M external load cell and cable

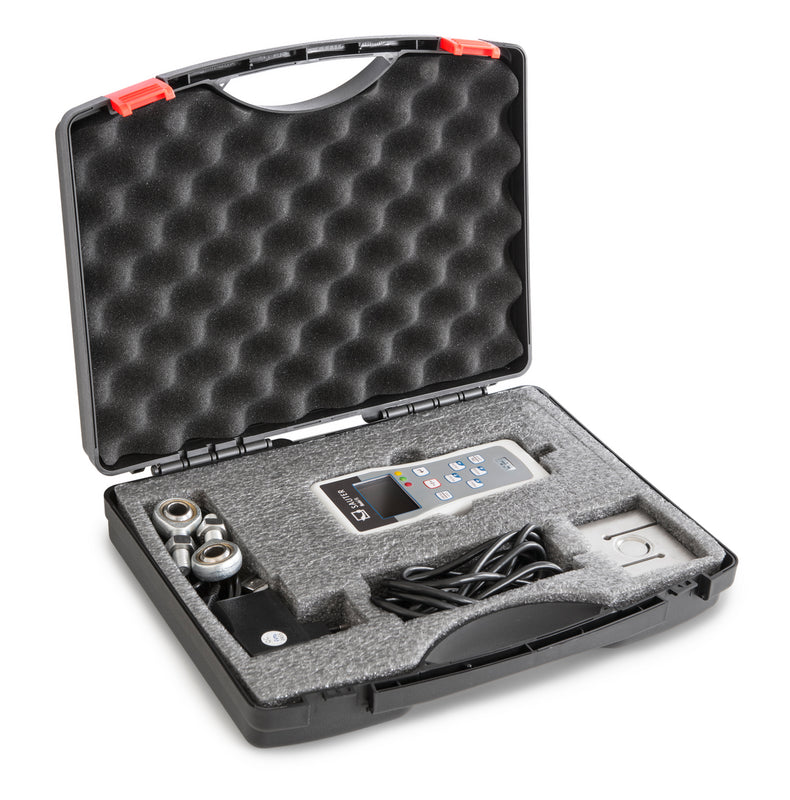

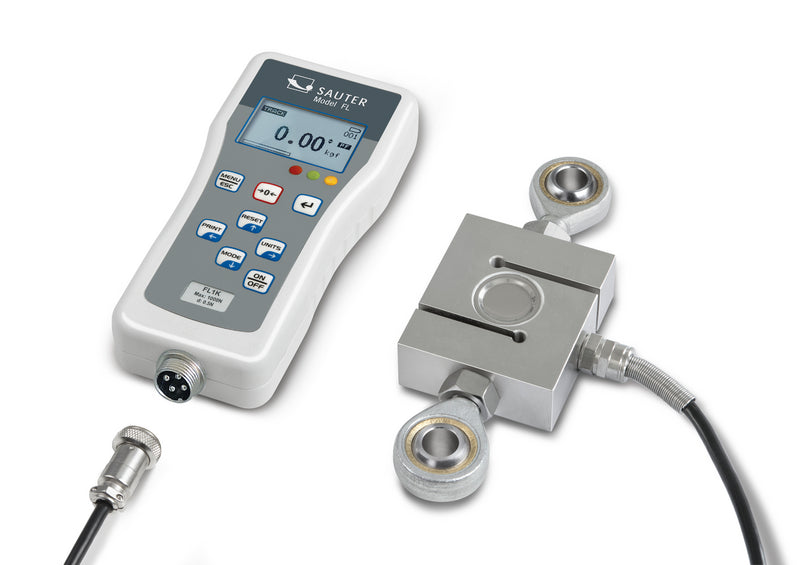

Sauter FL-M force measurement system components
Sauter

Sauter FL-M Force Gauge

Sauter FL-M Force Gauge

The Sauter FL-M pairs a separate high-capacity load cell with a digital display, keeping the sensor at the test point and the controls where the operator can see them. It is intended for tensile and compression work that is too demanding—or too awkwardly positioned—for a conventional handheld force gauge.

The illuminated display shows the live force, available capacity and peak result. Upper and lower limits provide a quick pass/fail check, and up to 500 readings can be stored for later review. USB, RS-232 and a continuous analogue output offer several ways to record the measurement or incorporate it into a larger test arrangement.

Capacities extend into the kilonewton range. Choose the model around the highest expected load, the direction of force and the way the load cell will be mounted; suitable loops, plates or purpose-made fixtures will still be needed for the item being tested.

Model: FL 2K

Model
Calibration Certificate: No

Calibration Certificate
Sale price£820.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Model FL 2K FL 2K FL 10K FL 10K FL 20K FL 20K
Measuring Range 2.5 kN 2.5 kN 10 kN 10 kN 20 kN 20 kN
Readability 1 N 1 N 5 N 5 N 10 N 10 N
Tolerance 0.2% 0.2% 0.2% 0.2% 0.2% 0.2%
Peak Function Yes Yes
Hold / Track Yes / Track mode Yes / Track mode Track mode Track mode Track mode Track mode
Memory Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values
Interfaces Analog (0 +/-2V) / RS-232 serienmäßig / USB-Device Analog (0 +/-2V) / RS-232 serienmäßig / USB-Device Analog (0 +/-2V) / RS-232 serienmäßig / USB-Device Analog (0 +/-2V) / RS-232 serienmäßig / USB-Device Analog (0 +/-2V) / RS-232 serienmäßig / USB-Device Analog (0 +/-2V) / RS-232 serienmäßig / USB-Device
Force Direction Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension
Power Supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply

Learn more

Applications

Pull Testing

Use tension loops to pull-test large components within the selected cell capacity.

Compression Testing

Add suitable plates or fixtures for compression and proof-load checks.

Data Logging

Retain up to 500 results before transferring the readings for review.

Stand Mounted Tests

Mount the load cell in a frame where a complete handheld instrument would not fit.

Features

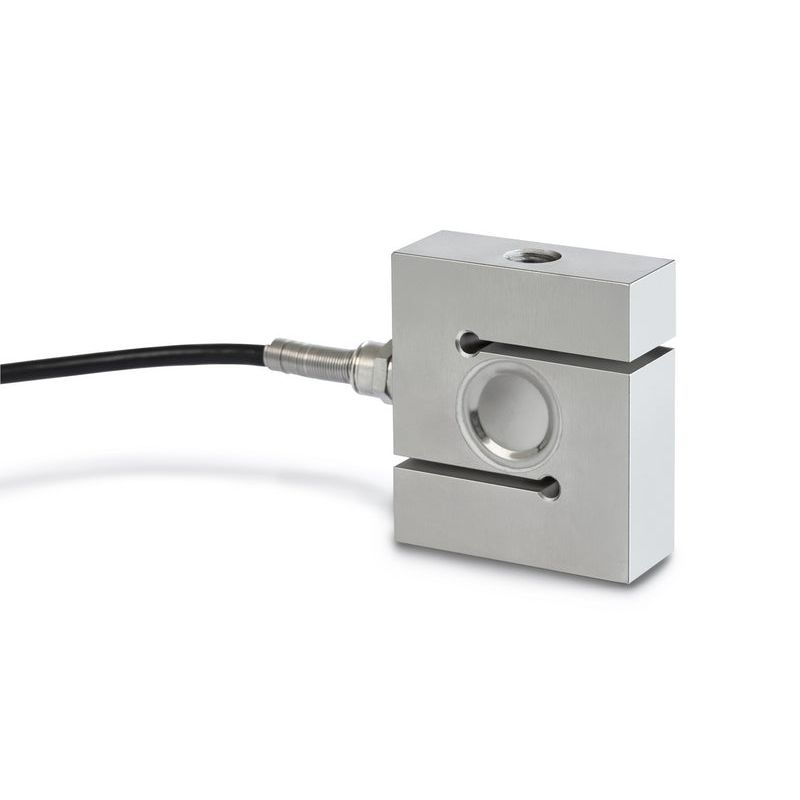

External Cell

The load cell can be fixed at the test point while the display remains protected and easy to read.

Capacity Display

The capacity bar shows how much measuring range remains before the sensor reaches full load.

Analogue Signal

A continuous -2 to +2 V output is available for compatible monitoring or control equipment.

Robust Housing

The metal housing is intended for repeated use around industrial test equipment.
