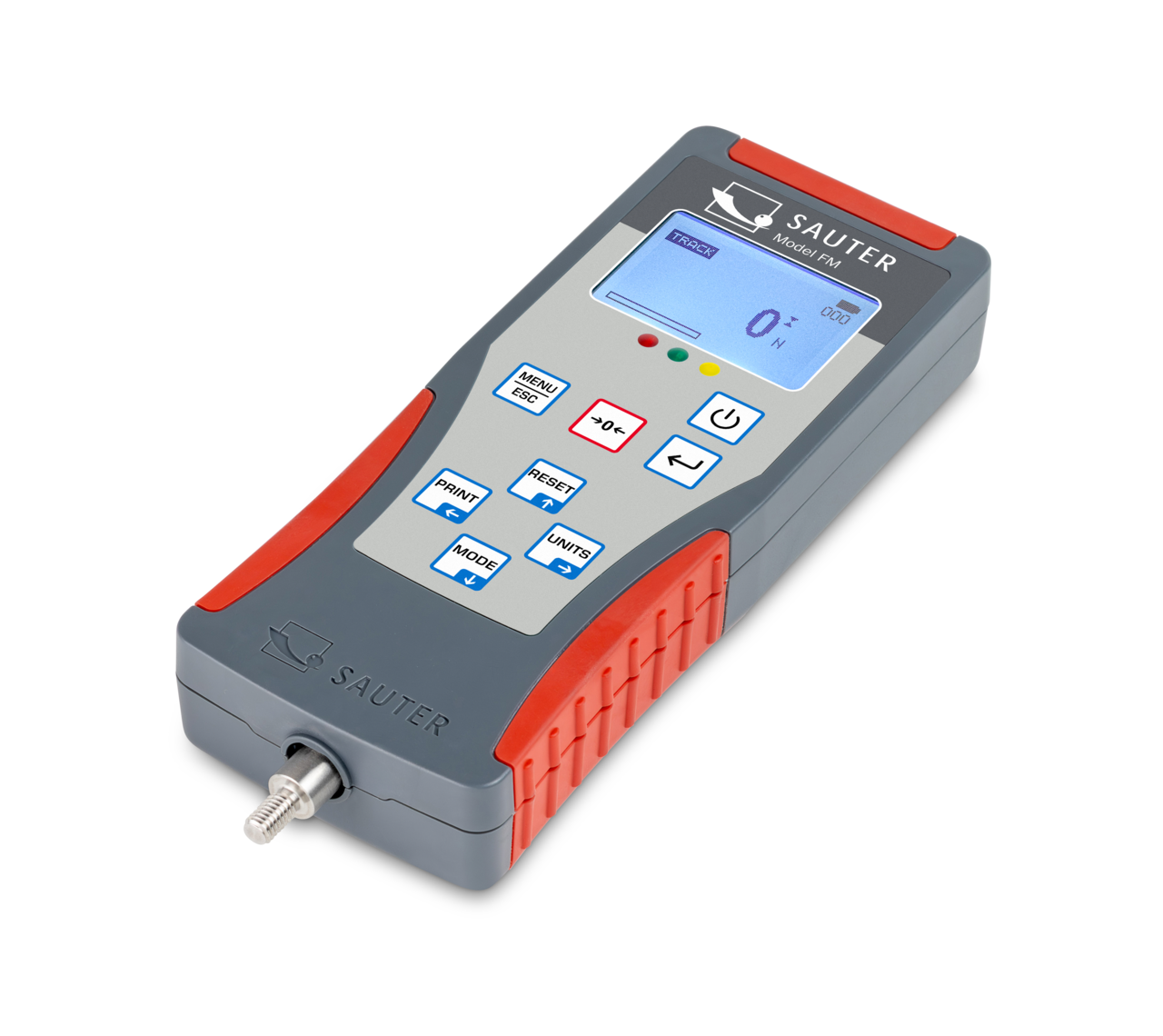

Sauter FM-S Force Gauge

Sauter FM-S Force Gauge

Sauter FM-S force gauges combine an integrated measuring cell with a graphic-assisted digital display for tensile and compressive testing. Peak-hold and track modes support maximum-force capture and continuous observation, while programmable limits provide clear guidance during repeated checks. The capacity indicator helps operators monitor the available measuring range throughout a test.

Internal storage for up to 500 readings supports organised result handling, with USB-C and PS/2 connections available for compatible data transfer and device coupling. The lower-capacity models can be used by hand or mounted on a suitable Sauter test stand, making the FM-S range a strong choice for component testing, product development and production quality control. Select the capacity, readability and attachments around the force level and sample geometry.

Model: FM 5

Model
Calibration Certificate: No

Calibration Certificate
Sale price£550.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Model FM 5 FM 5 FM 10 FM 10 FM 20 FM 20 FM 50 FM 50 FM 100 FM 100 FM 200 FM 200 FM 500 FM 500 FM 1K FM 1K
Measuring Range 5 N 5 N 10 N 10 N 20 N 20 N 50 N 50 N 100 N 100 N 200 N 200 N 500 N 500 N 1 kN 1 kN
Readability 0.002 N 0.002 N 0.005 N 0.005 N 0.01 N 0.01 N 0.02 N 0.02 N 0.05 N 0.05 N 0.1 N 0.1 N 0.2 N 0.2 N 0.5 N 0.5 N
Tolerance 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2% 0.2%
Peak Function Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Hold / Track Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode Track mode
Memory Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values Up to 500 values
Interfaces USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device USB-Device
Force Direction Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension Compression / Tension
Power Supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply Battery & Power supply

Learn more

Applications

Product Development

Track changing forces and capture peaks during prototype and component evaluations.

Production Quality Control

Programmable limits support repeated comparison checks on manufactured parts.

Test Stand Measurement

Use suitable lower-capacity models with compatible Sauter stands and fixtures.

Recorded Testing

Store results internally and transfer compatible data for further review.

Features

Integrated Measuring Cell

The sensor is built into the gauge for direct handheld or stand-mounted push/pull tests.

Graphic-Assisted Display

The screen supports clear viewing of live values, peak results, limits and remaining capacity.

500-Value Memory

Internal storage retains up to 500 readings for later review.

USB-C And PS/2

Standard connections support compatible data transfer and device coupling.
