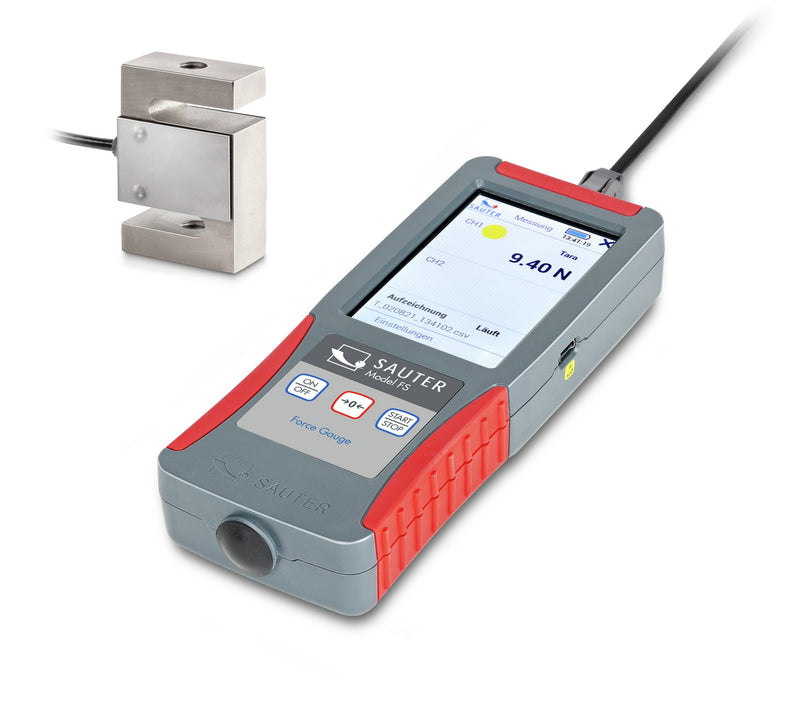

Sauter FS 2 force gauge set with 1 kN external load cell

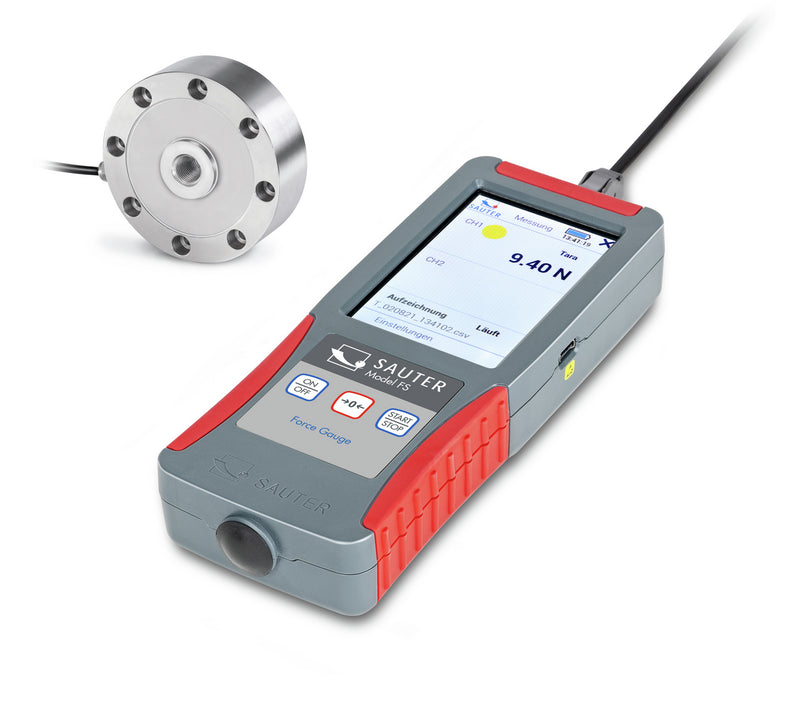

Sauter FS 2 force gauge set with 5 kN ring load cell

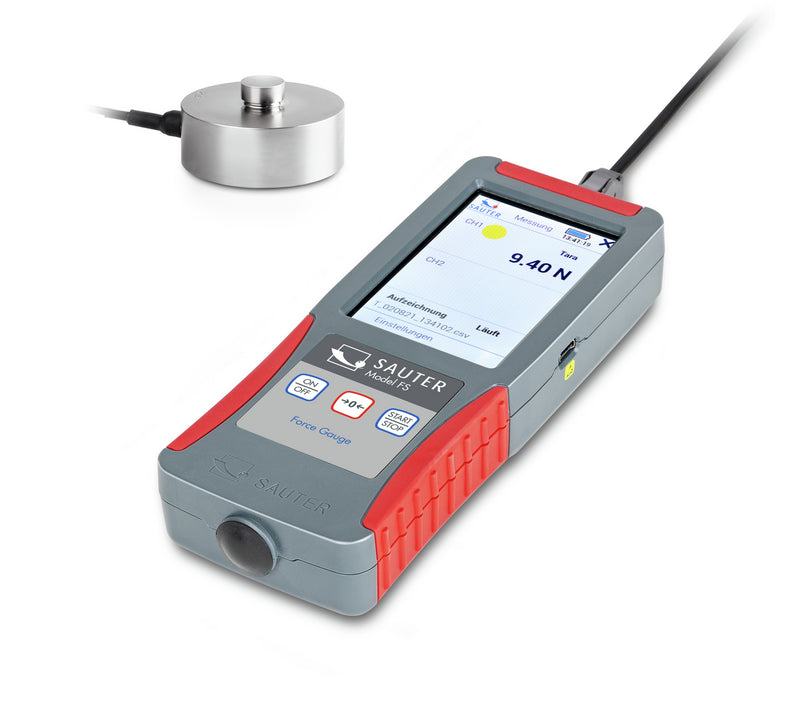

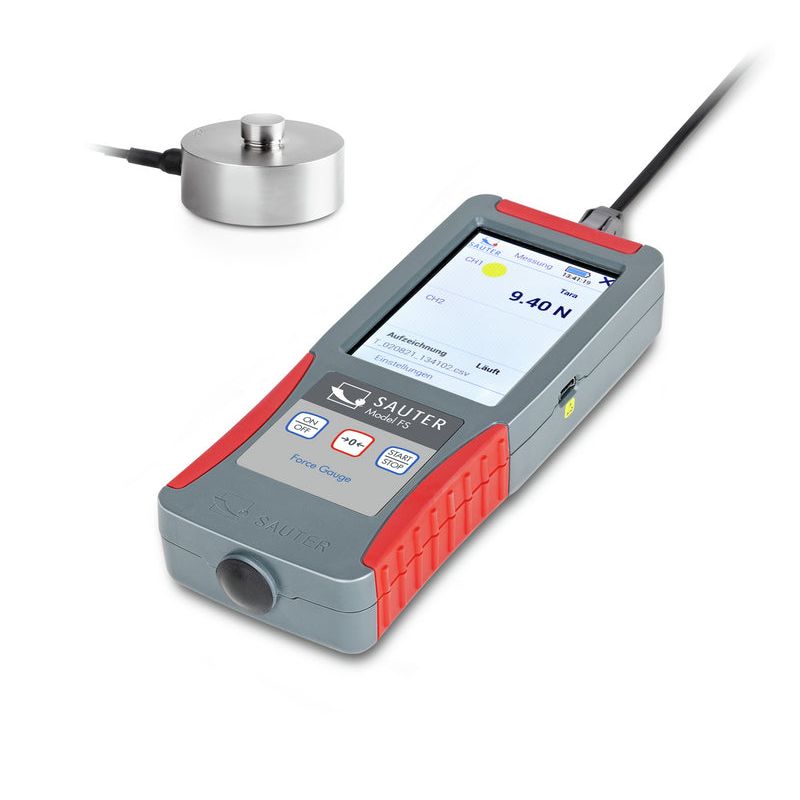

Sauter FS 2 force gauge set with 25 kN load cell

Sauter FS Force Gauge Set with External Load Cells

Each Sauter FS set combines the FS touchscreen display with a specified external load cell. It removes the uncertainty of matching the display and sensor separately, while still giving the operator a configurable force-measurement system for a test frame, production fixture or laboratory bench.

The available sets differ considerably. Capacities, load-cell shape, loading direction, mounting and IP protection all depend on the selected SKU. S-type cells can measure tension and compression, while other designs are intended for a particular direction or installation. The 3.5-inch touchscreen provides track, peak and tolerance functions, with internal storage and USB transfer for recorded results.

Start by choosing the required force direction and sensor format, then select a capacity that safely covers the expected maximum load. Check the variant data before ordering, particularly where mounting dimensions, environmental protection or a calibration option are important. For a complete measuring system, compare our Force Test Stands and confirm that the external load cell and fixtures are rated for the applied force.

View Accessories

Why is calibration important?

Quantity:

£1,587.30

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

Need Help? Ask a Question

View Technical Data Sheet (PDF)

Overview

Matched Sauter FS display and external load-cell sets for fixture-based force measurement across varied capacities.

Sauter Sauter FS Force Gauge Set with External Load Cells

£1,587.30

Learn more

Product specification

Compare model specifications.

Model	FS 2-100KRQ1	FS 2-25KRQ1	FS 2-50KRQ1	FS 2-100KRY1	FS 2-10KRY1	FS 2-200KRY1	FS 2-50KRY1	FS 2-5KRY1	FS 2-100KSP1	FS 2-10KSP1	FS 2-1KSP1	FS 2-20KSP1	FS 2-2KSP1	FS 2-50KSP1	FS 2-5KSP1	FS 2-20KOY1	FS 2-2KOY1	FS 2-500OY1	FS 2-5KOY1	FS 2-100OY2	FS 2-1KOY2	FS 2-500OY2
Measuring Range	100 kN	25 kN	50 kN	100 kN	10 kN	200 kN	50 kN	5 kN	100 kN	10 kN	1 kN	20 kN	2.5 kN	50 kN	5 kN	20 kN	2 kN	500 N	5 kN	100 N	1 kN	500 N
Readability	20 N	5 N	10 N	20 N	2 N	40 N	10 N	1 N	20 N	2 N	0.2 N	4 N	0.5 N	10 N	1 N	4 N	0.4 N	0.1 N	1 N	0.02 N	0.2 N	0.1 N
Peak Function	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Hold / Track	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode	Track mode
Memory	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Interfaces	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device	USB-Device
Force Direction	Compression	Compression	Compression	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression / Tension	Compression	Compression	Compression	Compression	Compression / Tension	Compression / Tension	Compression / Tension
Power Supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply	Battery & Power supply

Learn more

Applications

Fixture-Based Testing

Build the supplied cell into a fixture while keeping the display at a comfortable viewing height.

Tensile And Compression Tests

Choose an S-type cell when the same installation must measure both tension and compression.

Higher-Capacity Measurement

Measure loads beyond the capacity of typical handheld force gauges.

Recorded Results

Use stored readings to review a production run or a series of laboratory tests.

Features

Matched Gauge And Cell

The display and specified load cell arrive as a matched set, reducing the risk of ordering the wrong sensor family.

Multiple Cell Formats

Sensor shape, capacity and loading direction are defined by the selected SKU rather than being universal across the range.

Touchscreen Control

Peak, track and tolerance settings are reached directly from the 3.5-inch touchscreen.

Memory And USB

Save test results internally or pass them to a computer through the USB connection.

FAQs

Does every FS set use the same load cell?

No. The selected SKU defines the load-cell family, capacity, direction, mounting and environmental protection.

Can every set measure both tension and compression?

Not necessarily. Confirm the stated force direction for the load cell supplied with the selected set.

What IP rating does the load cell have?

IP protection varies by sensor family and model; refer to the selected variant's technical data.

Can an FS set be ordered calibrated?

Calibration options are available for suitable models; select the required option when ordering.
