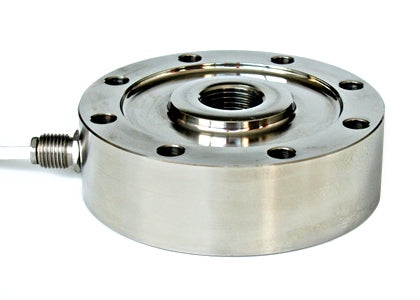

Laumas CL Compression & Tension Load Cell
56100
Laumas CL Compression & Tension Load Cell
56100
High-Capacity Compression/Tension Load Cell up to 200,000 kg
The Laumas CL Series delivers robust, bidirectional compression/tension load cells engineered for industrial-scale force measurement. Designed in 17-4 PH stainless steel with capacities ranging from 500 kg to 200,000 kg, the CL Series ensures long-term durability and precision. It offers a combined error of ≤ ±0.05%, IP68/IP67 protection, and optional redundant outputs for enhanced safety in critical applications.
Key Features
- Bidirectional Functionality: Handles both compression and tension loads
- High Accuracy: Combined error ≤ ±0.05%
- Capacity Range: 500 kg to 200,000 kg
- Material: 17-4 PH stainless steel
- Protection Rating: IP68 (≤60,000 kg), IP67 (>60,000 kg)
- Output Signal: 2 mV/V ±10%
- Optional: Dual output cables with redundant Wheatstone bridges (350 Ω)
Available Models
| Model | Capacity (kg) |
|---|---|
| CL500 | 500 kg |
| CL1000 | 1000 kg |
| CL2000 | 2000 kg |
| CL5000 | 5000 kg |
| CL10000 | 10000 kg |
| CL20000 | 20000 kg |
| CL30000 | 30000 kg |
| CL60000 | 60000 kg |
| CL100000 | 100000 kg |
| CL150000 | 150000 kg |
| CL200000 | 200000 kg |
Certifications on Request
- ATEX II 2GD – for explosive atmospheres (zone 1-21-22)
- IECEx – zone 1-21-22 compliant
- LAT Accredia calibration certificate – ISO 376 or ASTM E74 (1000 kg to 10,000 kg)
- Calibration report
