41800

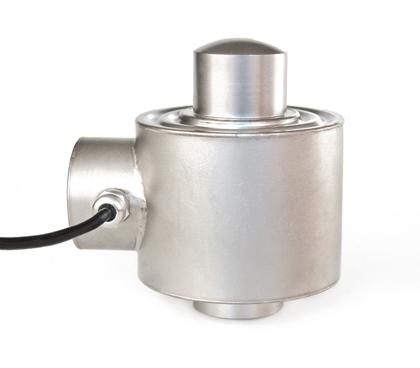

Heavy-Duty Column Load Cell – 25,000 kg Capacity

The Laumas CO Series is a rugged, high-capacity column load cell designed for weighing silos, tanks, and hoppers. With a rated capacity of 25,000 kg, this model is constructed from 17-4 PH stainless steel and features IP68 protection and lightning protection, ensuring performance in the harshest industrial environments. With OIML R60 C4 classification and low combined error (≤ ±0.017%), it provides precise and stable measurements under heavy loads.


Key Features

  • High Capacity: 25,000 kg
  • Material: 17-4 PH stainless steel
  • Protection: IP68 + lightning protection
  • Accuracy Class: OIML R60 C4
  • Combined Error: ≤ ±0.017%
  • Output Signal: 2 mV/V ±1%
  • Cable: 15 m, 4-core, Ø6 mm, 4 × 0.34 mm²

Available Model

Model Capacity (kg)
CO25000 25,000 kg

Certifications

  • OIML R60 C4 – Legal for trade
  • ATEX II 1G D (zone 0-1-2-21-22)
  • IECEx (zone 0-1-2-20-21-22)
  • FM HazLoc – United States & Canada (optional)
  • China and Russia legal-for-trade approvals
  • Calibration report available on request

Complementary Accessories

  • Anti-Rotation Kit: KITCO – Upper and lower steel plates with pin
  • Compression Plate: PLACO – Hardened 42SiCrMo4 steel with spherical seat

Downloads & Resources

Laumas CO Column Load Cell
41800
