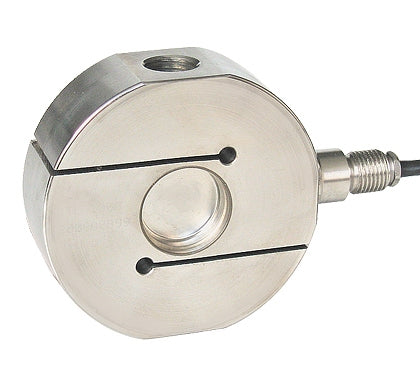

Laumas CTL Tension Load Cell

Laumas CTL Tension Load Cell Overview

The Laumas CTL Tension Load Cell is a stainless steel force measurement sensor designed for suspended weighing, hanging scales and industrial process applications. Suitable for both tension and compression measurement, it provides accurate and repeatable performance across a wide range of industrial weighing systems.

Its compact design, high accuracy and IP68/IP69K protection make it suitable for demanding environments where reliability and environmental resistance are important. The CTL integrates easily with weighing indicators, transmitters and industrial control systems.

Model: CTL100 - 100 Kg

Model
Calibration Certificate: No

Calibration Certificate
Sale price£281.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities
100 kg, 200 kg, 300 kg, 500 kg, 1,000 kg, 2,500 kg, 5,000 kg, 7,500 kg, 10,000 kg, 12,500 kg
Accuracy
C3 OIML R60, combined error ≤ ±0.02%
Material
17-4 PH stainless steel
Cable Length
10 m
Output Signal
2 mV/V ±0.1%
IP Rating
IP68 (IP69K)
Approvals
OIML R60, ATEX, IECEx, EAC, EAC Ex, PAC, UK NAWI, CPA, CE, UKCA, Ex NEPSI

Learn more

Applications

Suspended Weighing

Designed for suspended weighing applications where accurate load measurement and environmental protection are required.

Force Monitoring Systems

Suitable for force monitoring systems requiring accurate measurement of suspended or applied loads.

Suspended Load Monitoring

Supports suspended load monitoring applications used in lifting and handling equipment.

Load Monitoring Equipment

Suitable for load monitoring equipment used in lifting, handling and suspended weighing applications.

Features

Tank & Hopper Weighing

Ideal for tank weighing, hopper weighing and process control systems requiring dependable load measurement.

IP68/IP69K Protection

Suitable for harsh industrial and outdoor environments requiring high environmental protection.

Industrial Monitoring Applications

Suitable for force measurement, suspended weighing and industrial monitoring systems.

Industrial Process Control

Supports weighing, force measurement and industrial monitoring applications.
