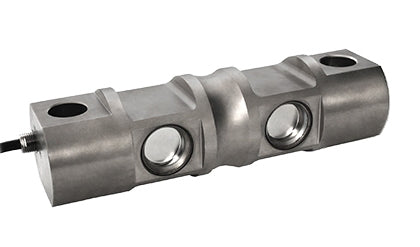

Laumas DTX Double Shear Beam Load Cell

Laumas DTX Double Shear Beam Load Cell Overview

The Laumas DTX Double Shear Beam Load Cell is a high-capacity industrial weighing sensor designed for demanding applications including weighbridges, silos, tanks and process weighing systems. Its double shear beam design provides excellent mechanical stability and reliable weight measurement where large loads must be monitored accurately.

Manufactured from nickel-plated alloy steel and protected to IP68 standards, the DTX is suitable for harsh industrial environments where durability and long-term performance are essential. It integrates seamlessly with weighing indicators, transmitters and junction boxes to create complete industrial weighing and process control systems.

Model: DTX20K - 20000 lbs / 9 tonnes

Calibration Certificate: No

Quantity:

£473.00

View Technical Data Sheet (PDF)

Laumas Laumas DTX Double Shear Beam Load Cell

£473.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

20 klb (9 t), 30 klb (13.6 t), 40 klb (18 t), 50 klb (23 t), 60 klb (27 t)

Accuracy

C3; combined error ≤ ±0.02%

Material

AISI 4340 nickel-plated steel

Cable Length

9 m

Output Signal

3.0 mV/V ±0.1%

IP Rating

IP68

Approvals

OIML R60 C3, EAC, UKCA, UK NAWI; ATEX, IECEx, EAC Ex, FM HazLoc, Ex NEPSI on request

Cable

9m, Ø5mm on 20klb, Ø8mm on 30klb to 60klb

IP Rating

IP68

Suitable For

Silos, Tanks, Process Vessels, Industrial Scale Weighing

Learn more

Applications

Weighbridge Weighing

Designed for weighbridge installations measuring heavy vehicles, bulk materials and industrial transport operations.

Silo Weighing

Provides accurate stock monitoring for silos used in agriculture, manufacturing and bulk material storage.

Tank Weighing

Suitable for tank weighing systems requiring accurate inventory visibility and process monitoring.

Bulk Material Handling

Supports bulk material handling operations where accurate load data assists inventory control and process planning.

Features

High-Capacity Weighing

Engineered for heavy-duty weighing applications where large loads and harsh environments are common.

IP68 Protection

Sealed against dust, moisture and washdown conditions commonly found in heavy industrial applications.

Heavy-Duty Alloy Steel Construction

Robust alloy steel construction provides strength and durability for demanding installations.

High Capacity Applications

Suitable for weighbridges, tanks and other high-capacity industrial weighing installations.

FAQs

What applications is the DTX load cell designed for?

The DTX load cell is designed for weighbridges, silos, tanks and heavy-duty industrial weighing systems requiring high-capacity load measurement.

What material is used in the DTX load cell construction?

The DTX is manufactured from high-strength alloy steel designed for demanding heavy-capacity weighing applications.

What environmental protection rating does the DTX load cell provide?

The DTX provides IP68 environmental protection for reliable operation in harsh industrial and outdoor environments.

Can the DTX load cell be integrated into existing weighbridge systems?

Yes, the DTX can be integrated into existing weighbridge systems when matched to the correct capacity and mounting arrangement.
