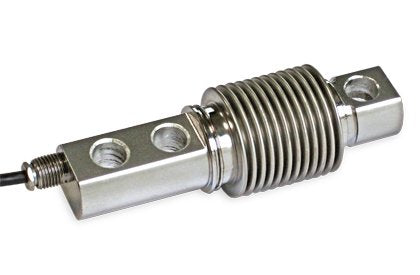

Laumas FCAX Shear Beam Load Cell
23100
Laumas FCAX Shear Beam Load Cell
23100
Stainless Steel Bending and Shear Beam Load Cell
The Laumas FCAX Series is a dual-purpose bending and shear beam load cell, offering dependable force measurement across low to mid-capacity applications from 30 kg to 1,500 kg. Constructed from AISI 420 stainless steel and rated IP68, it is ideal for environments where corrosion resistance and ingress protection are critical. The FCAX is suitable for tank weighing, hopper scales, industrial automation, and low-capacity tension/compression tasks.
Key Features
- Accuracy: Combined error ≤ ±0.02%
- Capacities: 30 kg, 50 kg, 75 kg, 150 kg, 300 kg, 500 kg, 750 kg, 1,000 kg, 1,500 kg
- Material: AISI 420 stainless steel for durability and corrosion resistance
- Protection Class: IP68 – complete protection against dust and water ingress
- Output Signal: 2 mV/V ±0.4%
- Cable: 5 m, 6-core, Ø5 mm, 6 × 0.22 mm²
- Mounting Kits Available: TFPV, T12, TFGP, TFAST, TFFSB
- Compact and Ribbed Design: Suited for dynamic applications
Available Models
| Model | Capacity (kg) |
|---|---|
| FCAX30 | 30 kg |
| FCAX50 | 50 kg |
| FCAX75 | 75 kg |
| FCAX150 | 150 kg |
| FCAX300 | 300 kg |
| FCAX500 | 500 kg |
| FCAX750 | 750 kg |
| FCAX1000 | 1,000 kg |
| FCAX1500 | 1,500 kg |
Certifications on Request
- ATEX II 1G – certified for potentially explosive atmospheres (zone 0/1/2/21/22)
- IECEx – global compliance for hazardous areas
- Accredia Traceable Calibration Certificates
