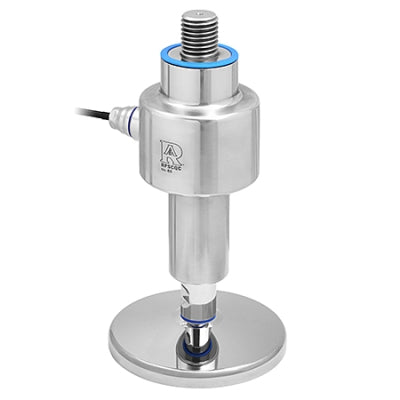

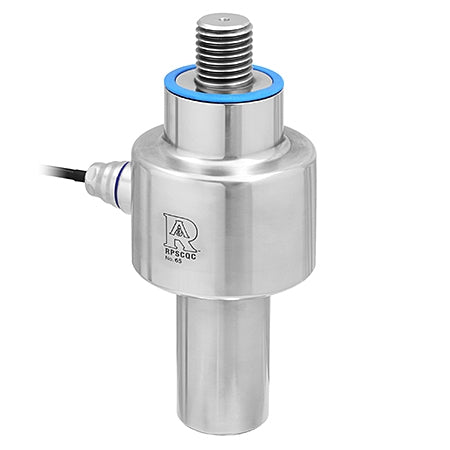

Hygienic Compression Load Cell – For Adjustable Feet (1,000 kg to 20,000 kg)

The Laumas FLC 3A Series is a hygienic compression load cell designed for use with adjustable feet in food and pharmaceutical applications. Manufactured from 17-4 PH stainless steel, it meets stringent hygienic standards and is 3-A SSI authorised for direct food contact. With IP69K protection, ±0.1% accuracy, and a built-in adjustable height range, this load cell is ideal for tanks, hoppers, weighing platforms, and hygienic production systems.


Key Features

  • Hygienic Design: Authorised 3-A SSI compliant for direct contact with food and pharma equipment
  • IP69K Protection: Fully sealed for washdown environments and aggressive cleaning cycles
  • High Precision: Combined error ≤ ±0.1% for accurate hygienic weighing
  • Stainless Steel: Built from 17-4 PH stainless steel – corrosion and chemical resistant
  • Rated Output: 2.0 mV/V ±0.1% – stable, consistent analogue signal
  • Height Adjustability: Up to 10 mm screw-out for levelling on hygienic foot bases
  • Temperature Range: Compensated from -10 °C to +50 °C, usable -20 °C to +70 °C
  • Safe Overload: 150% of full scale; ultimate overload 300%
  • Food-Grade Cable: Suitable for direct food zone use
  • CE, UKCA, and ATEX 3GD Options: Certified for hygienic and potentially explosive environments

Available Models

Model Capacity (kg) Thread
FLC3A-1000 1,000 kg M12
FLC3A-2000 2,000 kg M12
FLC3A-5000 5,000 kg M16
FLC3A-10000 10,000 kg M24
FLC3A-20000 20,000 kg M36

Certifications on Request

  • 3-A SSI Hygienic Authorisation – for sanitary design compliance in food and pharmaceutical use
  • ATEX II 3GD – explosion protection for dust and gas in zone 2/22 (food factories, bakeries, mixers)
  • LAT Accredia ISO 376 / ASTM E74 – calibration for legal-for-trade from 1,000 to 10,000 kg
