100mm All Stainless Steel Low Pressure Capsule Gauge

100mm All Stainless Steel Low Pressure Capsule Gauge

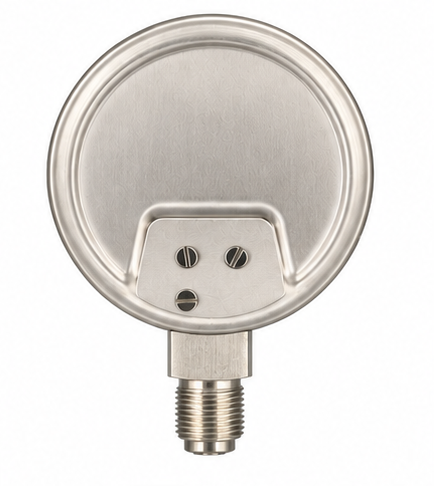

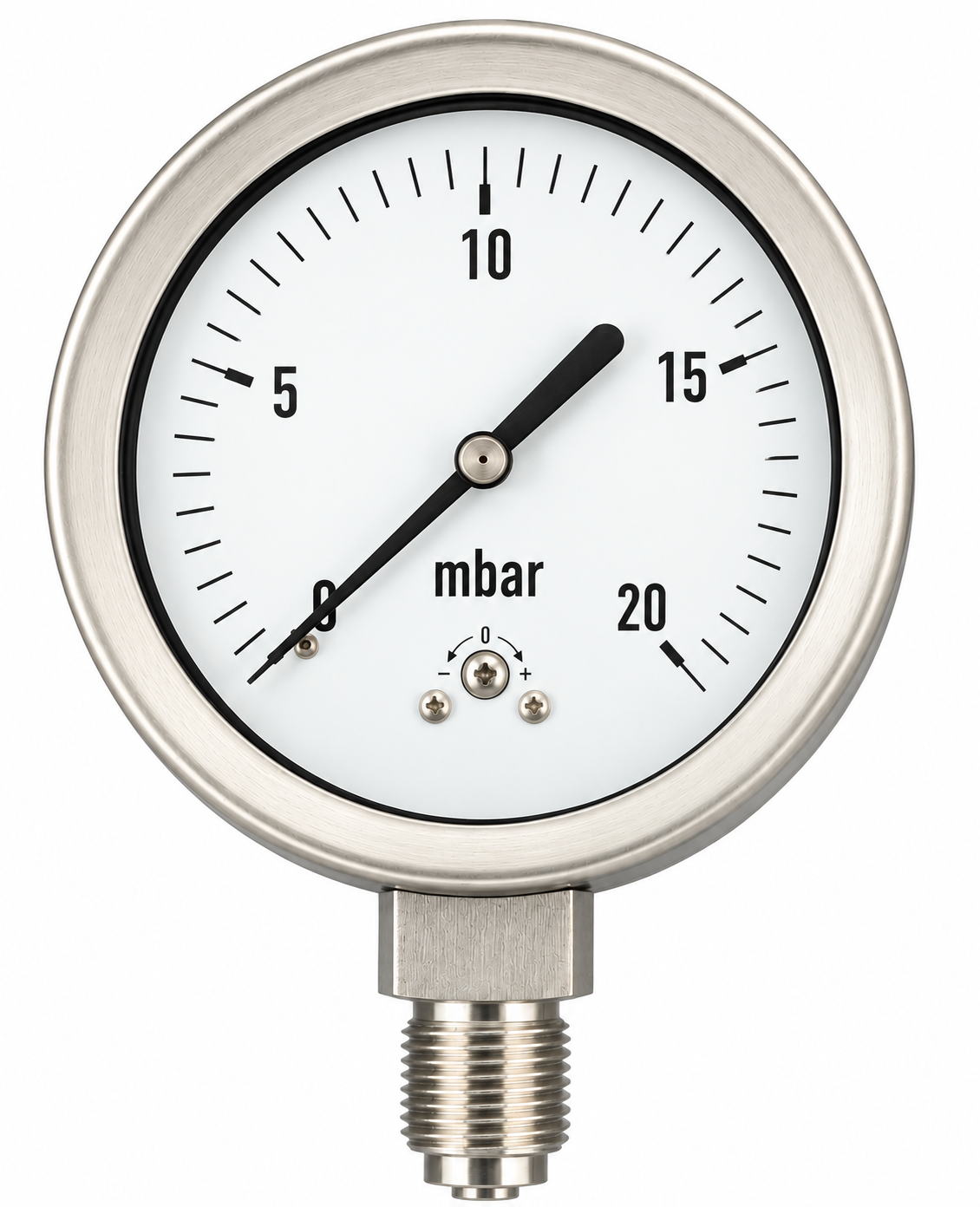

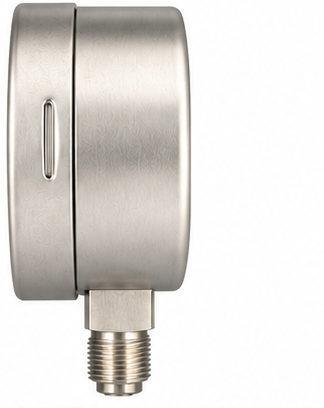

This low-pressure capsule gauge combines a 100 mm dial, all stainless steel construction and a 1/2" BSP bottom connection. It provides a local analogue pressure reading for suitable low-pressure installations.

The bottom-entry layout allows the gauge to sit upright above the process connection. Use it where a capsule measuring element and a clearly visible dial are required, with the pressure range selected to suit the system.

Check your application before ordering

Send GNW your normal and maximum operating pressure, preferred units, process medium and temperature. We can confirm the available range and suitability for your installation. Stainless steel construction alone does not establish compatibility with every medium.

View Accessories

Range: 0/20 mbar

Calibration Certificate: No

Quantity:

£149.80

Tax excluded. Shipping calculated at checkout

GNW Instrumentation 100mm All Stainless Steel Low Pressure Capsule Gauge

£149.80

Learn More

Technical Specification

Dial size

100 mm

Gauge type

Low-pressure capsule gauge

Construction

All stainless steel

Process connection

1/2" BSP

Connection position

Bottom entry

Learn more

Applications

Ventilation pressure checks

Monitor low air pressure at a suitable duct or ventilation-system tapping point. Match the gauge range to the pressure being measured.

Low-pressure air systems

Provide a local pressure reading on compatible low-pressure air lines and equipment during routine operation and adjustment.

OEM equipment and test assemblies

Incorporate an analogue pressure indication into equipment requiring a 100 mm capsule gauge with a bottom-entry connection.

Maintenance and commissioning

Check pressure at suitable test points when setting up or investigating a low-pressure system. Confirm the required range and measurement accuracy for the task.

Features

Low-pressure capsule measurement

A capsule sensing element provides local indication of low pressure. Select the measuring range to suit the normal operating pressure and the maximum pressure the system can reach.

100 mm dial

The 100 mm dial provides a clear analogue reading at the installation, helping operators check pressure during operation, adjustment and maintenance.

All stainless steel construction

All stainless steel construction suits installations where material choice matters. Confirm compatibility with the process medium and operating conditions before specifying the gauge.

1/2" BSP bottom connection

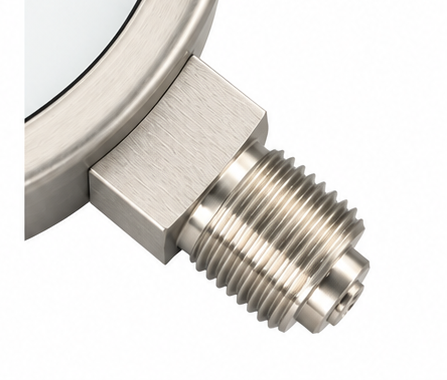

The bottom-entry 1/2" BSP process connection allows the gauge to stand upright above a suitable connection point. Check the mating thread, sealing arrangement and available clearance before installation.

FAQs

What is a capsule pressure gauge used for?

A capsule pressure gauge measures low pressure using a sensitive capsule element. This model provides a local analogue reading; the selected range must suit the installation and its maximum operating pressure.

What connection does this gauge have?

It has a 1/2" BSP bottom connection. The connection enters beneath the dial, allowing the gauge to sit upright above a suitable process connection. Check the mating thread and sealing arrangement before fitting.

Which pressure range should I choose?

Tell GNW the normal operating pressure, maximum possible pressure and preferred units. We can help identify a suitable range and confirm availability before you order.

Can this gauge measure pressure drop across a filter?

This is a single-connection pressure gauge, not a differential pressure gauge. It measures pressure at one point. If you need to measure the difference across a filter, contact GNW about a suitable differential instrument.

Need more help? Contact our sales team.
