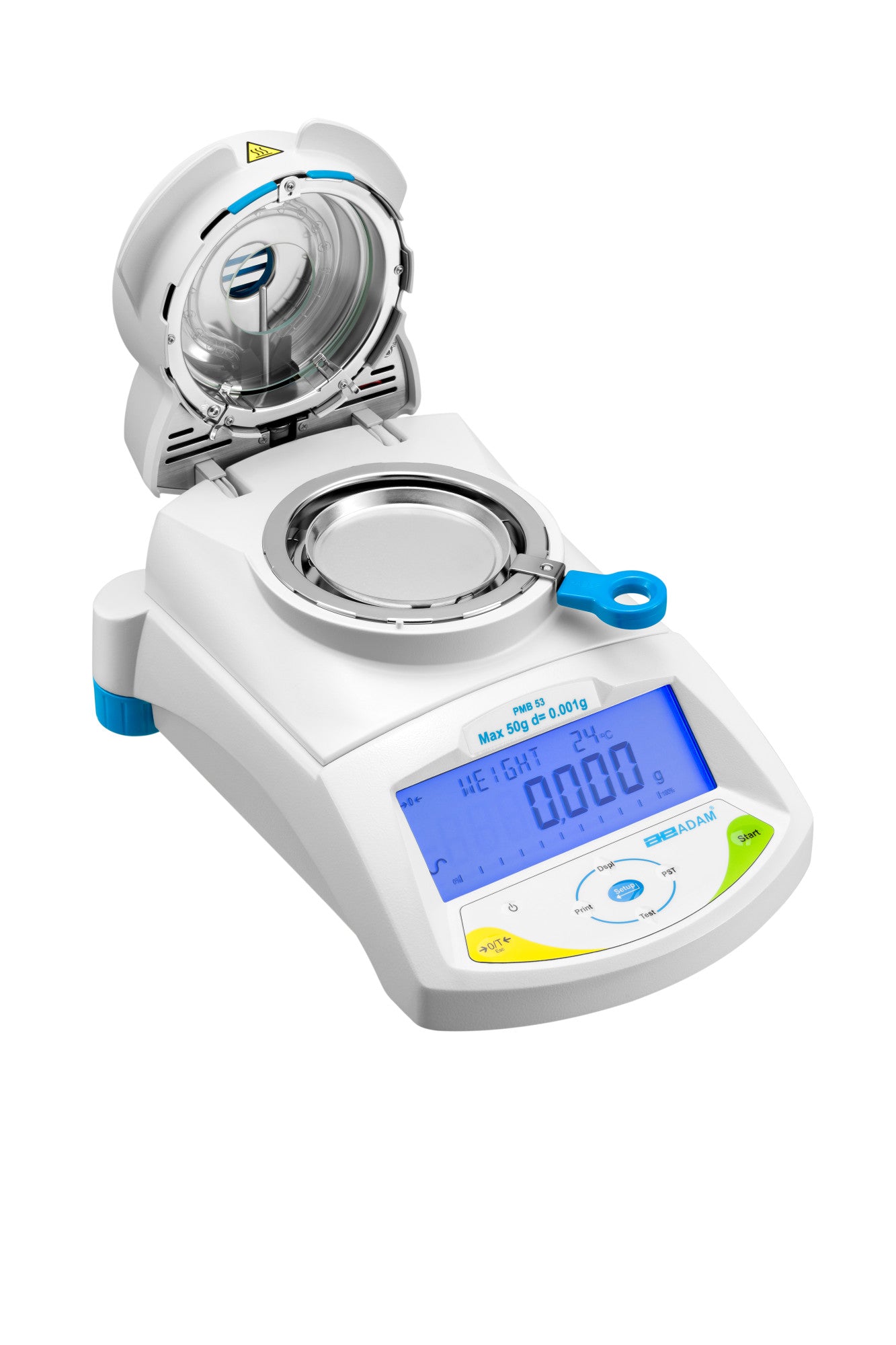

Adam Equipment PMB Moisture Analyser

The Adam Equipment PMB 53 moisture analyser combines a 50 g capacity with 0.001 g weighing readability and 0.01% moisture readability. Halogen drying measures the loss in sample weight, with results available as moisture content, solids content and ATRO values.

A backlit LCD with 24 mm digits shows measurements clearly, while external weight calibration supports routine checking of the weighing function. RS232 and USB interfaces provide connections to compatible equipment, and a USB host connection allows test programmes and data to be stored on a flash drive. The die-cast aluminium housing and 100 mm sample pan suit regular bench use.

Model: PMB 53

Calibration Certificate: No

Quantity:

£1,431.90

Tax excluded. Shipping calculated at checkout

View Technical Data Sheet (PDF)

Adam Equipment Adam Equipment PMB Moisture Analyser

£1,431.90

Learn more

Product specification

Compare model specifications.

Model	PMB 53
Capacity	50 g
Readability	0.001 g / 0.01%
Repeatability	0.001 g
Linearity	0.002 g
Platform Size	100 mm
Units	g, %M, %S, ATRO %M, ATRO %S

Learn more

Applications

Prepared Ingredient Checks

Assess moisture loss in suitable food or ingredient samples using an established drying procedure.

Agricultural Sample Testing

Compare prepared grain, seed or other suitable agricultural samples where heat-based moisture testing is appropriate.

Solids Content Determination

Measure the material remaining after drying and display solids or ATRO values as required.

Laboratory Test Records

Transfer results or save data to a flash drive for review alongside sample and batch records.

Features

50 g Capacity and 0.001 g Readability

The PMB 53 measures sample weight in 0.001 g increments and displays moisture results to 0.01%.

Moisture, Solids and ATRO Results

Selectable result formats allow measurements to be reported on the basis required by the material test procedure.

USB Data and Programme Storage

USB and RS232 communication support compatible equipment, with flash-drive storage for test programmes and measurement data.

Clear Display and Metal Housing

A backlit LCD with 24 mm digits provides readable results, while the die-cast aluminium housing supports regular bench use.

FAQs

Which PMB model is listed here?

This product is the PMB 53, with 50 g capacity, 0.001 g weighing readability and 0.01% moisture readability.

Can data be saved to a USB flash drive?

Yes. The USB host connection supports storage of test programmes and measurement data on a flash drive.

How is the weighing function calibrated?

The PMB 53 uses external weight calibration with a suitable calibration weight.

Does the analyser measure water only?

It measures weight lost during heating. Other volatile substances may also be lost, so sample suitability and the drying method must be checked.
